Garage door parts can be shipped direct to you. Lock Surgeon's garage door parts service counter technicians can help advise you on the correct garage door part to complete your garage door repair. Lock Surgeon's easy to use E-commerce site and this webpage has an excellent display of common garage door parts.
You can view a large variety of the garage door parts available on this page and call to discuss your needs with one of our shop garage door parts service counter technicians. It is possible to communicate with the garage door parts service counter technicians by texting pictures using that technician's Direct phone number. This will help confirm the part that you may require and confirm that you are being sent the correct garage door part to meet your needs.
Going forward you can shop the E-commerce garage door site 24hrs a day. Placing your order and having the garage door parts shipped as needed. Shop the garage door E-commerce parts site independently by clicking the above red "Click here to order online" button. You may also click the above yellow "Complete Product Listing" link to view an extensive catalogue of garage door and door security available to ship.

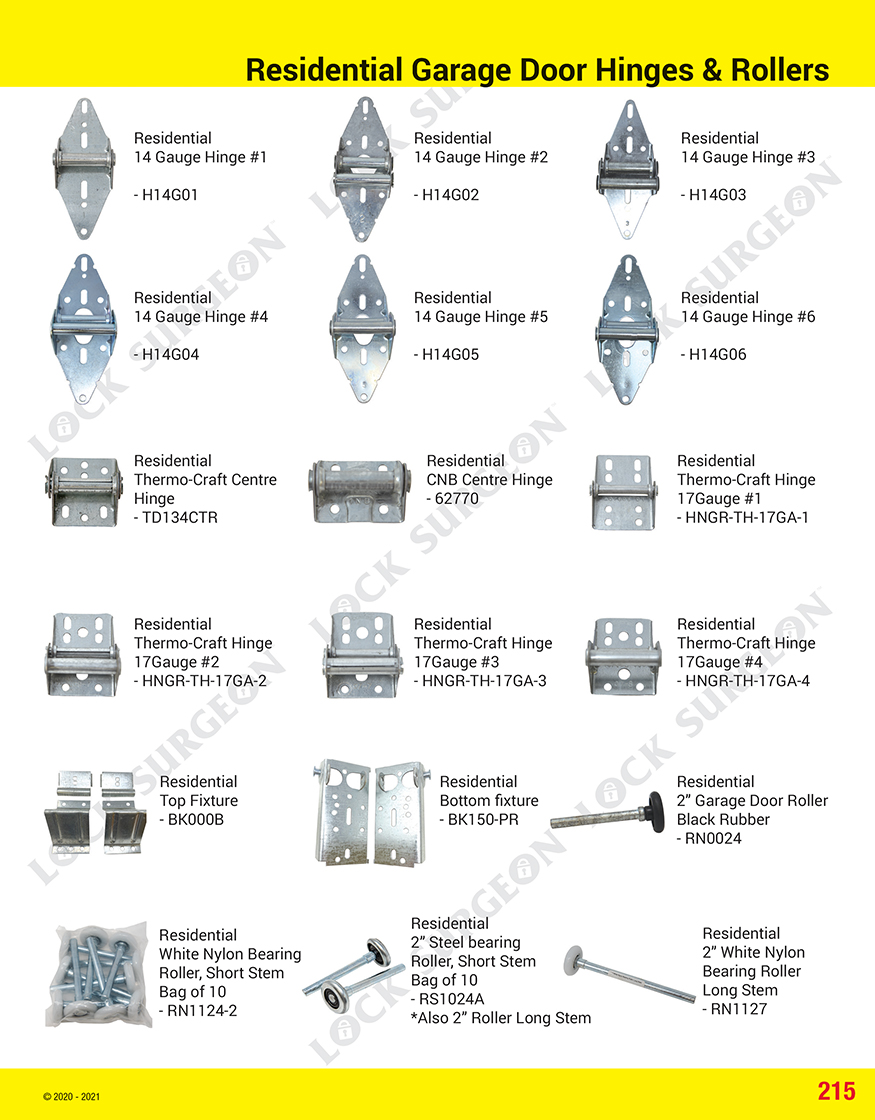

Residential Garage Door Hinges & Rollers
Lock Surgeon has a large variety of residential garage door hinges to meet your garage door part needs.
RESIDENTIAL GARAGE DOOR PARTS
- Residential - 14 Gauge Hinge #1 - H14G01.
- Residential - 14 Gauge Hinge #2 - H14G02.
- Residential - 14 Gauge Hinge #3 - H14G03.
- Residential - 14 Gauge Hinge #4 - H14G04.
- Residential - 14 Gauge Hinge #5 - H14G05.
- Residential - 14 Gauge Hinge #6 - H14G06.
- Residential - Thermacraft Centre Hinge - TD134CTR.
- Residential - CNB Centre Hinge - 62770.
- Residential - Thermacraft Hinge - 17Gauge #1 - HNGR-TH-17GA-1.
- Residential - Thermacraft Hinge - 17Gauge #2 - HNGR-TH-17GA-2.
- Residential - Thermacraft Hinge - 17Gauge #3 - HNGR-TH-17GA-3.
- Residential - Thermacraft Hinge - 17Gauge #4 - HNGR-TH-17GA-4.
- Residential - Top Fixture - BK000B.
- Residential - Bottom fixture - BK150-PR.
- Residential - 2” Garage Door Roller - Black Rubber - RN0024.
- Residential - White Nylon Bearing - Roller, Short Stem - Bag of 10 - RN1124-2.
- Residential - 2” Steel bearing - Roller, Short Stem - Bag of 10 - RS1024A *Also 2” Roller Long Stem.
- Residential - 2” White Nylon - Bearing Roller - Long Stem - RN1127.

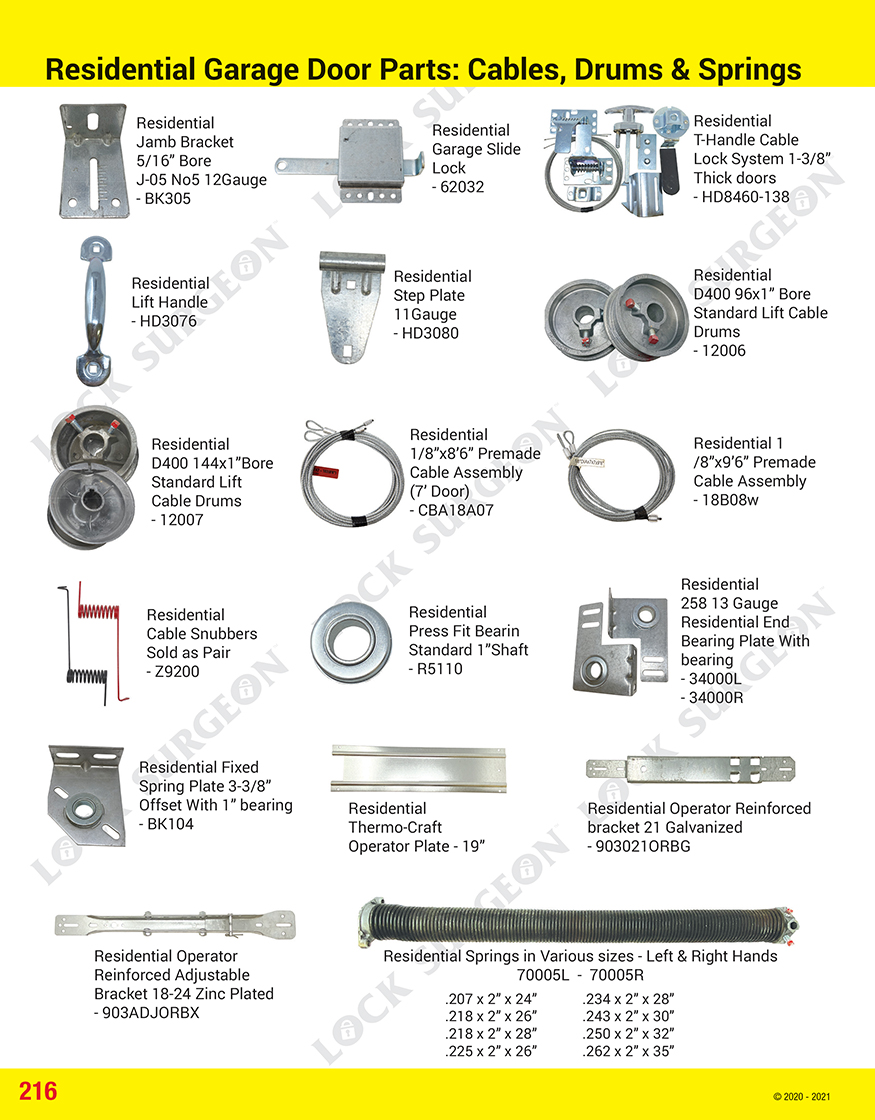

Residential Garage Door Parts: Cables, Drums & Springs
Garage door parts are specific to their application ensure you take the time to identify the specific garage door part needed.
RESIDENTIAL PARTS
- Residential - Jamb Bracket 5/16” - Bore - J-05 No5 12Gauge - BK305.
- Residential - Garage Slide Lock - 62032.
- Residential - T-Handle Cable Lock System 1-3/8” Thick doors - HD8460-138.
- Residential - Lift Handle - HD3076.
- Residential - Step Plate - 11Gauge - HD3080.
- Residential - 1/8”x8’6” Premade Cable Assembly (7’ Door) - CBA18A07.
- Residential - 1/8”x9’6” Premade Cable Assembly - 18B08w.

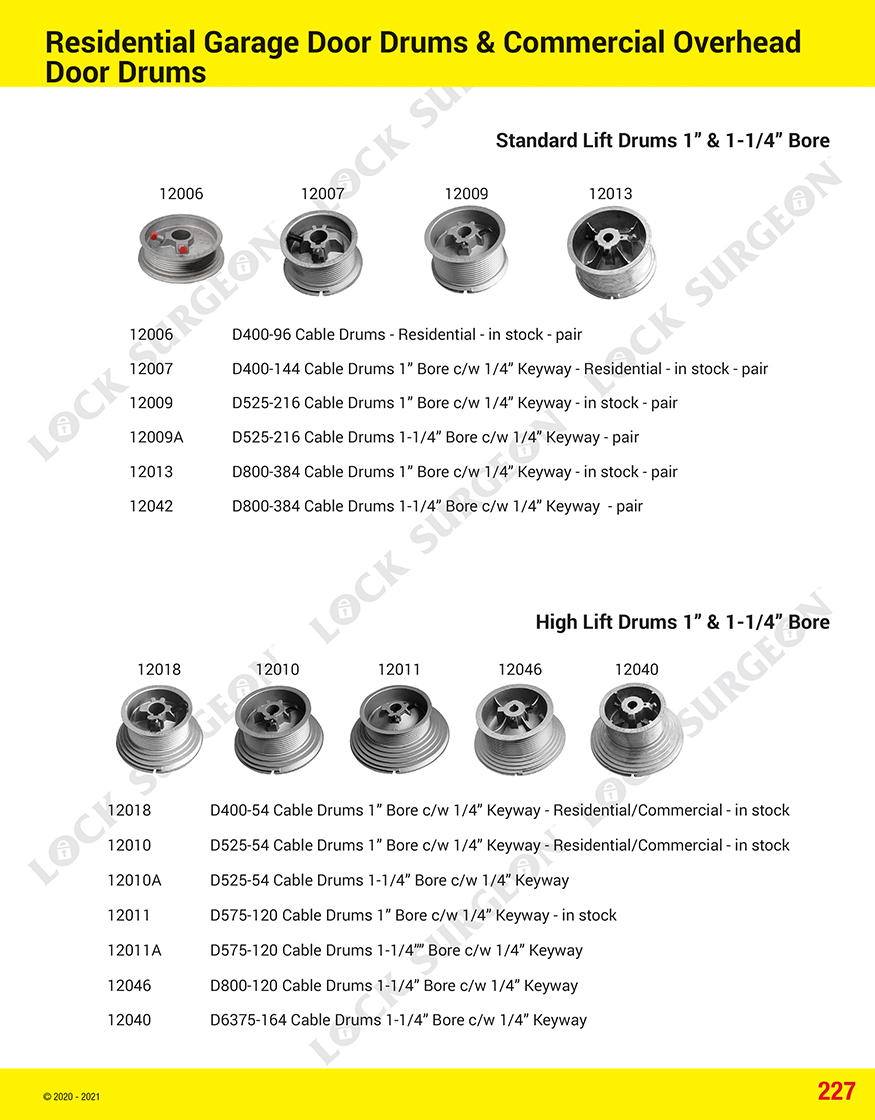

- Residential - D400 96x1” Bore - Standard Lift Cable Drums - 12006.
- Residential - D400 144x1”Bore - Standard Lift Cable Drums - 12007.
- Residential - Press Fit Bearing Standard 1”Shaft - R5110.
- Residential - Fixed Spring Plate 3-3/8” Offset With 1” bearing - BK104.
- Residential - 258 13 Gauge - End Bearing Plate With bearing - 34000L - 34000R.
- Residential -Cable Snubbers - Sold as Pair - Z9200.
- Residential - ThermoCraft - Operator Plate - 19”
- Residential - Operator Reinforced bracket 21 Galvanized - 903021ORBG.
- Residential - Operator Reinforced Adjustable Bracket 18-24 Zinc Plated - 903ADJORBX.
- Residential Springs in Various sizes - Left & Right Hands:
- .207 x 2” x 24”.
- .234 x 2” x 28”.
- .218 x 2” x 26”.
- .243 x 2” x 30”.
- .218 x 2” x 28”.
- .250 x 2” x 32”.
- .225 x 2” x 26”.
- .262 x 2” x 35”.

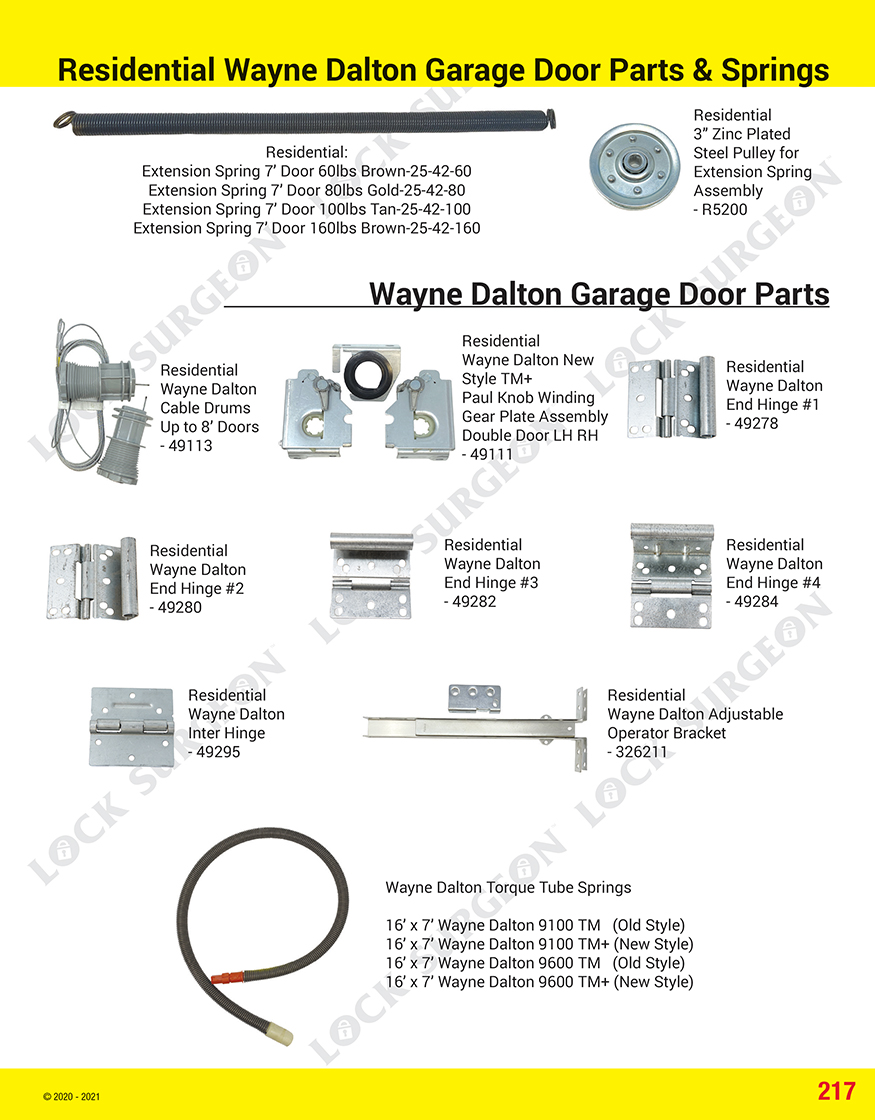

Residential Wayne Dalton Garage Door Parts & Springs
Lock Surgeon has a stock of the Wayne Dalton garage door parts.
RESIDENTIAL PARTS
RESIDENTIAL EXTENSION SPRINGS:
- Extension Spring 7’ Door 60lbs Brown-25-42-60.
- Extension Spring 7’ Door 80lbs Gold-25-42-80.
- Extension Spring 7’ Door 100lbs Tan-25-42-100.
- Extension Spring 7’ Door 160lbs Brown-25-42-160.
- Residential - 3” Zinc Plated Steel Pulley for Extension Spring Assembly - R5200.
- Residential - Wayne Dalton - New Style TM+ Paul Knob Winding Gear Plate Assembly Double Door LH RH - 49111.
- Residential - Wayne Dalton - Cable Drums Up to 8’ Doors - 49113.
- Residential - Wayne Dalton - End Hinge #1 - 49278.
- Residential - Wayne Dalton - End Hinge #2 - 49280.
- Residential - Wayne Dalton - End Hinge #3 - 49282.
- Residential - Wayne Dalton - End Hinge #4 - 49284.
- Residential - Wayne Dalton - Inter Hinge - 49295.
- Residential - Wayne Dalton - Adjustable Operator Bracket (Torque Tube Doors) - 326211.
RESIDENTIAL - WAYNE DALTON TORQUE TUBE SPRINGS:
- 16’ x 7’ Wayne Dalton LS9100 TM (Old Style) - 314456.
- 16’ x 7’ Wayne Dalton LS9100 TM+ (New Style) - 314986.
- 16’ x 7’ Wayne Dalton LS9600 TM (Old Style) - 314440.
- 16’ x 7’ Wayne Dalton LS9600 TM+ (New Style) - 314970.
Commercial Overhead Garage Door Hinges
Lock Surgeon carries a large variety of commercial garage door parts.
COMMERCIAL PARTS
- Commercial - 11Gauge Hinge #1 - H11G01.
- Commercial - 11Gauge Hinge #2 - H11G02.
- Commercial - 11Gauge Hinge #3 - H11G03.
- Commercial - 11Gauge Hinge #4 - H11G04.
- Commercial - 11Gauge Hinge #5 - H11G05.
- Commercial - 11Gauge Hinge #6 - H11G06.
- Commercial - 11Gauge Hinge #7 - H11G07.
- Commercial - 11Gauge Hinge #8 - H11G08.
- Commercial - 11Gauge Hinge #9 - H11G09.
- Commercial - 11Gauge hinge #10 - H11G10.
- Commercial - 11Gauge hinge #11 - H11G11.
- Commercial - 11Gauge hinge #12 - H11G12.
- Commercial - CNB Centre Hinge - 62770.
- Commercial - NB #1 Roller Bracket - 62770.
- Commercial - NB #2 Roller Bracket - 62774.
- Commercial - NA #3 Roller Bracket - 62700.
- Commercial - NA #4 Roller Bracket - 62702.
- Commercial - NA #5 Roller Bracket - 62704.

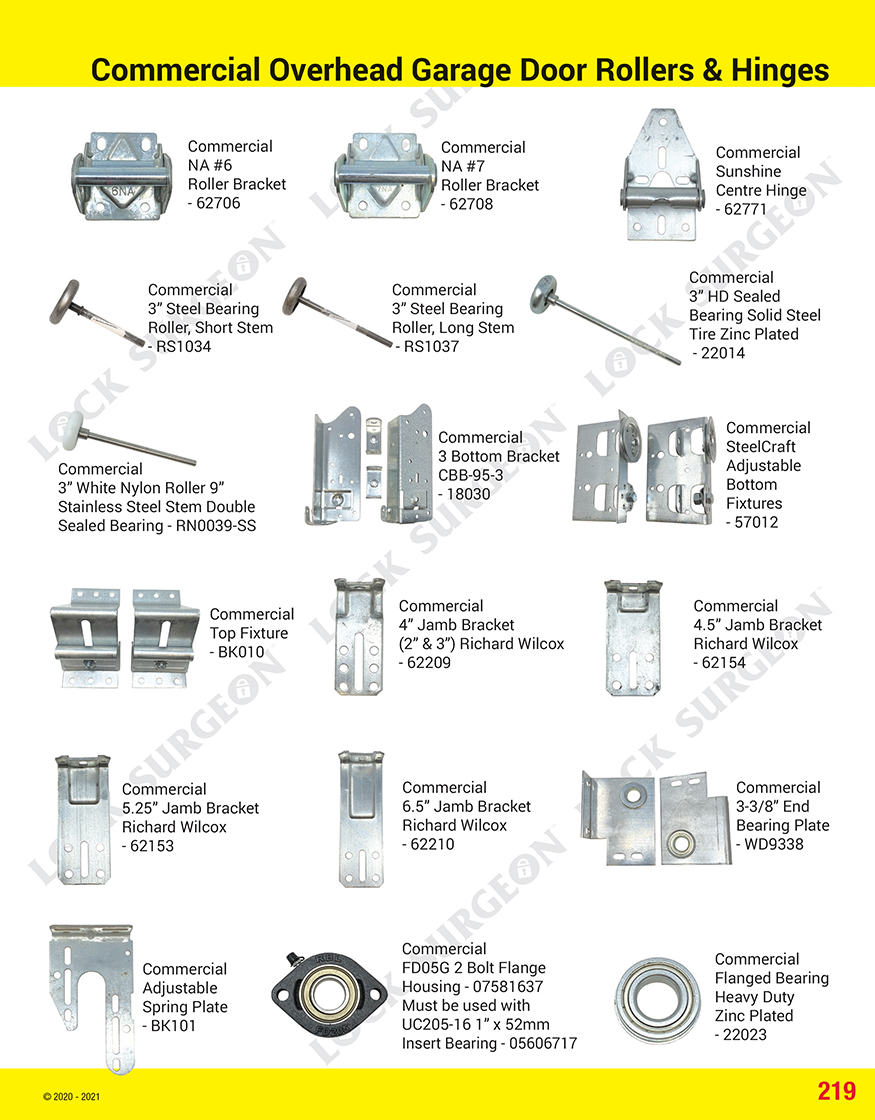

Commercial Overhead Garage Door Rollers & Hinges
Commercial overhead garage door parts are of heavier gauge and often larger in size than residential garage door parts.
COMMERCIAL PARTS
- Commercial - NA #6 Roller Bracket - 62706.
- Commercial - NA #7 Roller Bracket - 62708.
- Commercial - Sunshine Centre Hinge - 62771.
- Commercial - 3” Steel Bearing Roller, Short Stem - RS1034.
- Commercial - 3” Steel Bearing Roller, Long Stem - RS1037.
- Commercial - 3” HD Sealed Bearing Solid Steel Tire Zinc Plated - 22014.
- Commercial - 3” White Nylon Roller 9” Stainless Steel Stem Double Sealed Bearing - RN0039-SS.
- Commercial - 3 Bottom Bracket CBB-95-3 - 18030.
- Commercial - Steelcraft Adjustable Bottom Fixtures - 57012.
- Commercial - Top Fixture - BK010.
- Commercial - 4” Jamb Bracket (2” & 3”) Richard Wilcox - 62209.
- Commercial - 4.5” Jamb Bracket Richard Wilcox - 62154.
- Commercial - 5.25” Jamb Bracket Richard Wilcox - 62153.
- Commercial - 6.5” Jamb Bracket Richard Wilcox - 62210.
- Commercial - 3-3/8” End Bearing Plate - WD9338.
- Commercial - Adjustable Spring Plate - BK101.
- Commercial - FD05G 2 Bolt Flange Housing - 07581637 *must be used with UC205-16 1” x 52mm Insert Bearing - 05606717.
- Commercial - Flanged Bearing Heavy Duty Zinc Plated - 22023.

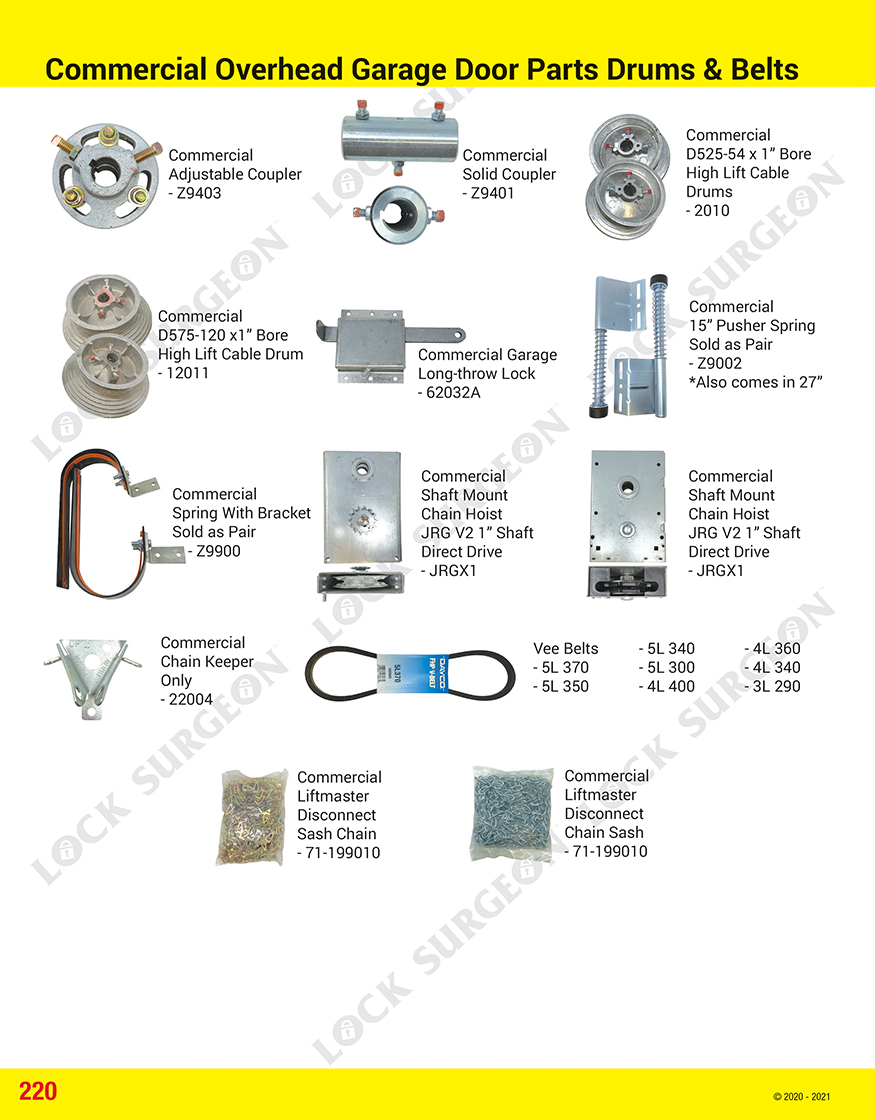

Commercial Overhead Garage Door Parts Drums & Belts
COMMERCIAL PARTS
- Commercial - Adjustable Coupler - Z9403.
- Commercial - Solid Coupler - Z9401.
- Commercial - D525-54 x 1” Bore High Lift Cable Drums - 2010.
- Commercial - D575-120 x 1” Bore High Lift Cable Drum - 12011.
- Commercial - Garage Long-throw Lock - 62032A.
- Commercial - 15” Pusher Spring - Sold as Pair - Z9002 *Also comes in 27”.
- Commercial - Spring With Bracket - Sold as Pair - Z9900.
- Commercial - Shaft Mount Chain Hoist - JRG V2 1” Shaft Direct Drive - JRGX1.
- Commercial - Chain Keeper Only - 22004.
VEE BELTS:
- 5L 370 - 5L 350 - 5L 340 - 5L 300.
- 4L 400 - 4L 360 - 4L 340 - 3L 290.
- Commercial - Liftmaster Disconnect Sash Chain - 71-199010.

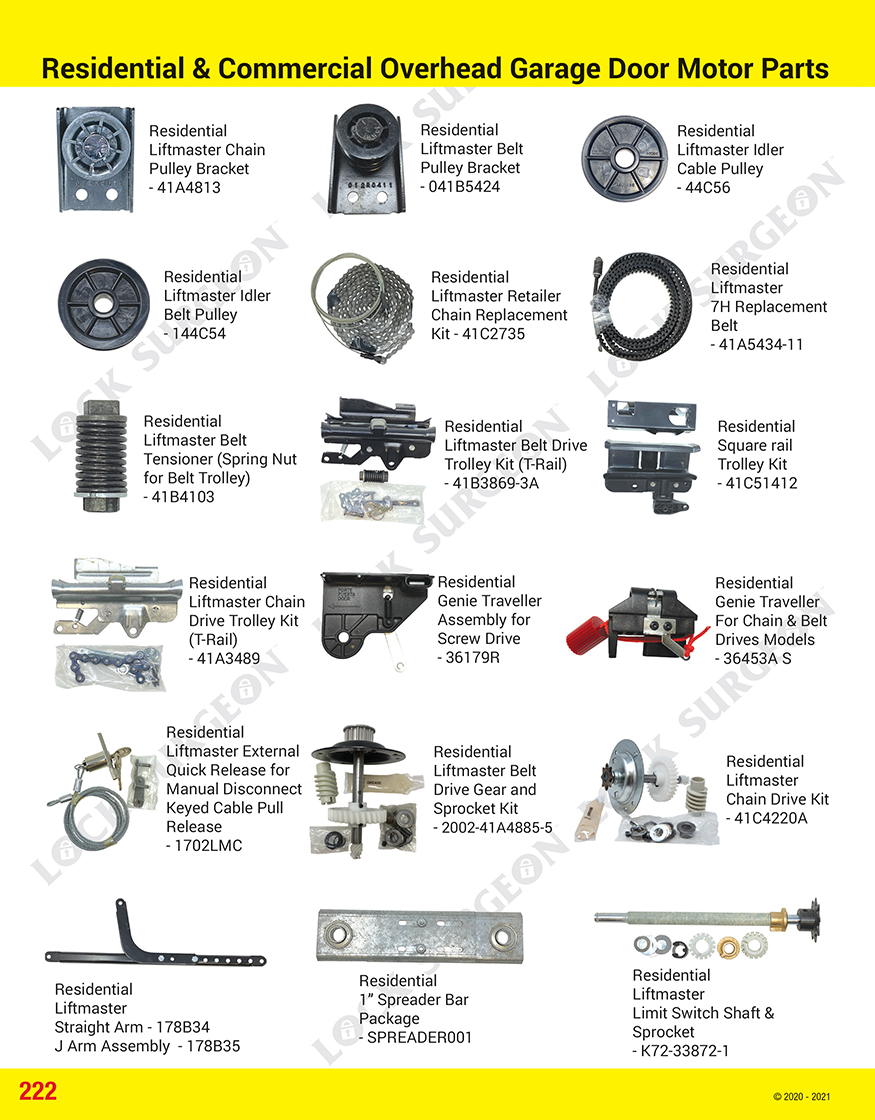

Residential & Commercial Overhead Garage Door Motor Parts
Garage door motor parts are available to meet common wear items. Garage door motor parts are specific to the garage door operator, ensure that you review the garage door parts diagram before ordering.
RESIDENTIAL MOTOR PARTS
- Residential - Liftmaster Chain Pulley Bracket - 41A4813.
- Residential - Liftmaster Belt Pulley Bracket - 041B5424.
- Residential - Liftmaster Idler Cable Pulley - 44C56.
- Residential - Liftmaster Idler Belt Pulley - 144C54.
- Residential - Liftmaster Retailer Chain Replacement Kit - 41C2735.
- Residential - Liftmaster 7H Replacement Belt - 41A5434-11.
- Residential - Liftmaster Belt Tensioner (Spring Nut for Belt Trolley) - 41B4103.
- Residential - Liftmaster Belt Drive Trolley Kit (T-Rail) - 41B3869-3A.
- Residential - Square rail Trolley Kit - 41C51412.
- Residential - Liftmaster Chain Drive Trolley Kit (T-Rail) - 41A3489.
- Residential - Genie Traveller Assembly for Screw Drive - 36179R.
- Residential - Genie Traveller for Chain & Belt Drives Models - 36453A S.
- Residential - Liftmaster External Quick Release for Manual Disconnect Keyed Cable Pull Release - 1702LMC.
- Residential - Liftmaster Belt Drive Gear and Sprocket Kit - 2002-41A4885-5.
- Residential - Liftmaster Chain Drive Kit - 41C4220A.
- Residential - Liftmaster Straight Arm - 178B34 - J Arm Assembly - 178B35.
- Residential - 1” Spreader Bar Package - SPREADER001.
- Residential - Liftmaster Limit Switch Shaft & Sprocket - K72-33872-1.

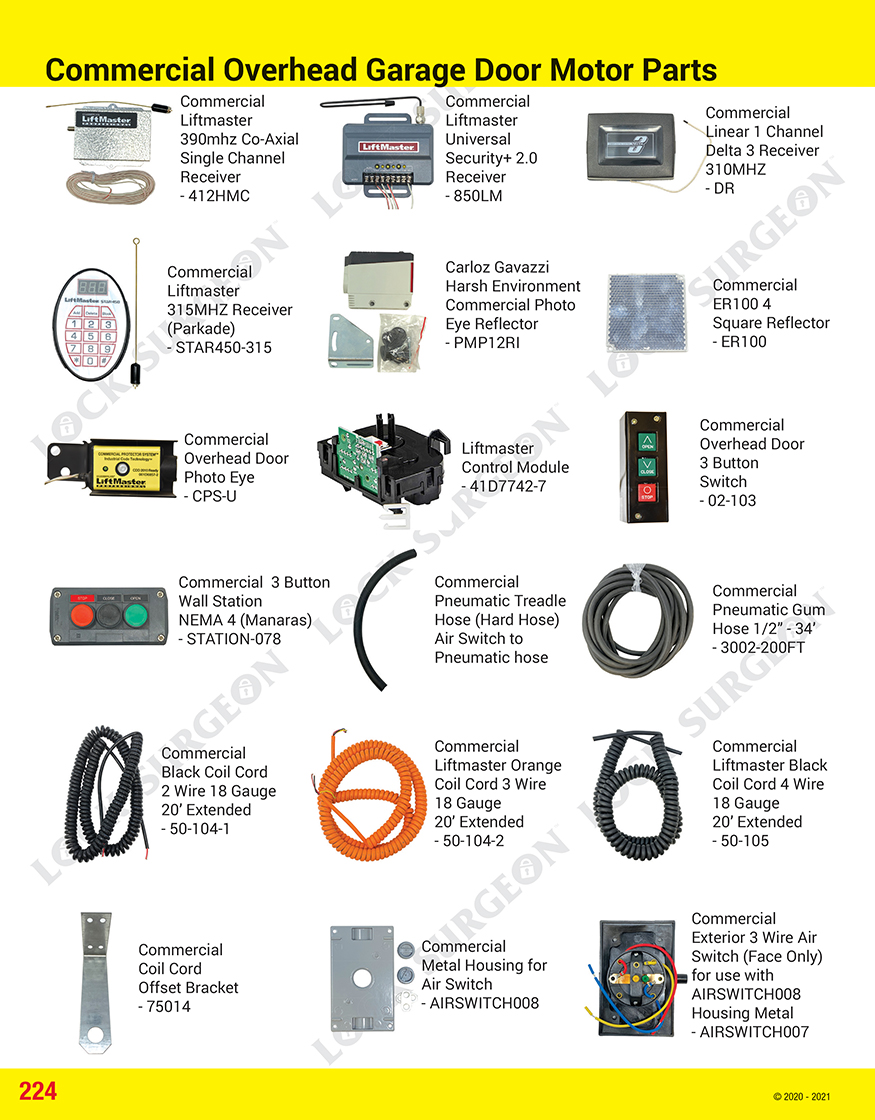

Commercial Overhead Garage Door Motor Parts
COMMERCIAL OVERHEAD GARAGE DOOR MOTOR PARTS:
- Commercial - Liftmaster 390mhz Co-Axial Single Channel Receiver - 412HMC.
- Commercial - Liftmaster Universal Sec + 2.0 Receiver - 850LM.
- Commercial - Linear 1 Channel Delta 3 Receiver 310MHZ - DR.
- Commercial - Liftmaster 315MHZ Receiver (Parkade) - STAR450-315.
- Carloz Gavazzi - Harsh Environment Commercial Photo Eye Reflector - PMP12RI.
- Commercial - ER100 4 Square Reflector - ER100.
- Commercial - Overhead Door Photo Eye - CPS-U.
- LiftMaster - Control Module - 41D7742-7
- Commercial - Overhead Door 3 Button Switch - 02-103.
- Commercial - 3 Button Wall Station NEMA 4 (Manaras) - STATION-078.
- Commercial - Pneumatic Treadle Hose (Hard Hose) Air Switch to Pneumatic hose.
- Commercial - Pneumatic Gum Hose 1/2” - 34’ - 3002-200FT.
- Commercial - Black Coil Cord 2 Wire 18 Gauge 20’ Extended - 50-104-1.
- Commercial - LiftMaster Orange Coil Cord 3 Wire 18 Gauge 20' Extended - 50-104-2.
- Commercial - Coil Cord Offset Bracket - 75014.
- Commercial - Metal Housing for Air Switch - AIRSWITCH008.
- Commercial - Exterior 3 Wire Air Switch Face Only for Use With AIRSWITCH008 Housing Metal - AIRSWITCH007.

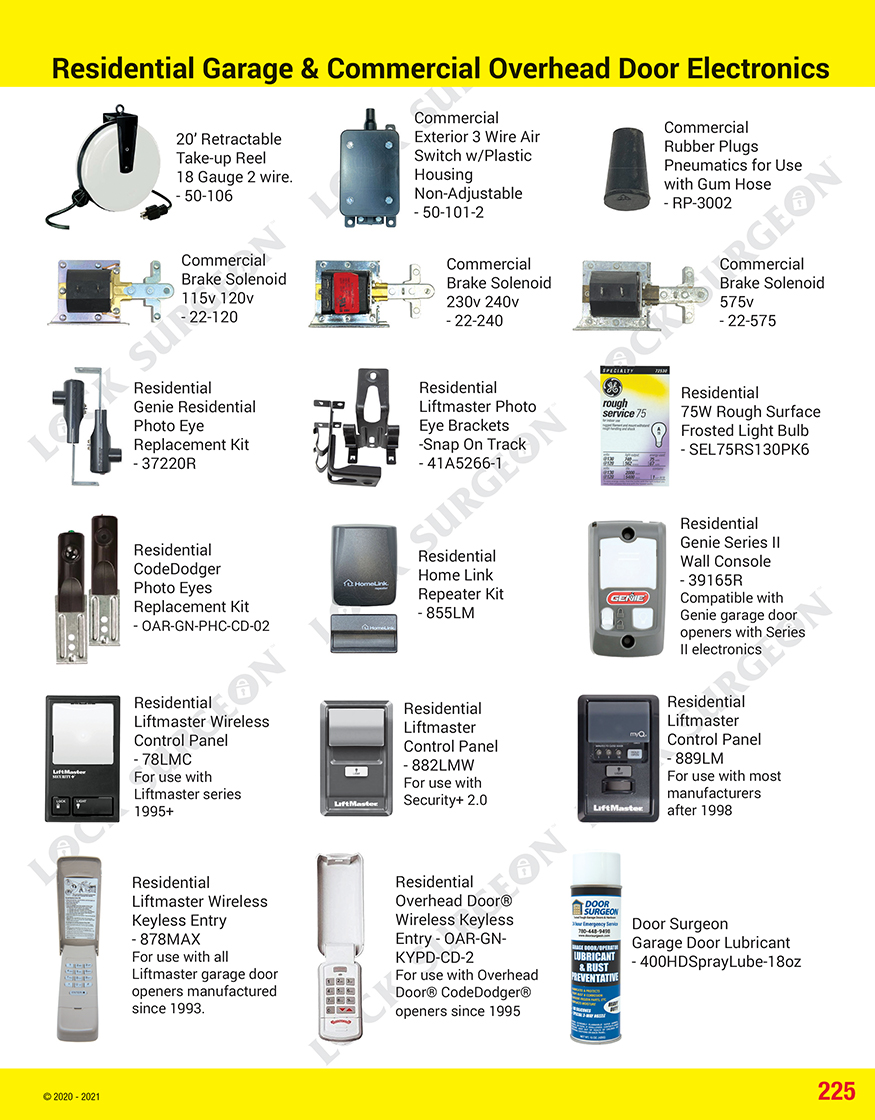

Residential Garage Door & Commercial Overhead Door Opener Parts
RESIDENTIAL & COMMERCIAL GARAGE DOOR OPENER PARTS:
COMMERCIAL:
- Commercial - 20' Retractable Take-up Reel 18 Gauge 2 Wire - 50-106.
- Commercial - Exterior 3 Wire Air Switch With Plastic Housing Non-Adjustable - 50-101-2.
- Commercial - Rubber Plugs Pnuematics for Use with Gum Hose - RP-3002.
- Commercial - Brake Solenoid - 115v 120v - 22-120.
- Commercial - Brake Solenoid - 230v 240v - 22-240.
- Commercial - Brake Solenoid - 575v - 22-575.
RESIDENTIAL:
- Residential - Genie Residential Photo Eye Replacement Kit - 37220R.
- Residential - Liftmaster - Photo Eye Brackets - Snap On Track - 41A5266-1.
- Residential - 75W Rough Surface - Frosted Light Bulb - SEL75RS130PK6.
- Residential CodeDodger Photo Eyes Replacement Kit.
- Residential - Home Link Repeater Kit - 855LM.
- Residential - Genie Series II Wall Console - 39165R. - Compatible with Genie garage door openers with series II electronics.
- Residential - LiftMaster Wireless Control Panel - 78LMC. - For use with LiftMaster series 1995 and newer.
- Residential - LiftMaster Control Panel - 882LMW. - For use with Security+ 2.0 systems.
- Residential - LiftMaster Control Panel - 889LM. - For use with most manufacturers after 1998.
- Residential - LiftMaster Wireless Keyless Entry - 878MAX. - For use with all LiftMaster garage door openers manufactured since 1998.
- Residential - Overhead Door Wireless Keyless Entry - OAR-GN-KYPD-CD-2. - For use with Overhead door CodeDodger openers 1995 and newer.
- Door Surgeon Garage Door Lubricant - 400HDSprayLube-18oz.

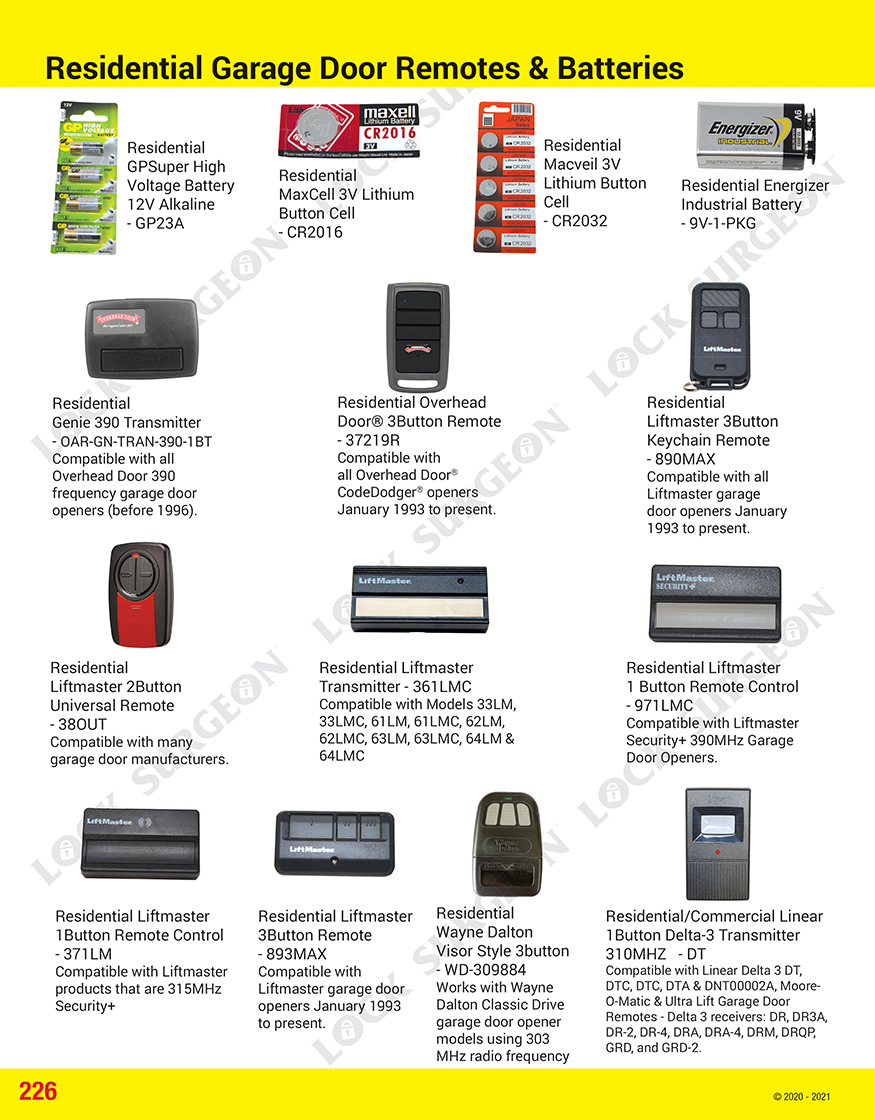

Residential Garage Door Remotes & Batteries
Garage doors often are operated with a garage door opener remote. The specific garage door opener remote that works with your garage door will needed to be programmed before use.
RESIDENTIAL GARAGE DOOR REMOTES:
- Residential - GPSuper High Voltage Battery - 12V Alkaline - GP23A.
- Residential - MaxCell 3V Lithium Button Cell - CR2016.
- Residential - Macveil 3V Lithium Button Cell - CR2032.
- Residential - Renata 3V Lithium Button Cell - CR2450.
- Residential - Energizer Industrial Battery - 9V-1-PKG.
- Residential - Genie 390 Transmitter - OAR-GN-TRAN-390-1BT. - Compatible with all Overhead Door 390 frequency garage door openers before 1996.
- Residential - Overhead Door 3 Button Remote - 37219R. - Compatible with all Overhead Door CodeDodger openers January 1993 to present.
- Residential - LiftMaster 3 button keychain remote - 890MAX. Compatible with all LiftMaster garage door openers January 1993 to present.
- Residential - LiftMaster 2 Button Universal Remote - 38OUT Compatible with many garage door manufacturers.
- Residential - Liftmaster Transmitter - LS361LMC. Compatible with models 33LM, 33LMC, 61LM, 61LMC, 62LM, 62LMC, 63LM, 63LMC, 64LM & 64LMC.
- Residential - Liftmaster 1 Button Remote Control - 971LMC. Compatible with LiftMaster Security+ 390MHz garage door openers.
- Residential - Liftmaster 1 Button Remote Control - 371LM. Compatible with LiftMaster products that are 315MHz Security+.
- Residential - Liftmaster 3 Button Remote - 893MAX. Compatible with LiftMaster garage door openers January 1993 to present.
- Residential - Wayne Dalton Visor Style 3 Button - WD-309884. - Works with Wayne Dalton classic drive garage door opener models using 303MHz radio frequency.
- Residential/Commercial - Linear 1 Button Delta-3 Transmitter 310MHZ. - DT Compatible with Linear Delta 3 DT, DTC, DTA & DN-T00002. Moore-O-Matic & Ultra Lift Garage Door Remotes. - Delta 3 receivers: DR, DR3A, DR-2, DR-4, DRA, DRA-4, DRM, DRQP, GRD & GRD-2.
Residential Garage Door Drums & Commercial Overhead Door Drums
STANDARD LIFT DRUMS 1" & 1-1/4" BORE
- D400-96 Cable Drums - Residential - in stock - pair - 12006.
- D400-144 Cable Drums 1” Bore c/w 1/4” Keyway - Residential - in stock - pair - 12007.
- D525-216 Cable Drums 1” Bore c/w 1/4” Keyway - in stock - pair - 12009 .
- D525-216 Cable Drums 1-1/4” Bore c/w 1/4” Keyway - pair - 12009A.
- D800-384 Cable Drums 1” Bore c/w 1/4” Keyway - in stock - pair - 12013.
- D800-384 Cable Drums 1-1/4” Bore c/w 1/4” Keyway - pair - 12042.
HIGH LIFT DRUMS 1" & 1-1/4" BORE
- D400-54 Cable Drums 1” Bore c/w 1/4” Keyway - Residential/Commercial - in stock - 12018.
- D525-54 Cable Drums 1” Bore c/w 1/4” Keyway - Residential/Commercial - in stock - 12010.
- D525-54 Cable Drums 1-1/4” Bore c/w 1/4” Keyway - 12010A.
- D575-120 Cable Drums 1” Bore c/w 1/4” Keyway - in stock - 12011.
- D575-120 Cable Drums 1-1/4”” Bore c/w 1/4” Keyway - 12011A.
- D800-120 Cable Drums 1-1/4” Bore c/w 1/4” Keyway - 12046.
- D6375-164 Cable Drums 1-1/4” Bore c/w 1/4” Keyway - 12040.
Residential Garage Door & Commercial Overhead Door Cable Drums & Couplers
CABLE DRUMS
- D850-132 Cable Drums 1” Bore c/w 1/4” Keyway - in stock - pair - 12014.
- D1100-216 Cable Drums 1” Bore c/w 1/4” Keyway - in stock - pair - 12015.
- D1100-216 Cable Drums 1-1/4” Bore c/w 1/4” Keyway - pair - 12015A.
- D1350-336 Cable Drums 1” Bore c/w 1/4” Keyway - pair - 12047.
- D1350-336 Cable Drums 1-1/4” Bore c/w 1/4” Keyway - pair - 12048.
COUPLERS
- 1” Adjustable Coupler c/w Square Keyway - 42009.
- 1-1/4” Adjustable Coupler c/w Square Keyway - 42010.
- 1’ Solid Sleeve Coupler c/w Square Keyway - 46001.
- 1-1/4” Solid Sleeve Coupler c/w Square Keyway - 46002.
Residential Garage Door & Commercial Overhead Door Weather-Seal,
Weatherstrip, Rubber Gaskets & Bottom Retainer Tracks
Over time garage door weatherstrip tends to wear out or become brittle. Replacing the garage door weatherstrip will once again help to seal out weather and potentially rodents. A large variety of garage door weatherstrip is shown here, however, there may be a need for a specific solution which is not presented on this page. Call our garage door parts service desk to discuss additional garage door part issues.
BOTTOM RUBBER:
- SteelCraft Garage Door Bottom U-Rubber:
1003-2.5 2.5" bottom U-Rubber.
1003-3 3" bottom U-Rubber.
1003-4 4" bottom U-Rubber.
Available in 9' or 16' rolls.
Wayne Dalton - Garage door bottom rubber - 5120/9605 bulb seal 3".
Available in 9' or 16' rolls.
Sample of Garage door bottom retainer for rubber.
BOTTOM RETAINER:
- Garage Door Bottom Retainer:
FC0312-T16 Black vinyl.
- Garage Door Bottom Retainer:
FC0289-T12 Black vinyl.
- Garage Door Bottom Flat-Retainer:
1019-1-3-8-10 Rigid vinyl - 1-3/8" door.
- Garage Door Bottom L-Retainer:
42216-1-1-4-9 Rigid vinyl.
- Garage Door Aluminum Bottom U-Retainer:
1005-1-3-4-10 1-3/4" door.
- Garage Door Bottom Retainer Raised Centre:
1015-1-3-4-10 Rigid vinyl 1-3/4" door.
- Garage Door Aluminum Bottom Flat-Retainer
1007-1-5-8-10 1-3/4" door.
- Garage Door Aluminum Bottom L-Retainer
1003-1-3-8-10 1-3/8" door.
GARAGE DOOR EDGE WEATHER SEAL:
- PKGSTCR 9x9 WHT (3 pack white).
- PKGSTCR 18x9 WHT (4 pack white).
- PKGSTCR 9x9 BRN (3 pack brown).
- PKGSTCR 18x9 BRN (4 pack brown).
RUBBER GASKET:
- Garage Door Gasket
CTRGASKET SteelCraft centre section gasket seal.
WARRANTY & Return Policy
Sometimes Things Happen
No one likes it when things go wrong, no one more than us, but if it does, check out our Warranty Pages.
Click any one of the below logos for direct access to one of our service repair and installation providers.
Not all areas have local mobile service. Service call travel charges may apply.
