Garage door springs come in a variety of sizes. You can review the page below to find examples of garage door springs that may meet your needs. We have also put a video of garage door spring measuring on this page to help you determine the appropriate replacement garage door spring. While our video is made to help with your purchase of the garage door spring required, it's important that you take appropriate safety precautions when working with this high-tension component or doing any other garage door repair work. You may require additional tools to accomplish the task. One important item is a set of winding-bars or a tool known as a winding-cone for Wayne Dalton garage door springs.
Garage door springs can be shipped direct to you. Lock Surgeon's garage door springs service counter technicians are able to help advise you on the correct garage door spring selection to complete your garage door spring repair. Lock Surgeon's easy to use E-commerce site and this webpage has an excellent display of common garage door springs.
You can view a large variety of the garage door springs available on this page and call to discuss your needs with one of our shop garage door springs service counter technicians. It is possible to communicate with the garage door springs service counter technicians by texting pictures using that technician's direct phone number. This will help confirm the spring that you may require while confirming that you are being sent the correct garage door spring to meet your needs.
Going forward you can shop the E-commerce garage door spring site 24hrs a day, placing your order and having the garage door spring shipped as needed. Shop the garage door E-commerce springs site independently by clicking the above red "Click here to order online" button. You may also click the above yellow "Complete Product Listing" link to view an extensive catalogue of garage door and door security that can be shipped.

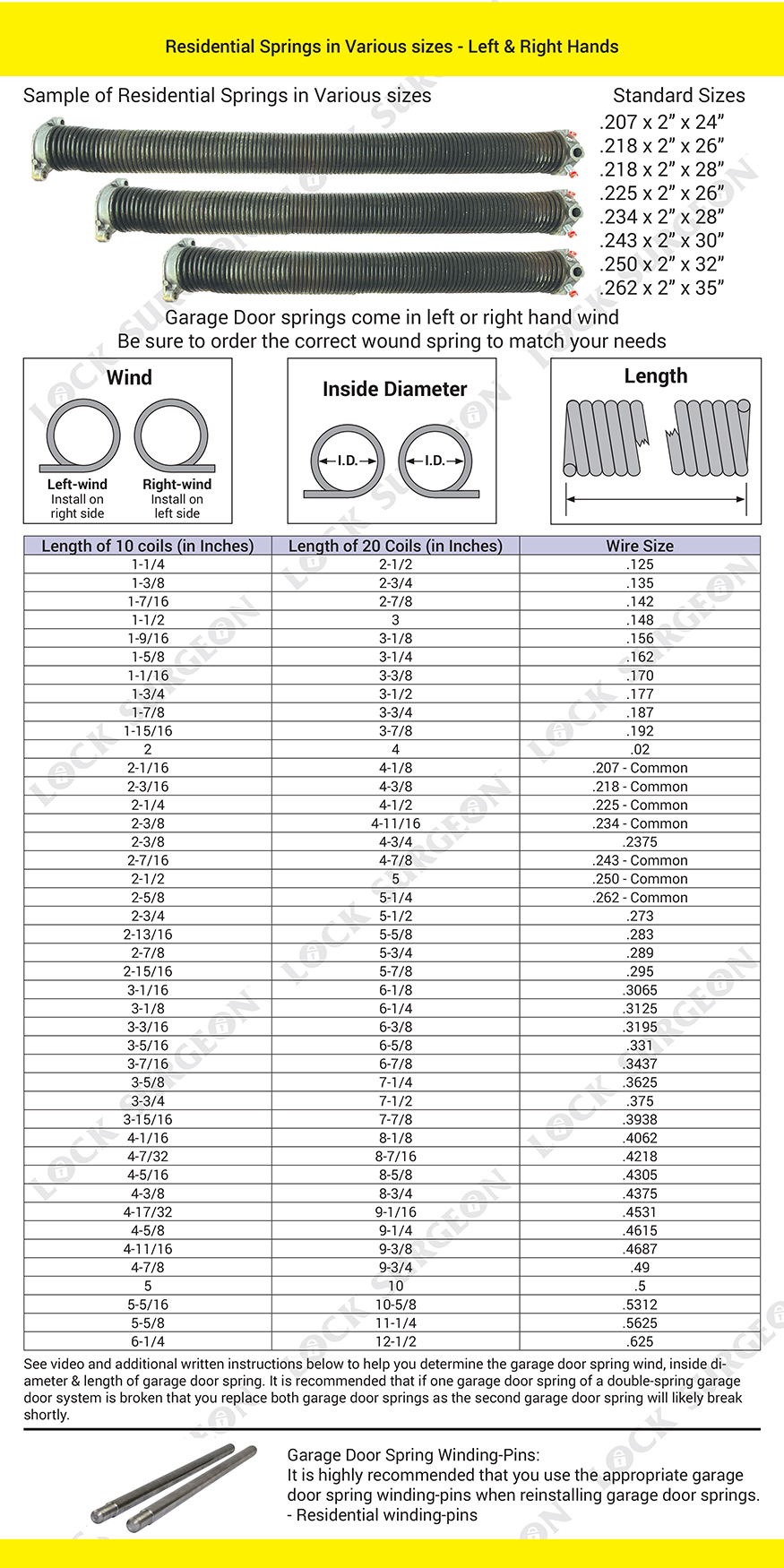

Residential Garage Door Springs Various Sizes
Home Garage Door Springs Various Sizes
Residential Springs:
- Garage door springs come in left or right hand wind, be sure to order the correct wound spring to match your needs.
- Winds come in left & right handed.
Part Numbers: for standard sizes.
- .207 x 2" x 24".
- .218 x 2" x 26".
- .218 x 2" x 28".
- .225 x 2" x 26".
- .234 x 2" x 28".
- .243 x 2" x 30".
- .250 x 2" x 32".
- .262 x 2" x 35".
Wire Size & Coil Lengths Measured:
- (wire size .125), (length of 10 coils - 1-1/4"), (length of 20 coils - 2-1/2").
- (wire size .135), (length of 10 coils - 1-3/8"), (length of 20 coils - 2-3/4").
- (wire size .142), (length of 10 coils - 1-7/16"), (length of 20 coils - 2-7/8").
- (wire size .148), (length of 10 coils - 1-1/2"), (length of 20 coils - 3").
- (wire size .156), (length of 10 coils - 1-9/16"), (length of 20 coils - 3-1/8").
- (wire size .162), (length of 10 coils - 1-5/8"), (length of 20 coils - 3-1/4").
- (wire size .170), (length of 10 coils - 1-1/16"), (length of 20 coils - 3-3/8").
- (wire size .177), (length of 10 coils - 1-3/4"), (length of 20 coils - 3-1/2").
- (wire size .187), (length of 10 coils - 1-7/8"), (length of 20 coils - 3-3/4").
- (wire size .192), (length of 10 coils - 1-15/16"), (length of 20 coils - 3-7/8").
- (wire size .02), (length of 10 coils - 2"), (length of 20 coils - 4").
- (wire size .207 Common), (length of 10 coils - 2-1/16"), (length of 20 coils - 4-1/8").
- (wire size .218 Common), (length of 10 coils - 2-3/16"), (length of 20 coils - 4-3/8").
- (wire size .225 Common), (length of 10 coils - 2-1/4"), (length of 20 coils - 4-1/2").
- (wire size .234 Common), (length of 10 coils - 2-3/8"), (length of 20 coils - 4-11/16").
- (wire size .2375), (length of 10 coils - 2-3/8"), (length of 20 coils - 4-3/4").
- (wire size .243 Common), (length of 10 coils - 2-7/16"), (length of 20 coils - 4-7/8").
- (wire size .250 Common), (length of 10 coils - 2-1/2"), (length of 20 coils - 5").
- (wire size .262 Common), (length of 10 coils - 2-5/8"), (length of 20 coils - 5-1/4").
- (wire size .273), (length of 10 coils - 2-3/4"), (length of 20 coils - 5-1/2").
- (wire size .283), (length of 10 coils - 2-13/16"), (length of 20 coils - 5-5/8").
- (wire size .289), (length of 10 coils - 2-7/8"), (length of 20 coils - 5-3/4").
- (wire size .295), (length of 10 coils - 2-15/16"), (length of 20 coils - 5-7/8").
- (wire size .3065), (length of 10 coils - 3-1/16"), (length of 20 coils - 6-1/8").
- (wire size .3125), (length of 10 coils - 3-1/8"), (length of 20 coils - 6-1/4").
- (wire size .3195), (length of 10 coils - 3-3/16"), (length of 20 coils - 6-3/8").
- (wire size .331), (length of 10 coils - 3-3-5/16"), (length of 20 coils - 6-5/8").
- (wire size .3437), (length of 10 coils - 3-7/16"), (length of 20 coils - 6-7/8").
- (wire size .3625), (length of 10 coils - 3-5/8"), (length of 20 coils - 7-1/4").
- (wire size .375), (length of 10 coils - 3-3/4"), (length of 20 coils - 7-1/2").
- (wire size .3938), (length of 10 coils - 3-15/16"), (length of 20 coils - 7-7/8").
- (wire size .4062), (length of 10 coils - 4-1/16"), (length of 20 coils - 8-1/8").
- (wire size .4218), (length of 10 coils - 4-7/32"), (length of 20 coils - 8-7/16").
- (wire size .4305), (length of 10 coils - 4-5/16"), (length of 20 coils - 8-5/8").
- (wire size .4375), (length of 10 coils - 4-3/8"), (length of 20 coils - 8-3/4").
- (wire size .4531), (length of 10 coils - 4-17/32"), (length of 20 coils - 9-1/16").
- (wire size .4615), (length of 10 coils - 4-5/8"), (length of 20 coils - 9-1/4").
- (wire size .4687), (length of 10 coils - 4-11/16"), (length of 20 coils - 9-3/8").
- (wire size .49), (length of 10 coils - 4-7/8"), (length of 20 coils - 9-3/4").
- (wire size .5), (length of 10 coils - 5"), (length of 20 coils - 10").
- (wire size .5312), (length of 10 coils - 5-5/16"), (length of 20 coils - 10-5/8").
- (wire size .5625), (length of 10 coils - 5-5/8"), (length of 20 coils - 11-1/4").
- (wire size .625), (length of 10 coils - 6-1/4"), (length of 20 coils - 12-1/2").
See video and additional written instructions below to help you determine the garage door spring wind, inside diameter & length of garage door spring. It is recommended, that if one garage door spring of a double-spring garage door system is broken, that you replace both garage door springs. The second garage door spring will likely break shortly after the first as they would be of similar age and use.
Garage Door Winding Springs:
- It is highly recommended that you use the appropriate garage door spring winding-pins when reinstalling garage door springs.
Part Number:
- Residential winding-pins.

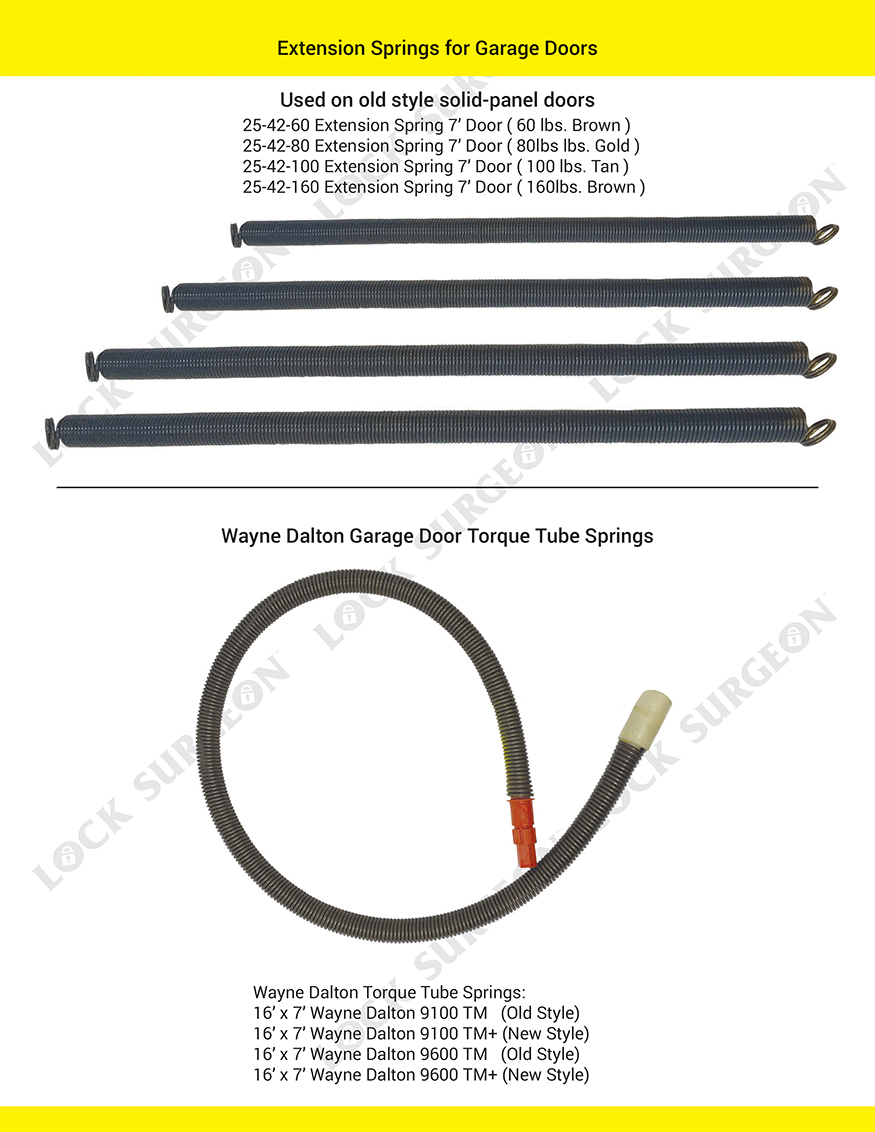

Residential Garage Door Extension Springs
Home Garage Door Extension Springs
Extension Springs for Garage Doors:
- Used on old-style solid panel doors.
Part Number:
- 25-42-60, extension spring, 7' door (60lbs), (brown).
- 25-42-80, extension spring, 7' door (80lbs), (gold).
- 25-42-100, extension spring, 7' door (100lbs), (tan).
- 25-42-160, extension spring, 7' door (160lbs), (brown).
Wayne Dalton Garage Door Torque Tube Springs:
- 16' x 7', Wayne Dalton 9100 TM (old style).
- 16' x 7', Wayne Dalton 9100 TM+ (new style).
- 16' x 7', Wayne Dalton 9600 TM (old style).
- 16' x 7', Wayne Dalton 9600 TM+ (new style).
Basics of How To Measure Replacement Garage Door Spring - 3 min
Video shows how to use a specialty garage door spring ruler. Additional written material below video tutorial on how to measure garage door springs. It talks about using a basic tape measure to measure garage door springs. It's important that you consult a professional, take appropriate safety precautions when working with this high-tension component or doing any other garage door repair work.
Video Script
We've got a broken garage door spring here. Your garage door springs are the component on the garage door that balance the garage door making it virtually weightless for the motor to lift up or by manual. The garage door spring converts its tension into the bar or to the drums, to the cables and down to the bottom of the garage door. When a garage door spring breaks the first thing to do is to measure it. We have whats called the wire size, which is the gauge of the wire of the coil itself. There is also the diameter, we have an OD or outside diameter and an ID which is the inside diameter. We will typically go with the inside diameter or ID, which will be from the inside of the wire here to the inside of the wire on the direct opposite side. We also have the length of the coil itself excluding the cone. So we would measure the black portion of coil of each side of the coil that is broken here. Then we would combine them together to get the overall length.
Using this handy-dandy garage door spring ruler here, it says right on here to count twenty coils after you have placed the formed end in and it will give you your wire size. There are a whole bunch of numbers on the side here which will indicate which thickness gauge of wire this is. So we're going to place the formed end which is the L between two coils here and make sure it's flat and the garage door spring is straight and were going to count to twenty coils.
(Counting)... And right on the edge of the twentieth coil on the very end of the opposite side it will have a number. Typically on one of these lines, ours is reading at 2437 which will convert to 243, so this is a 243 wire spring. Now you want to do this two or three times typically on a garage door spring to make sure we've got the right gauge. We've already done that before making this video so we're going to move along. You take your tape measure, the easiest way I've found to do this, because the saft is always in the way, take a random number, say we start at seven here. Line up that seven with the inside of the top spring coil here. Go down to the bottom spring coil and we've got between seven and nine which would be a two inch inside diameter which is pretty standard. Then we want to also measure our spring coil partitions here, so we have twentysix inches on this side and we have about five inches on this side. So thats going to be about thirtyone.
The stock size garage door springs that we have on the trucks are 243 by 2 by 30. Its a difference of one inch, which is acceptable to put on this garage door. Either one inch up or one inch down on each spring. If you are going over an inch than you would typically not want to do that, you would want to get a custom order spring to match the ones that you would have. Since we are within an inch on each garage door spring it won't affect the inch pounds per turn or IPPT as the garage door travels up and starts to lay it'w weight down flat in the tracks. It's still going to balance this garage door. It will be nice and weightless and is not going to shoot up too fast when it's down and it's not going to want to fall back down to the ground.
Written Instructions on How to Measure a Garage Door Spring
Using a Tape Measure

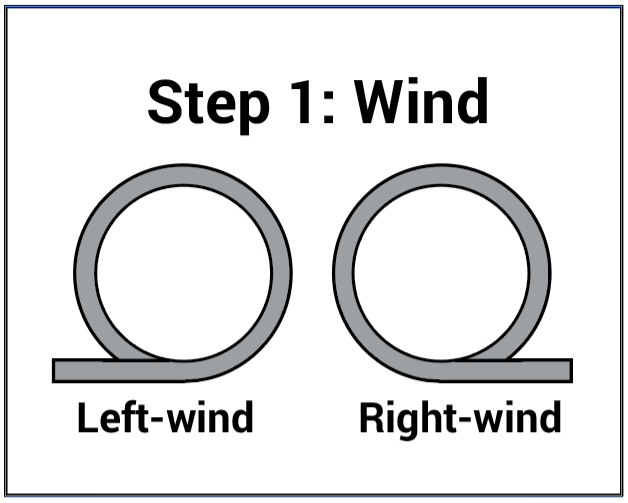

Step 1: Determining The Wind Direction of a Spring:
Look at the end of the garage door spring to determine the wind direction. If the end of the garage door spring points clockwise it is left-wound and if the end of the garage door spring points counter-clockwise, it is right-wound. Wind direction, on most garage door springs, is also indicated by the color of the winding cones and cable drums. Red would indicate a right-wound garage door spring and black would indicate a left-wound garage door spring.
Step 2: Measuring The Spring Wire Size:

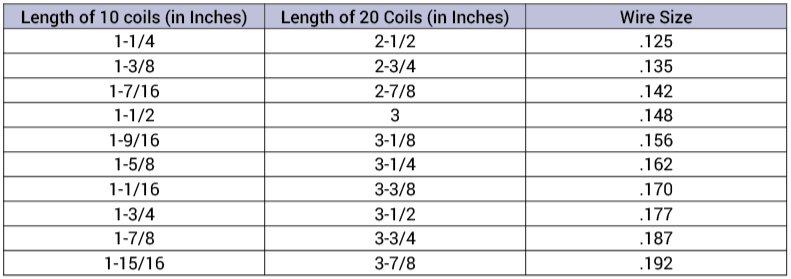

Garage Door Torsion Wire Size Chart:
Take ten or twenty coils on the garage door spring that needs to be replaced. Measure that length using inches. Using the measurement chart below, compare your measurement to the garage door torsion spring measurements to determine your correct wire size. These measurements come from the Door & Access Systems Manufacturers Association.

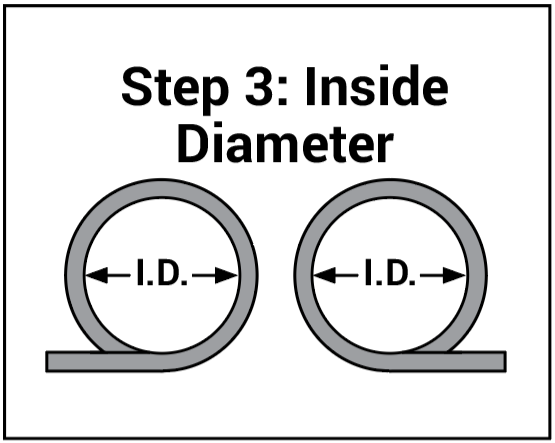

Step 3: Measure The Inside Diameter of The Wire:
For torsion garage door springs, measure the inside diameter (inside edge of the coil) to the closest 1/16” of an inch.

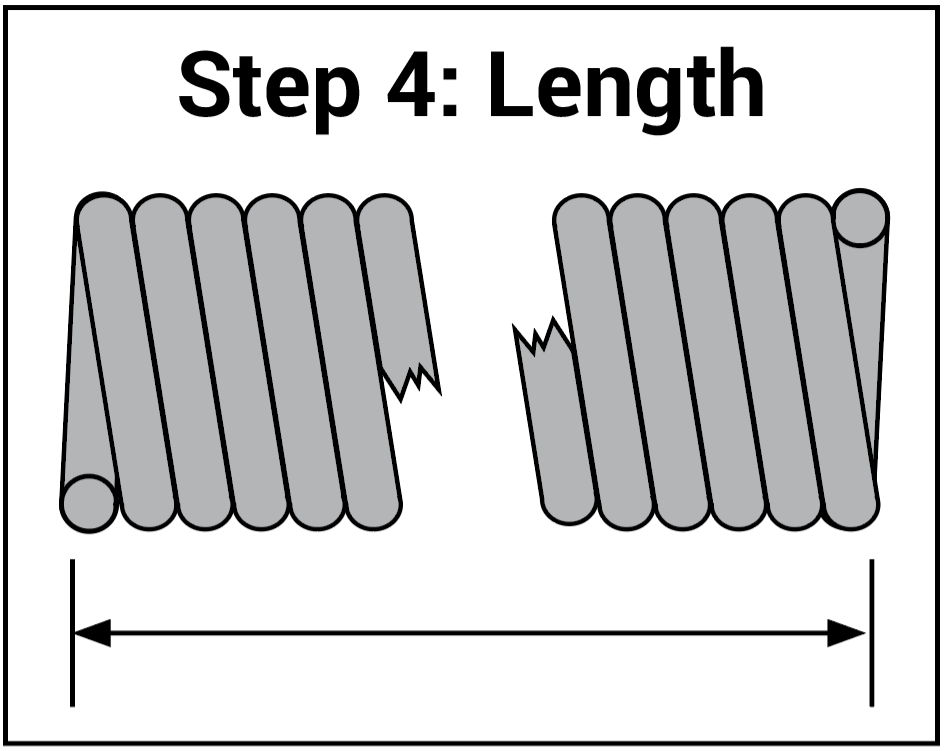

Step 4: Measure The Overall Length of The Garage Door Torsion Spring:
Measure the overall length of the garage door spring, from the first edge to the last edge as it shows in the chart, to the nearest quarter inch.

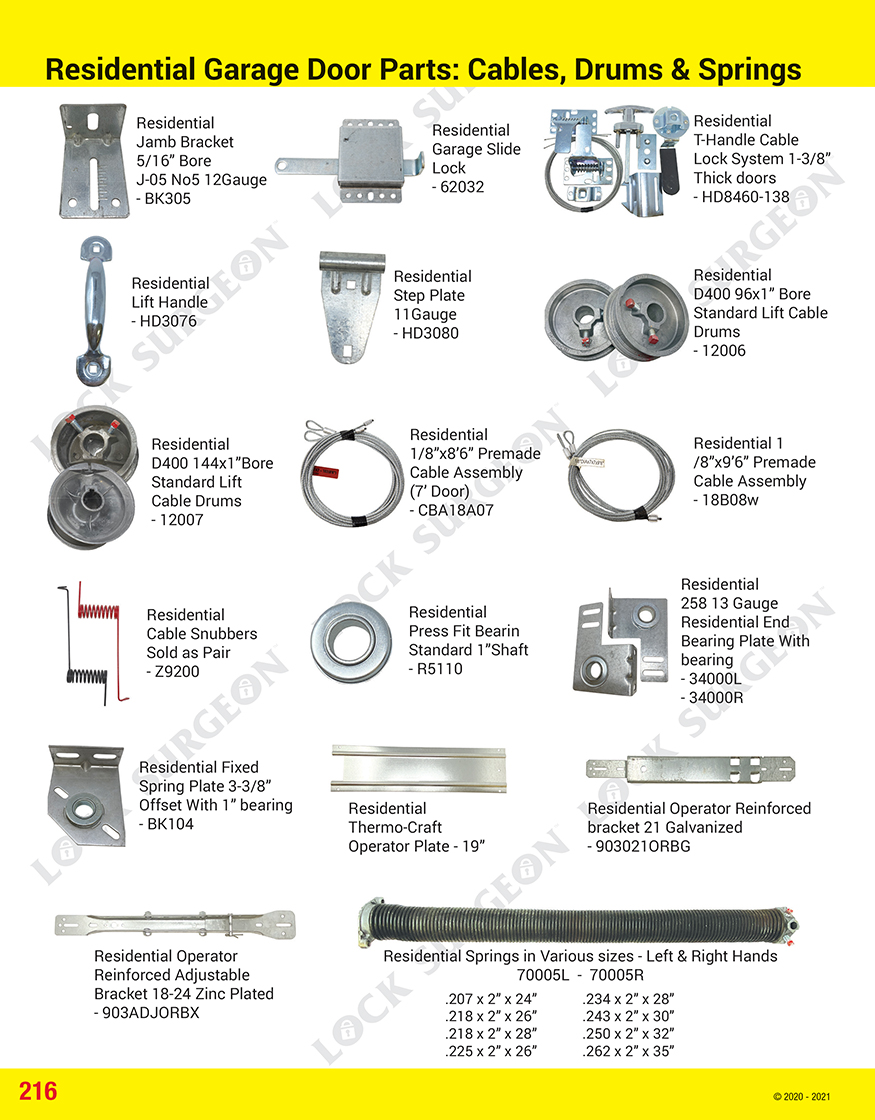

Residential Garage Door Springs, Cables & Drums
RESIDENTIAL PARTS
- Residential - Jamb Bracket 5/16” - Bore - J-05 No5 12Gauge - BK305.
- Residential - Garage Slide Lock - 62032.
- Residential - T-Handle Cable Lock System 1-3/8” Thick doors - HD8460-138.
- Residential - Lift Handle - HD3076.
- Residential - Step Plate - 11Gauge - HD3080.
- Residential - 1/8”x8’6” Premade Cable Assembly (7’ Door) - CBA18A07.
- Residential - 1/8”x9’6” Premade Cable Assembly - 18B08w.

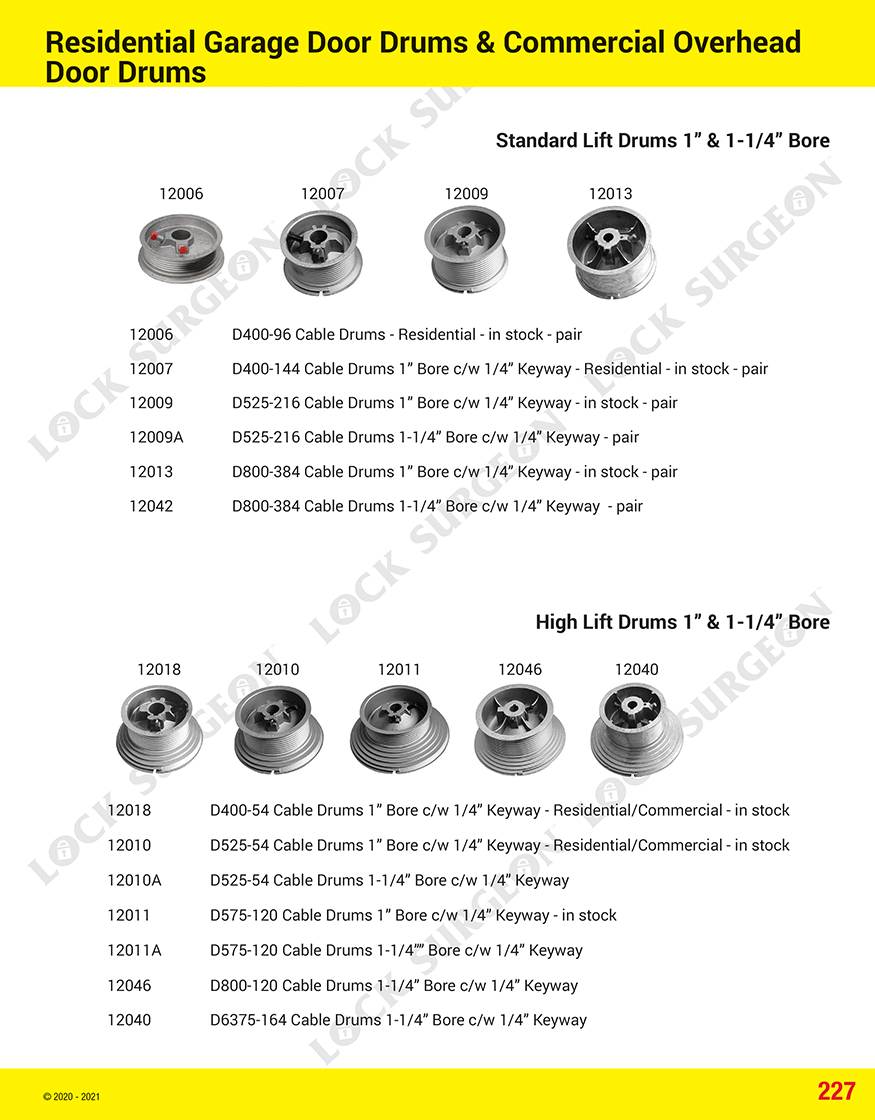

- Residential - D400 96x1” Bore - Standard Lift Cable Drums - 12006.
- Residential - D400 144x1”Bore - Standard Lift Cable Drums - 12007.
- Residential - Press Fit Bearing Standard 1”Shaft - R5110.
- Residential - Fixed Spring Plate 3-3/8” Offset With 1” bearing - BK104.
- Residential - 258 13 Gauge - End Bearing Plate With bearing - 34000L - 34000R.
- Residential -Cable Snubbers - Sold as Pair - Z9200.
- Residential - ThermoCraft - Operator Plate - 19”.
- Residential - Operator Reinforced bracket 21 Galvanized - 903021ORBG.
- Residential - Operator Reinforced Adjustable Bracket 18-24 Zinc Plated - 903ADJORBX.
- Residential Garage Door Springs in Various sizes - Left & Right Hands:
- .207 x 2” x 24”. Garage Door Spring.
- .234 x 2” x 28”. Garage Door Spring.
- .218 x 2” x 26”. Garage Door Spring.
- .243 x 2” x 30”. Garage Door Spring.
- .218 x 2” x 28”. Garage Door Spring.
- .250 x 2” x 32”. Garage Door Spring.
- .225 x 2” x 26”. Garage Door Spring.
- .262 x 2” x 35”. Garage Door Spring.

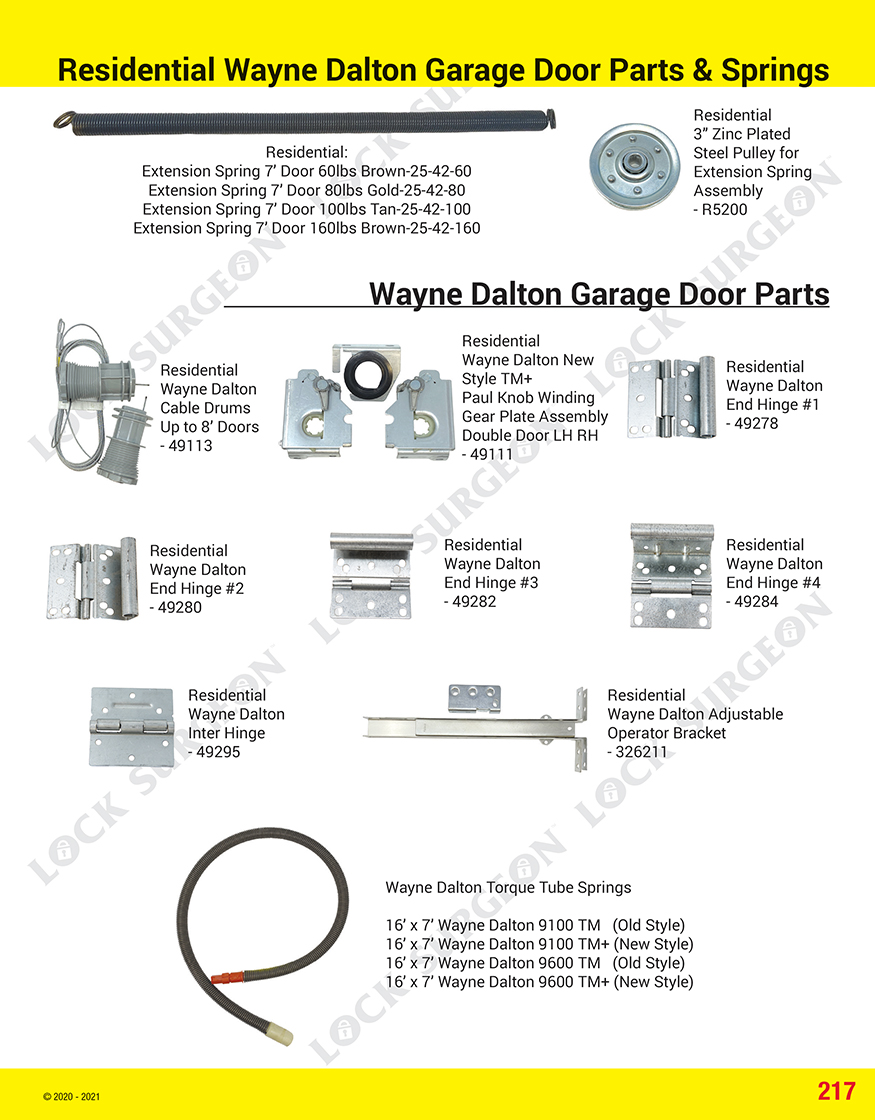

RESIDENTIAL PARTS
RESIDENTIAL EXTENSION SPRINGS:
- Extension Spring 7’ Door 60lbs Brown-25-42-60.
- Extension Spring 7’ Door 80lbs Gold-25-42-80.
- Extension Spring 7’ Door 100lbs Tan-25-42-100.
- Extension Spring 7’ Door 160lbs Brown-25-42-160.
- Residential - 3” Zinc Plated Steel Pulley for Extension Spring Assembly - R5200.
- Residential - Wayne Dalton - New Style TM+ Paul Knob Winding Gear Plate Assembly Double Door LH RH - 49111.
- Residential - Wayne Dalton - Cable Drums Up to 8’ Doors - 49113.
- Residential - Wayne Dalton - End Hinge #1 - 49278.
- Residential - Wayne Dalton - End Hinge #2 - 49280.
- Residential - Wayne Dalton - End Hinge #3 - 49282.
- Residential - Wayne Dalton - End Hinge #4 - 49284.
- Residential - Wayne Dalton - Inter Hinge - 49295.
- Residential - Wayne Dalton - Adjustable Operator Bracket (Torque Tube Doors) - 326211.
RESIDENTIAL - WAYNE DALTON TORQUE TUBE SPRINGS:
- 16’ x 7’ Wayne Dalton LS9100 TM (Old Style) - 314456.
- 16’ x 7’ Wayne Dalton LS9100 TM+ (New Style) - 314986.
- 16’ x 7’ Wayne Dalton LS9600 TM (Old Style) - 314440.
- 16’ x 7’ Wayne Dalton LS9600 TM+ (New Style) - 314970.

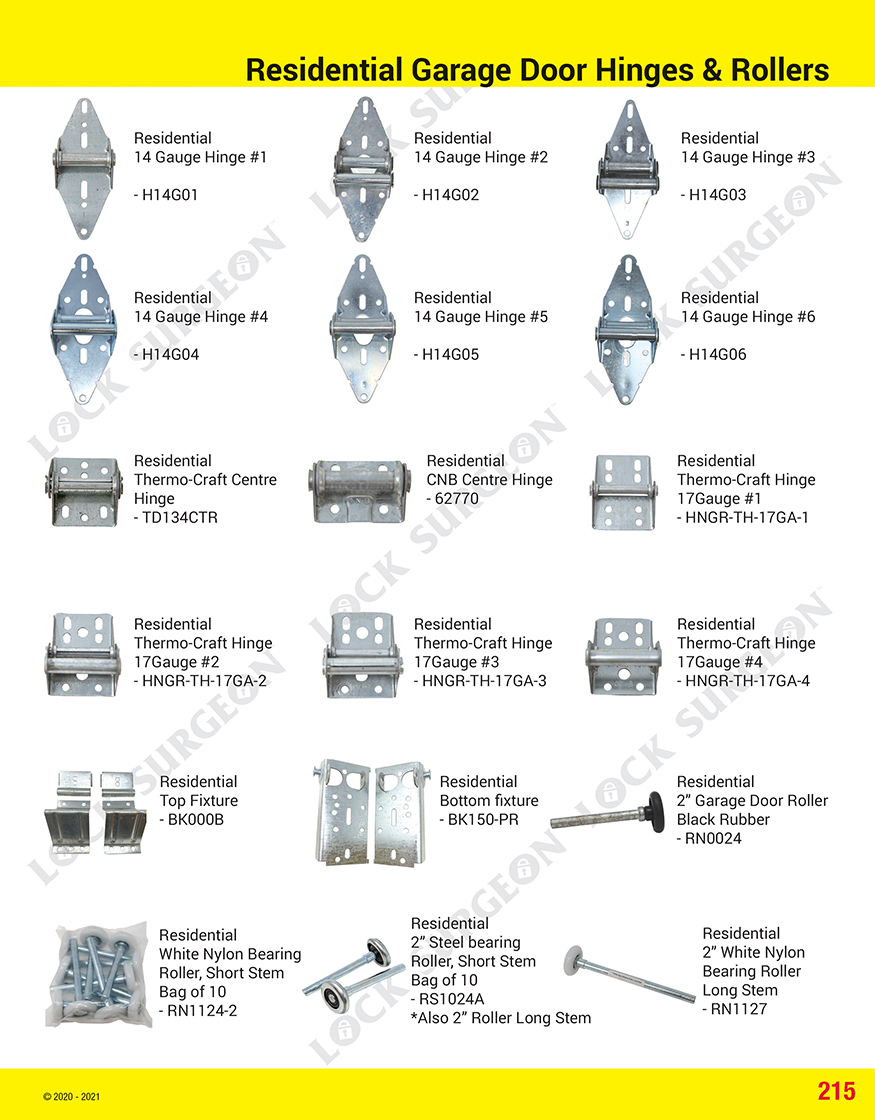

Residential Garage Door Hinges & Rollers
RESIDENTIAL GARAGE DOOR PARTS
- Residential - 14 Gauge Hinge #1 - H14G01.
- Residential - 14 Gauge Hinge #2 - H14G02.
- Residential - 14 Gauge Hinge #3 - H14G03.
- Residential - 14 Gauge Hinge #4 - H14G04.
- Residential - 14 Gauge Hinge #5 - H14G05.
- Residential - 14 Gauge Hinge #6 - H14G06.
- Residential - Thermacraft Centre Hinge - TD134CTR.
- Residential - CNB Centre Hinge - 62770.
- Residential - Thermacraft Hinge - 17Gauge #1 - HNGR-TH-17GA-1.
- Residential - Thermacraft Hinge - 17Gauge #2 - HNGR-TH-17GA-2.
- Residential - Thermacraft Hinge - 17Gauge #3 - HNGR-TH-17GA-3.
- Residential - Thermacraft Hinge - 17Gauge #4 - HNGR-TH-17GA-4.
- Residential - Top Fixture - BK000B.
- Residential - Bottom fixture - BK150-PR.
- Residential - 2” Garage Door Roller - Black Rubber - RN0024.
- Residential - White Nylon Bearing - Roller, Short Stem - Bag of 10 - RN1124-2.
- Residential - 2” Steel bearing - Roller, Short Stem - Bag of 10 - RS1024A *Also 2” Roller Long Stem.
- Residential - 2” White Nylon - Bearing Roller - Long Stem - RN1127.

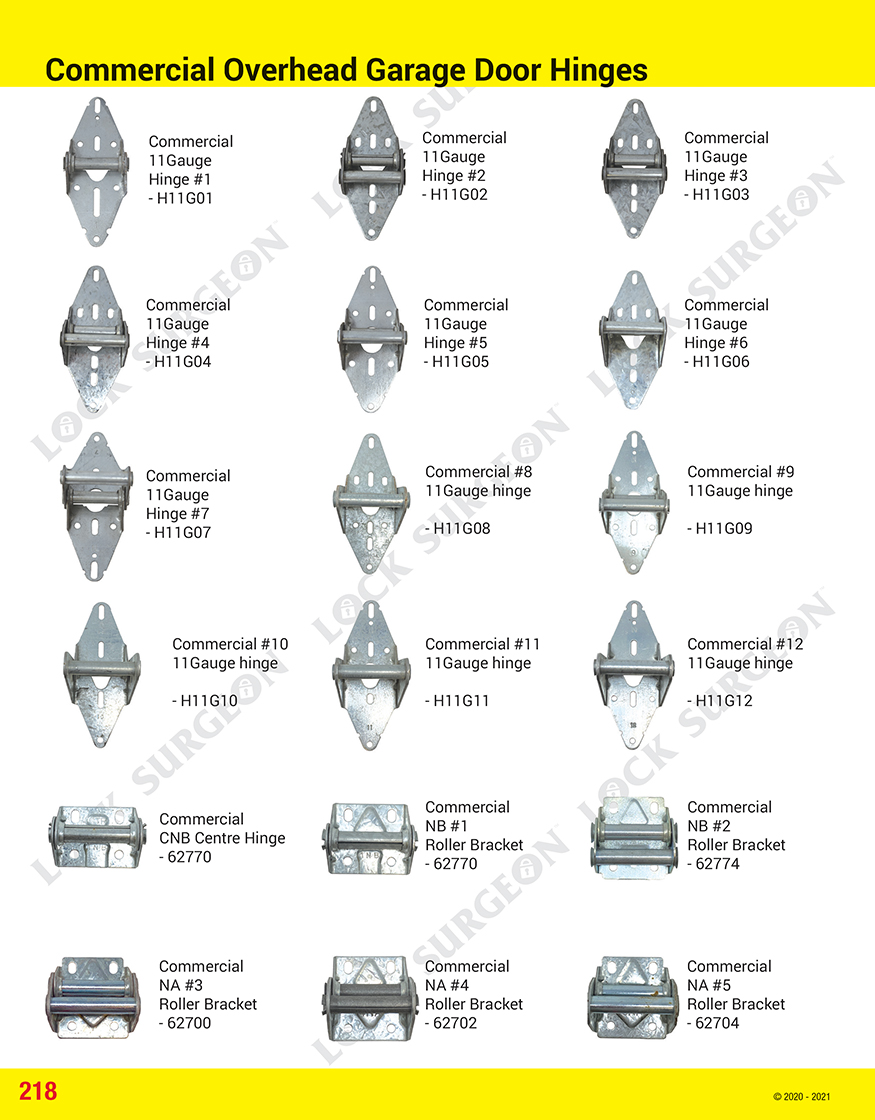

Commercial Overhead Garage Door Hinges
COMMERCIAL PARTS
- Commercial - 11Gauge Hinge #1 - H11G01.
- Commercial - 11Gauge Hinge #2 - H11G02.
- Commercial - 11Gauge Hinge #3 - H11G03.
- Commercial - 11Gauge Hinge #4 - H11G04.
- Commercial - 11Gauge Hinge #5 - H11G05.
- Commercial - 11Gauge Hinge #6 - H11G06.
- Commercial - 11Gauge Hinge #7 - H11G07.
- Commercial - 11Gauge Hinge #8 - H11G08.
- Commercial - 11Gauge Hinge #9 - H11G09.
- Commercial - 11Gauge hinge #10 - H11G10.
- Commercial - 11Gauge hinge #11 - H11G11.
- Commercial - 11Gauge hinge #12 - H11G12.
- Commercial - CNB Centre Hinge - 62770.
- Commercial - NB #1 Roller Bracket - 62770.
- Commercial - NB #2 Roller Bracket - 62774.
- Commercial - NA #3 Roller Bracket - 62700.
- Commercial - NA #4 Roller Bracket - 62702.
- Commercial - NA #5 Roller Bracket - 62704.

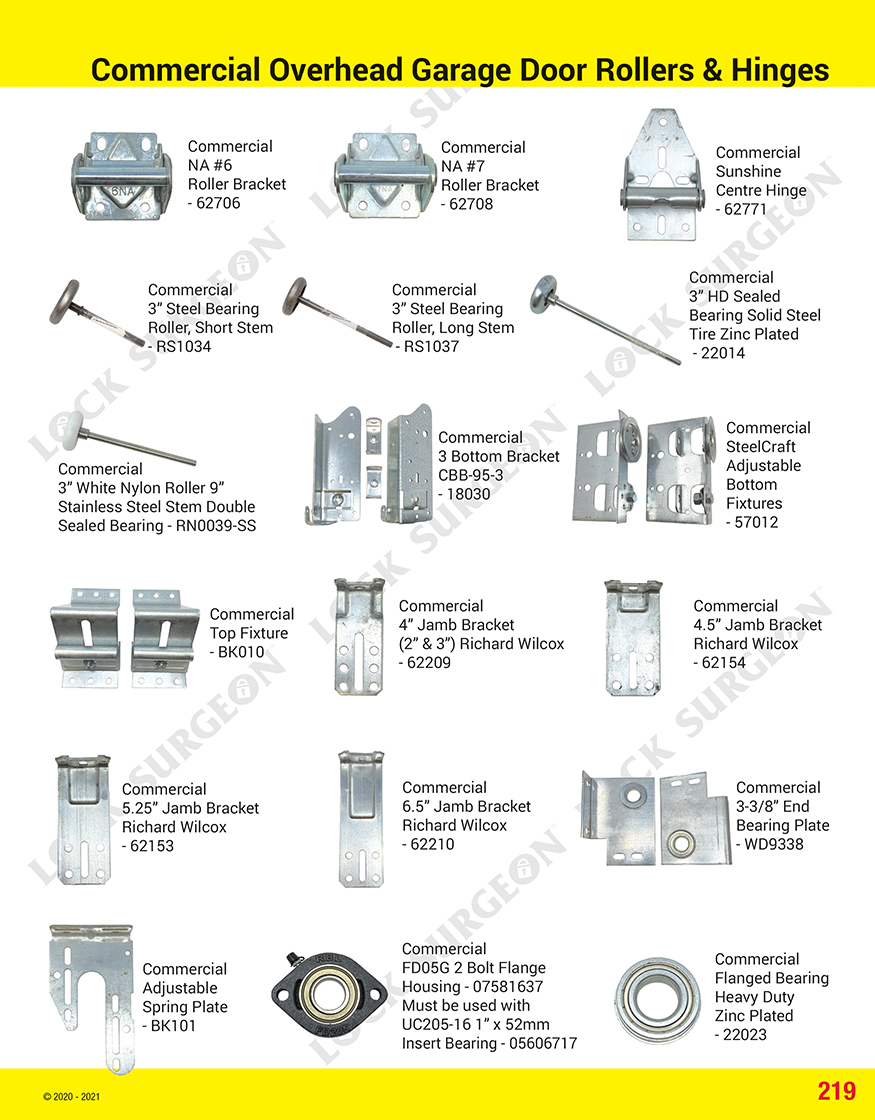

Commercial Overhead Garage Door Rollers & Hinges
COMMERCIAL PARTS
- Commercial - NA #6 Roller Bracket - 62706.
- Commercial - NA #7 Roller Bracket - 62708.
- Commercial - Sunshine Centre Hinge - 62771.
- Commercial - 3” Steel Bearing Roller, Short Stem - RS1034.
- Commercial - 3” Steel Bearing Roller, Long Stem - RS1037.
- Commercial - 3” HD Sealed Bearing Solid Steel Tire Zinc Plated - 22014.
- Commercial - 3” White Nylon Roller 9” Stainless Steel Stem Double Sealed Bearing - RN0039-SS.
- Commercial - 3 Bottom Bracket CBB-95-3 - 18030.
- Commercial - Steelcraft Adjustable Bottom Fixtures - 57012.
- Commercial - Top Fixture - BK010.
- Commercial - 4” Jamb Bracket (2” & 3”) Richard Wilcox - 62209.
- Commercial - 4.5” Jamb Bracket Richard Wilcox - 62154.
- Commercial - 5.25” Jamb Bracket Richard Wilcox - 62153.
- Commercial - 6.5” Jamb Bracket Richard Wilcox - 62210.
- Commercial - 3-3/8” End Bearing Plate - WD9338.
- Commercial - Adjustable Spring Plate - BK101.
- Commercial - FD05G 2 Bolt Flange Housing - 07581637 *must be used with UC205-16 1” x 52mm Insert Bearing - 05606717.
- Commercial - Flanged Bearing Heavy Duty Zinc Plated - 22023.

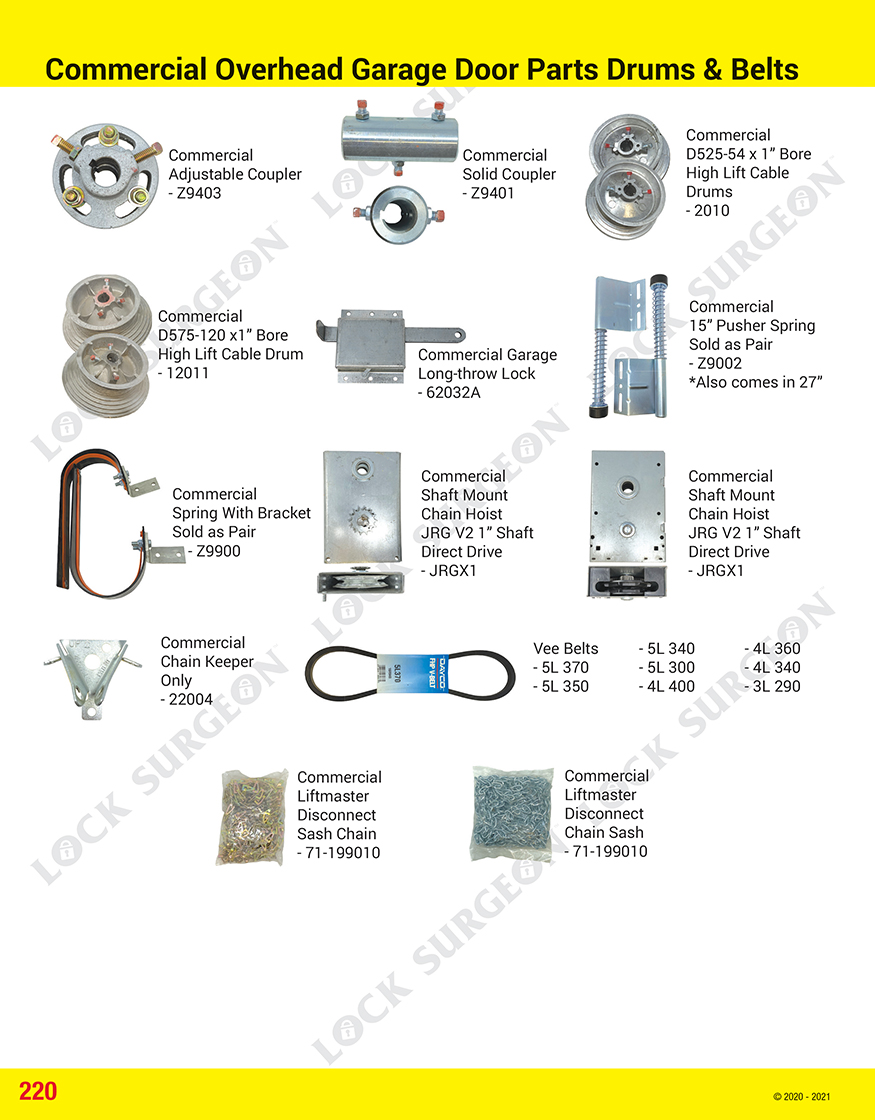

Commercial Overhead Garage Door Parts Drums & Belts
COMMERCIAL PARTS
- Commercial - Adjustable Coupler - Z9403.
- Commercial - Solid Coupler - Z9401.
- Commercial - D525-54 x 1” Bore High Lift Cable Drums - 2010.
- Commercial - D575-120 x 1” Bore High Lift Cable Drum - 12011.
- Commercial - Garage Long-throw Lock - 62032A.
- Commercial - 15” Pusher Spring - Sold as Pair - Z9002 *Also comes in 27”.
- Commercial - Spring With Bracket - Sold as Pair - Z9900.
- Commercial - Shaft Mount Chain Hoist - JRG V2 1” Shaft Direct Drive - JRGX1.
- Commercial - Chain Keeper Only - 22004.
VEE BELTS:
- 5L 370 - 5L 350 - 5L 340 - 5L 300.
- 4L 400 - 4L 360 - 4L 340 - 3L 290.
- Commercial - Liftmaster Disconnect Sash Chain - 71-199010.

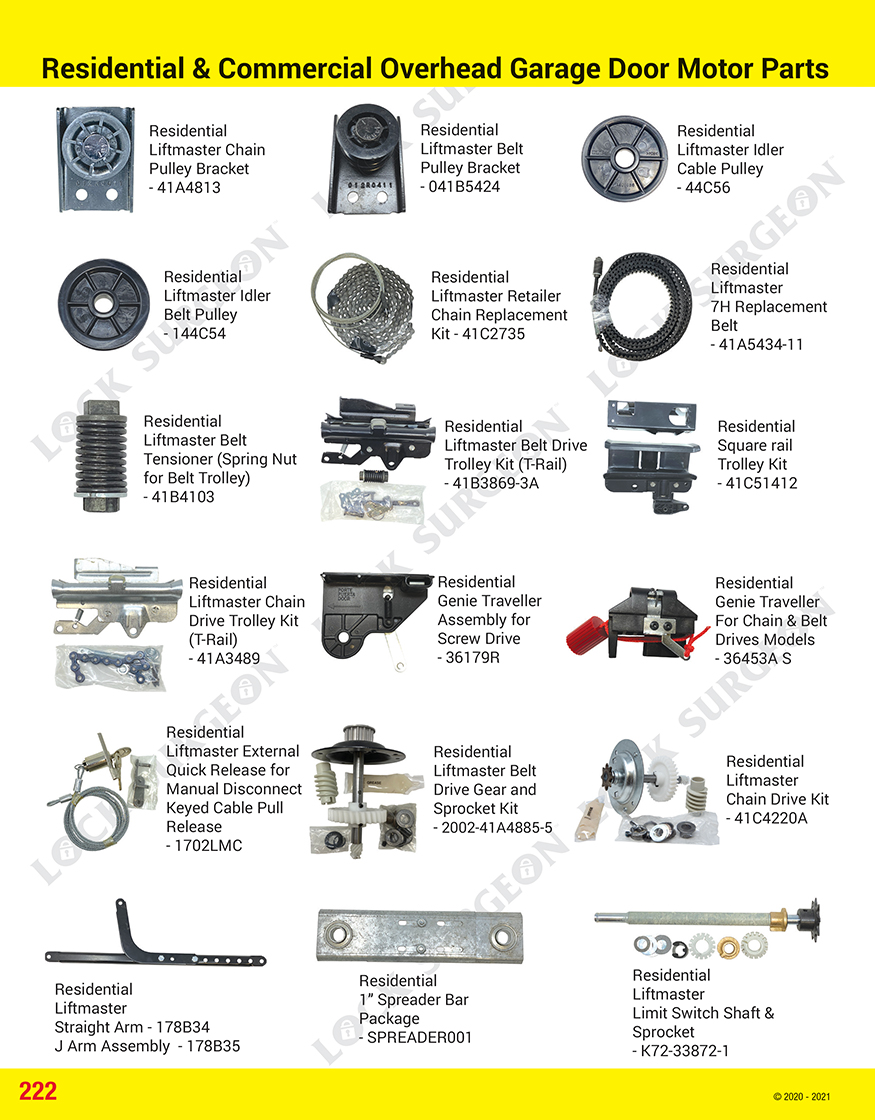

Residential & Commercial Overhead Garage Door Motor Parts
RESIDENTIAL MOTOR PARTS
- Residential - Liftmaster Chain Pulley Bracket - 41A4813.
- Residential - Liftmaster Belt Pulley Bracket - 041B5424.
- Residential - Liftmaster Idler Cable Pulley - 44C56.
- Residential - Liftmaster Idler Belt Pulley - 144C54.
- Residential - Liftmaster Retailer Chain Replacement Kit - 41C2735.
- Residential - Liftmaster 7H Replacement Belt - 41A5434-11.
- Residential - Liftmaster Belt Tensioner (Spring Nut for Belt Trolley) - 41B4103.
- Residential - Liftmaster Belt Drive Trolley Kit (T-Rail) - 41B3869-3A.
- Residential - Square rail Trolley Kit - 41C51412.
- Residential - Liftmaster Chain Drive Trolley Kit (T-Rail) - 41A3489.
- Residential - Genie Traveller Assembly for Screw Drive - 36179R.
- Residential - Genie Traveller for Chain & Belt Drives Models - 36453A S.
- Residential - Liftmaster External Quick Release for Manual Disconnect Keyed Cable Pull Release - 1702LMC.
- Residential - Liftmaster Belt Drive Gear and Sprocket Kit - 2002-41A4885-5.
- Residential - Liftmaster Chain Drive Kit - 41C4220A.
- Residential - Liftmaster Straight Arm - LS178B34 - J Arm Assembly - 178B35.
- Residential - 1” Spreader Bar Package - SPREADER001.
- Residential - Liftmaster Limit Switch Shaft & Sprocket - K72-33872-1.

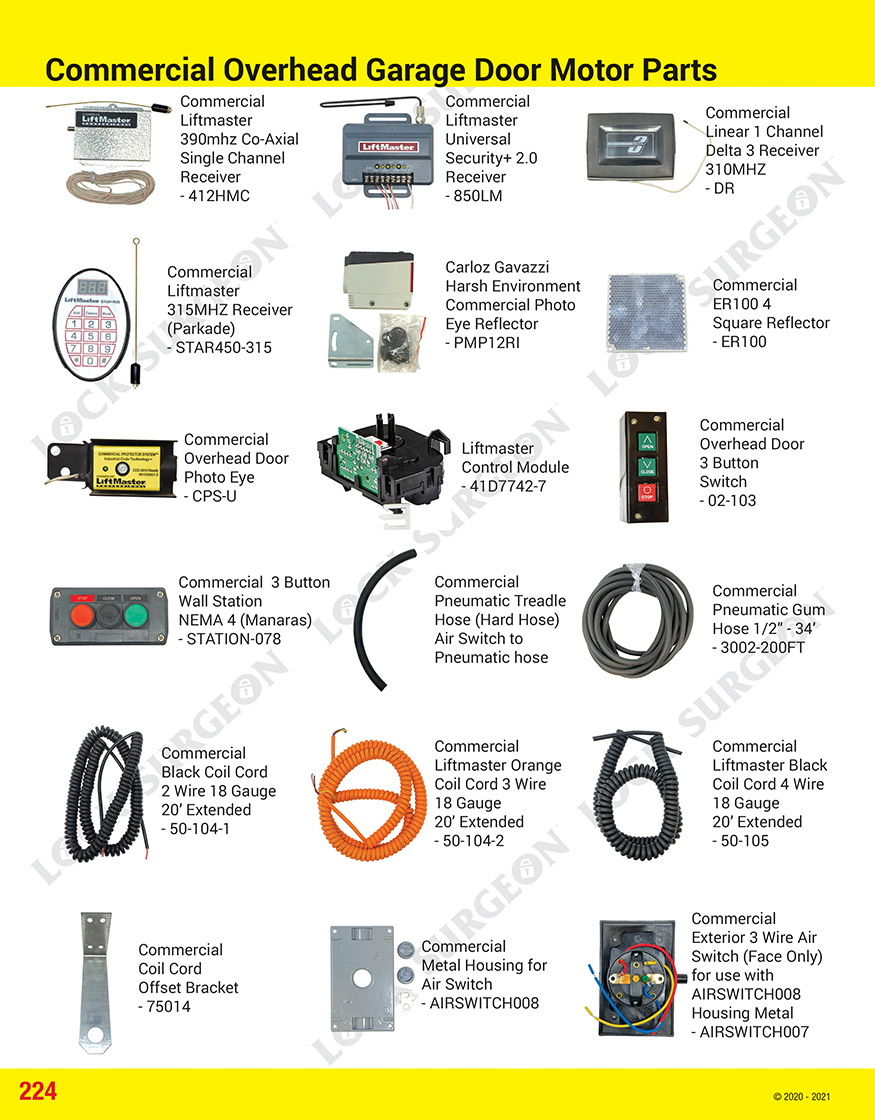

Commercial Overhead Garage Door Motor Parts
COMMERCIAL OVERHEAD GARAGE DOOR MOTOR PARTS:
- Commercial - Liftmaster 390mhz Co-Axial Single Channel Receiver - 412HMC.
- Commercial - Liftmaster Universal Sec + 2.0 Receiver - 850LM.
- Commercial - Linear 1 Channel Delta 3 Receiver 310MHZ - DR.
- Commercial - Liftmaster 315MHZ Receiver (Parkade) - STAR450-315.
- Carloz Gavazzi - Harsh Environment Commercial Photo Eye Reflector - PMP12RI.
- Commercial - ER100 4 Square Reflector - ER100.
- Commercial - Overhead Door Photo Eye - CPS-U.
- LiftMaster - Control Module - 41D7742-7
- Commercial - Overhead Door 3 Button Switch - 02-103.
- Commercial - 3 Button Wall Station NEMA 4 (Manaras) - STATION-078.
- Commercial - Pneumatic Treadle Hose (Hard Hose) Air Switch to Pneumatic hose.
- Commercial - Pneumatic Gum Hose 1/2” - 34’ - 3002-200FT.
- Commercial - Black Coil Cord 2 Wire 18 Gauge 20’ Extended - 50-104-1.
- Commercial - LiftMaster Orange Coil Cord 3 Wire 18 Gauge 20' Extended - 50-104-2.
- Commercial - Coil Cord Offset Bracket - 75014.
- Commercial - Metal Housing for Air Switch - AIRSWITCH008.
- Commercial - Exterior 3 Wire Air Switch Face Only for Use With AIRSWITCH008 Housing Metal - AIRSWITCH007.

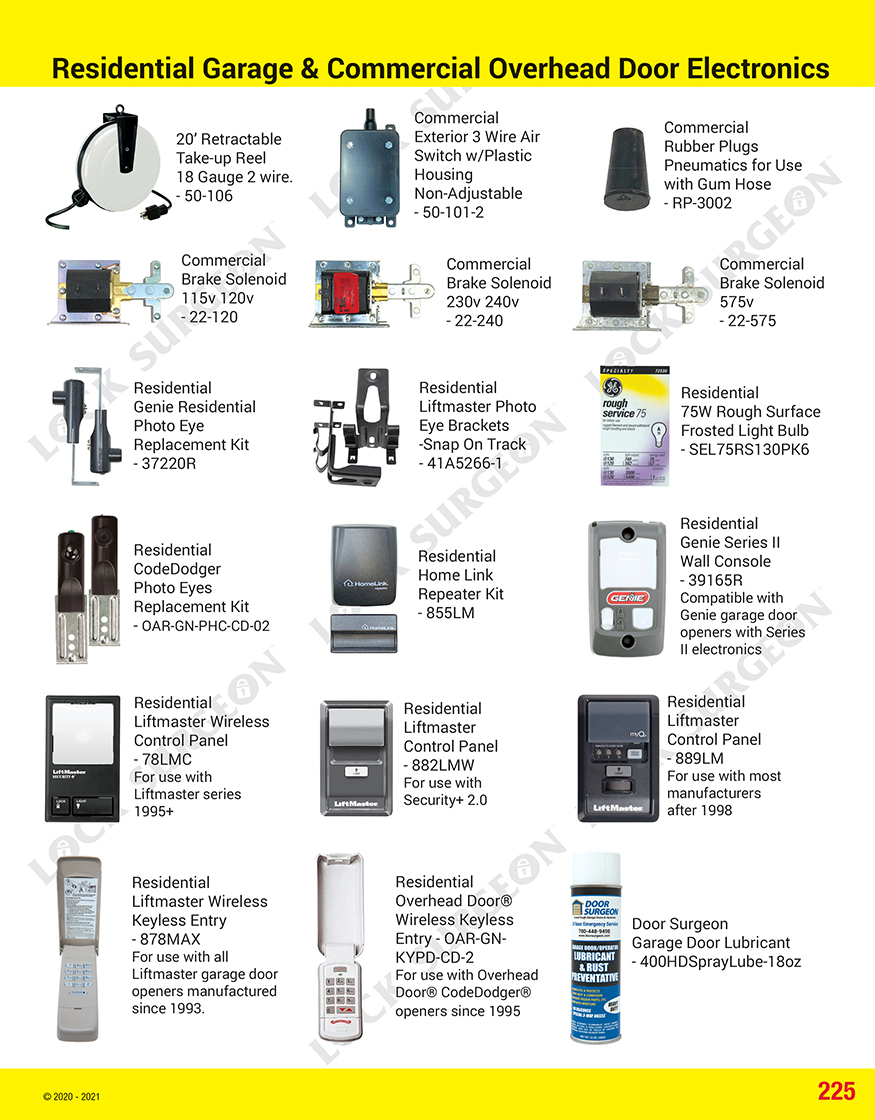

Residential Garage & Commercial Overhead Door Opener Parts
RESIDENTIAL & COMMERCIAL GARAGE DOOR OPENER PARTS:
COMMERCIAL:
- Commercial - 20' Retractable Take-up Reel 18 Gauge 2 Wire - 50-106.
- Commercial - Exterior 3 Wire Air Switch With Plastic Housing Non-Adjustable - 50-101-2.
- Commercial - Rubber Plugs Pnuematics for Use with Gum Hose - RP-3002.
- Commercial - Brake Solenoid - 115v 120v - 22-120.
- Commercial - Brake Solenoid - 230v 240v - 22-240.
- Commercial - Brake Solenoid - 575v - 22-575.
RESIDENTIAL:
- Residential - Genie Residential Photo Eye Replacement Kit - 37220R.
- Residential - Liftmaster - Photo Eye Brackets - Snap On Track - 41A5266-1.
- Residential - 75W Rough Surface - Frosted Light Bulb - SEL75RS130PK6.
- Residential CodeDodger Photo Eyes Replacement Kit.
- Residential - Home Link Repeater Kit - 855LM.
- Residential - Genie Series II Wall Console - 39165R. - Compatible with Genie garage door openers with series II electronics.
- Residential - LiftMaster Wireless Control Panel - 78LMC. - For use with LiftMaster series 1995 and newer.
- Residential - LiftMaster Control Panel - 882LMW. - For use with Security+ 2.0 systems.
- Residential - LiftMaster Control Panel - 889LM. - For use with most manufacturers after 1998.
- Residential - LiftMaster Wireless Keyless Entry - 878MAX. - For use with all LiftMaster garage door openers manufactured since 1998.
- Residential - Overhead Door Wireless Keyless Entry - OAR-GN-KYPD-CD-2. - For use with Overhead door CodeDodger openers 1995 and newer.
- Door Surgeon Garage Door Lubricant - 400HDSprayLube-18oz.

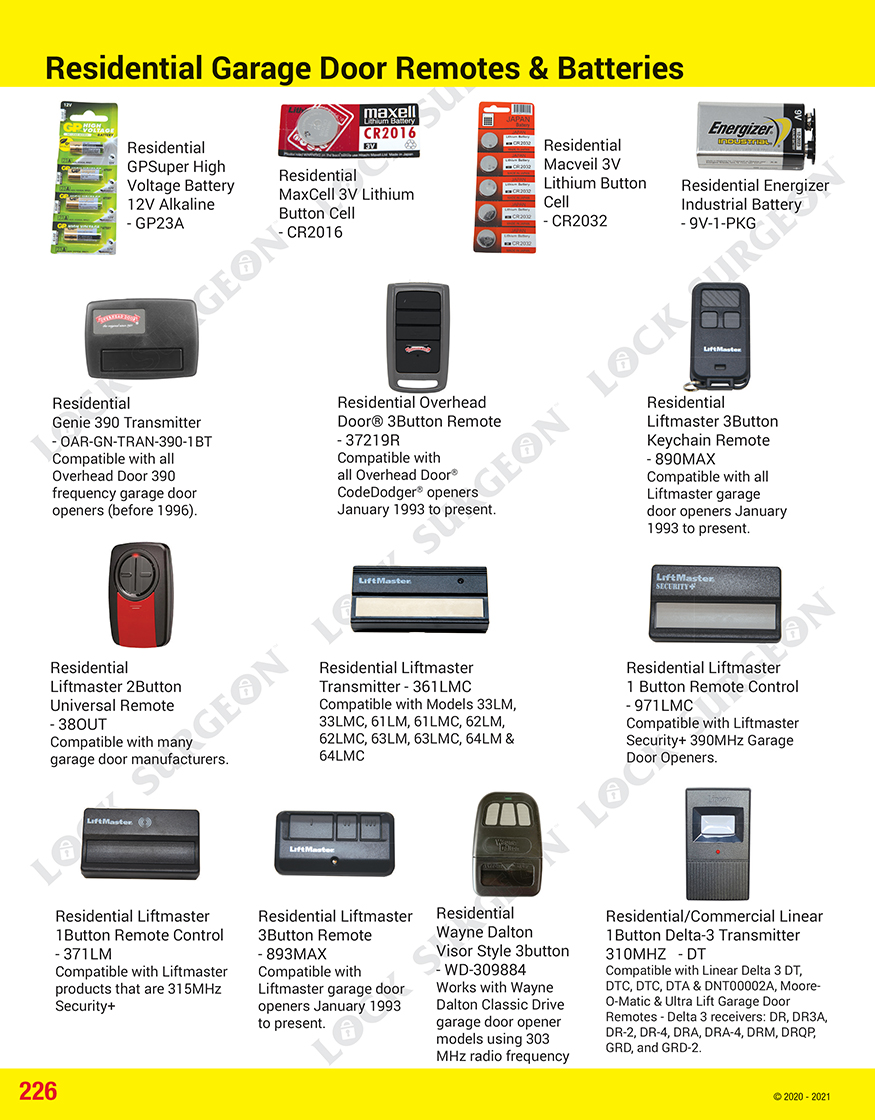

Residential Garage Door Remotes & Batteries
RESIDENTIAL GARAGE DOOR REMOTES:
- Residential - GPSuper High Voltage Battery - 12V Alkaline - GP23A.
- Residential - MaxCell 3V Lithium Button Cell - CR2016.
- Residential - Macveil 3V Lithium Button Cell - CR2032.
- Residential - Renata 3V Lithium Button Cell - CR2450.
- Residential - Energizer Industrial Battery - 9V-1-PKG.
- Residential - Genie 390 Transmitter - OAR-GN-TRAN-390-1BT. - Compatible with all Overhead Door 390 frequency garage door openers before 1996.
- Residential - Overhead Door 3 Button Remote - 37219R. - Compatible with all Overhead Door CodeDodger openers January 1993 to present.
- Residential - LiftMaster 3 button keychain remote - 890MAX. Compatible with all LiftMaster garage door openers January 1993 to present.
- Residential - LiftMaster 2 Button Universal Remote - 38OUT. Compatible with many garage door manufacturers.
- Residential - Liftmaster Transmitter - 361LMC. Compatible with models 33LM, 33LMC, 61LM, 61LMC, 62LM, 62LMC, 63LM, 63LMC, 64LM & 64LMC.
- Residential - Liftmaster 1 Button Remote Control - 971LMC. Compatible with LiftMaster Security+ 390MHz garage door openers.
- Residential - Liftmaster 1 Button Remote Control - 371LM. Compatible with LiftMaster products that are 315MHz Security+.
- Residential - Liftmaster 3 Button Remote - 893MAX. Compatible with LiftMaster garage door openers January 1993 to present.
- Residential - Wayne Dalton Visor Style 3 Button - WD-309884. - Works with Wayne Dalton classic drive garage door opener models using 303MHz radio frequency.
- Residential/Commercial - Linear 1 Button Delta-3 Transmitter 310MHZ. - DT Compatible with Linear Delta 3 DT, DTC, DTA & DN-T00002A. Moore-O-Matic & Ultra Lift Garage Door Remotes - Delta 3 receivers: DR, DR3A, DR-2, DR-4, DRA, DRA-4, DRM, DRQP, GRD & GRD-2.
Residential Garage Door Drums & Commercial Overhead Door Drums
STANDARD LIFT DRUMS 1" & 1-1/4" BORE
- D400-96 Cable Drums - Residential - in stock - pair - 12006.
- D400-144 Cable Drums 1” Bore c/w 1/4” Keyway - Residential - in stock - pair - 12007.
- D525-216 Cable Drums 1” Bore c/w 1/4” Keyway - in stock - pair - 12009.
- D525-216 Cable Drums 1-1/4” Bore c/w 1/4” Keyway - pair - 12009A.
- D800-384 Cable Drums 1” Bore c/w 1/4” Keyway - in stock - pair - 12013.
- D800-384 Cable Drums 1-1/4” Bore c/w 1/4” Keyway - pair - 12042.
HIGH LIFT DRUMS 1" & 1-1/4" BORE
- D400-54 Cable Drums 1” Bore c/w 1/4” Keyway - Residential/Commercial - in stock - 12018.
- D525-54 Cable Drums 1” Bore c/w 1/4” Keyway - Residential/Commercial - in stock - 12010.
- D525-54 Cable Drums 1-1/4” Bore c/w 1/4” Keyway - 12010A.
- D575-120 Cable Drums 1” Bore c/w 1/4” Keyway - in stock - 12011.
- D575-120 Cable Drums 1-1/4”” Bore c/w 1/4” Keyway - 12011A.
- D800-120 Cable Drums 1-1/4” Bore c/w 1/4” Keyway - 12046.
- D6375-164 Cable Drums 1-1/4” Bore c/w 1/4” Keyway - 12040.

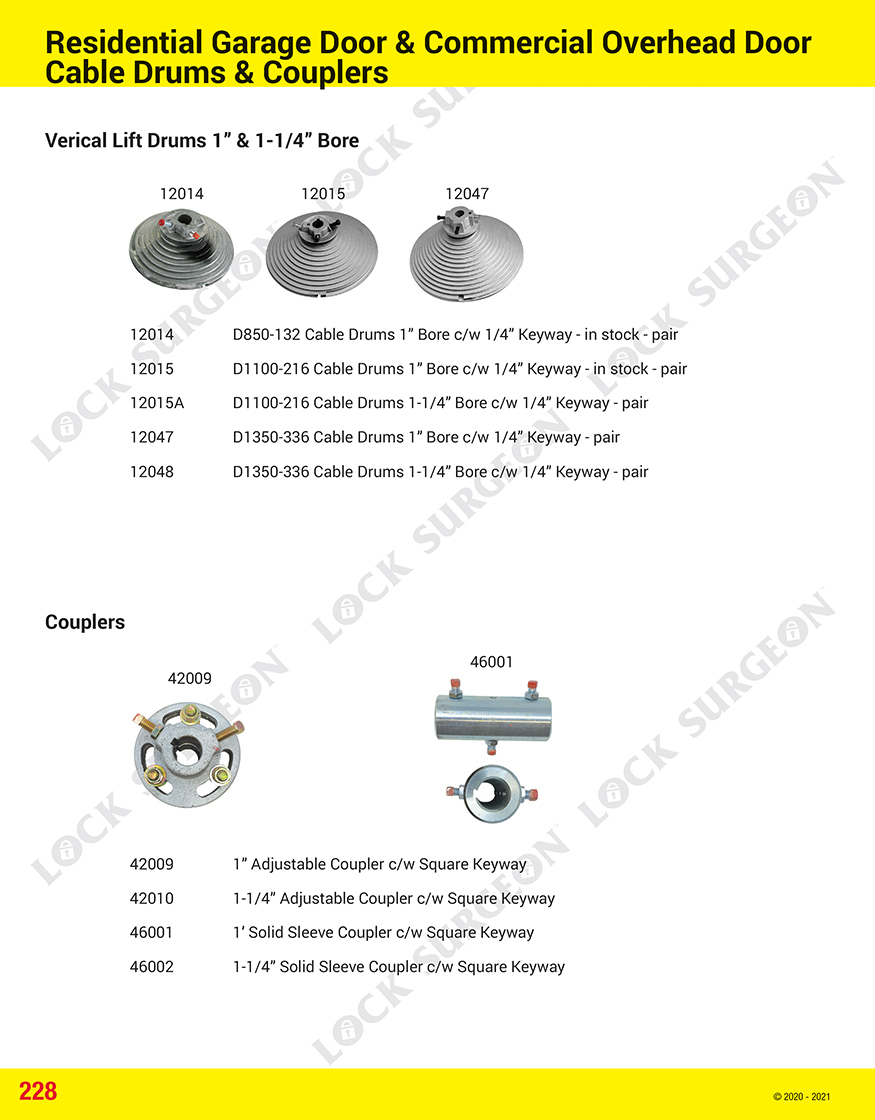

Residential Garage Door & Commercial Overhead Door Cable Drums & Couplers
CABLE DRUMS
- D850-132 Cable Drums 1” Bore c/w 1/4” Keyway - in stock - pair - 12014.
- D1100-216 Cable Drums 1” Bore c/w 1/4” Keyway - in stock - pair - 12015.
- D1100-216 Cable Drums 1-1/4” Bore c/w 1/4” Keyway - pair - 12015A.
- D1350-336 Cable Drums 1” Bore c/w 1/4” Keyway - pair - 12047.
- D1350-336 Cable Drums 1-1/4” Bore c/w 1/4” Keyway - pair - 12048.
COUPLERS
- 1” Adjustable Coupler c/w Square Keyway - 42009.
- 1-1/4” Adjustable Coupler c/w Square Keyway - 42010.
- 1’ Solid Sleeve Coupler c/w Square Keyway - 46001.
- 1-1/4” Solid Sleeve Coupler c/w Square Keyway - 46002.

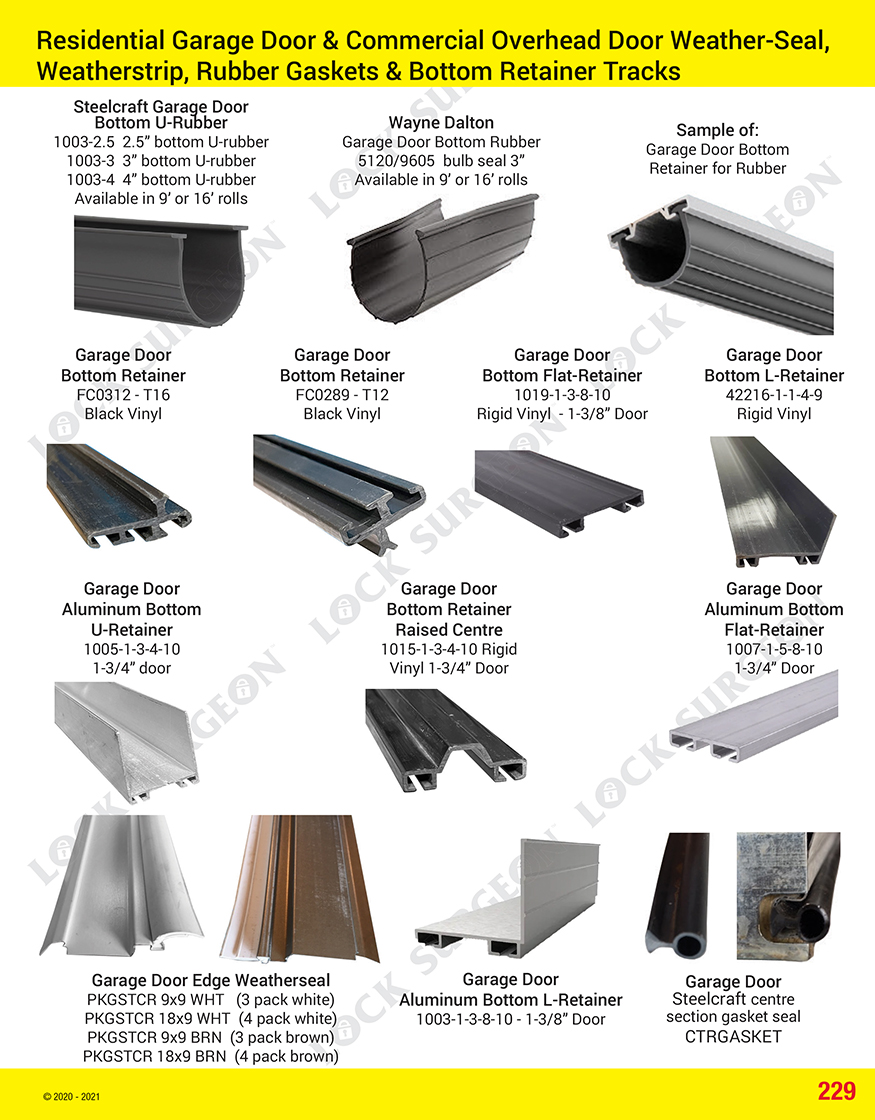

Residential Garage Door & Commercial Overhead Door Weather-Seal,
Weatherstrip, Rubber Gaskets & Bottom Retainer Tracks
BOTTOM RUBBER:
- SteelCraft Garage Door Bottom U-Rubber:
1003-2.5 2.5" bottom U-Rubber.
1003-3 3" bottom U-Rubber.
1003-4 4" bottom U-Rubber.
Available in 9' or 16' rolls.
Wayne Dalton - Garage door bottom rubber - 5120/LS9605 bulb seal 3".
Available in 9' or 16' rolls.
Sample of Garage door bottom retainer for rubber.
BOTTOM RETAINER:
- Garage Door Bottom Retainer:
FC0312-T16 Black vinyl.
- Garage Door Bottom Retainer:
FC0289-T12 Black vinyl.
- Garage Door Bottom Flat-Retainer:
1019-1-3-8-10 Rigid vinyl - 1-3/8" door.
- Garage Door Bottom L-Retainer:
42216-1-1-4-9 Rigid vinyl.
- Garage Door Aluminum Bottom U-Retainer:
1005-1-3-4-10 1-3/4" door.
- Garage Door Bottom Retainer Raised Centre:
1015-1-3-4-10 Rigid vinyl 1-3/4" door.
- Garage Door Aluminum Bottom Flat-Retainer
1007-1-5-8-10 1-3/4" door.
- Garage Door Aluminum Bottom L-Retainer
1003-1-3-8-10 1-3/8" door.
GARAGE DOOR EDGE WEATHER SEAL:
- PKGSTCR 9x9 WHT (3 pack white).
- PKGSTCR 18x9 WHT (4 pack white).
- PKGSTCR 9x9 BRN (3 pack brown).
- PKGSTCR 18x9 BRN (4 pack brown).
RUBBER GASKET:
- Garage Door Gasket
CTRGASKET SteelCraft centre section gasket seal.
WARRANTY & Return Policy
Sometimes Things Happen
No one likes it when things go wrong, no one more than us, but if it does, check out our Warranty Pages.
Click any one of the below logos for direct access to one of our service repair and installation providers.
Not all areas have local mobile service. Service call travel charges may apply.
