Padlocks, Trailer & Wheel Security Locks

Providing phone order support to help you find the right padlocks trailer & wheel security lock configuration:

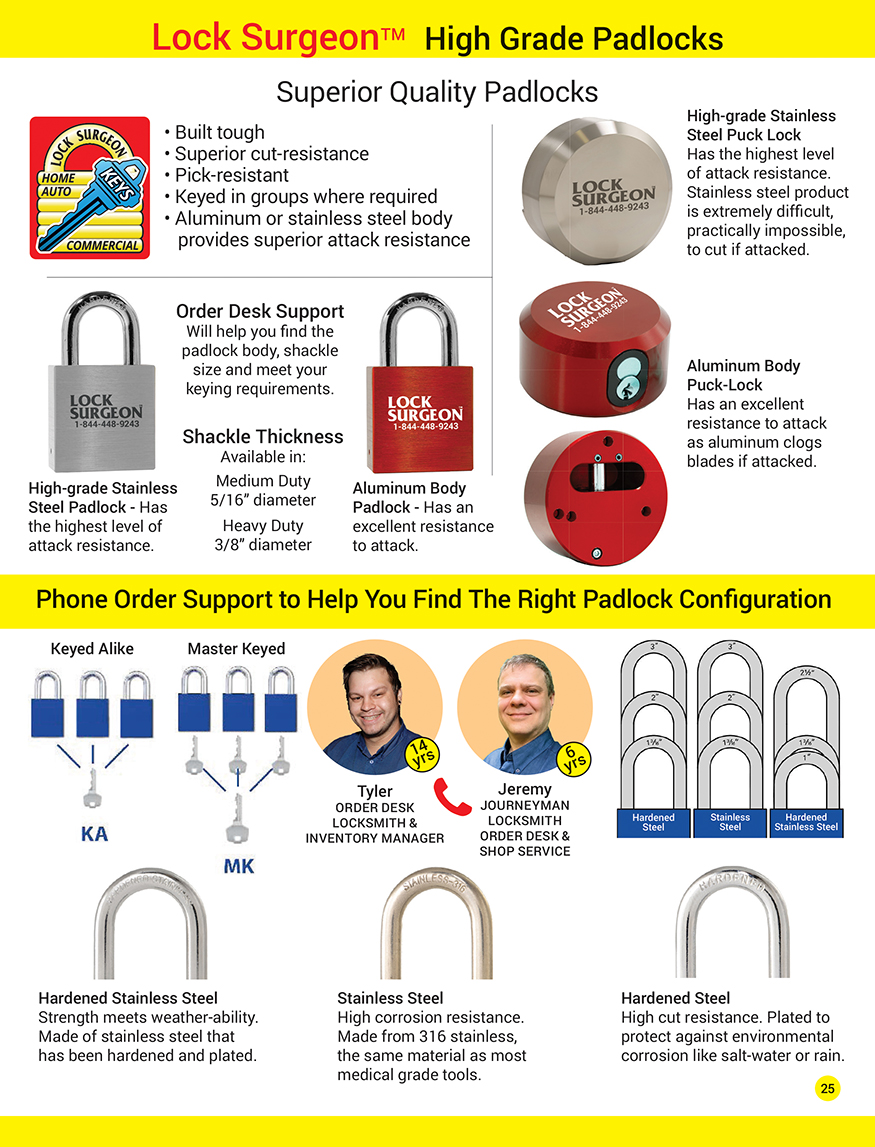

Padlocks:
- Built tough.
- Superior cut-resistance.
- Pick- resistant.
- Keyed in groups where required.
- Aluminum or stainless steel body provides superior attack resistance.
- Order desk support, will help you find the padlock body, shackle, size and meet your keying requirements.
- Shackle thickness available in: Medium duty (5/16" diameters) and Heavy duty (3/8" diameters).
- High-grade stainless steel padlocks - has highest level of attack resistance.
- Aluminum body padlocks - has an excellent resistance to attack.

Puck Locks:
- High-grade stainless steel puck lock has the highest level of attack resistance. Stainless steel product is extremely difficult, practically impossible to cut if attacked.
- Aluminum body puck lock has an excellent resistance to attack as aluminum clogs blades if attacked.

Phone Order Support to Help You Find The Right Padlock Configuration In:
- Hardened Stainless Steel Padlock Shackle - Strength meets weather-ability. Made of stainless steel that has been hardened and plated.
- Hardened Stainless Steel Padlock Shackle - High corrosion resistance. Made from 316 stainless steel, the same material as most medical grade tools.
- Hardened Steel Padlock Shackle - High cut-resistance. Plated to protect against environmental corrosion like salt-water or rain.

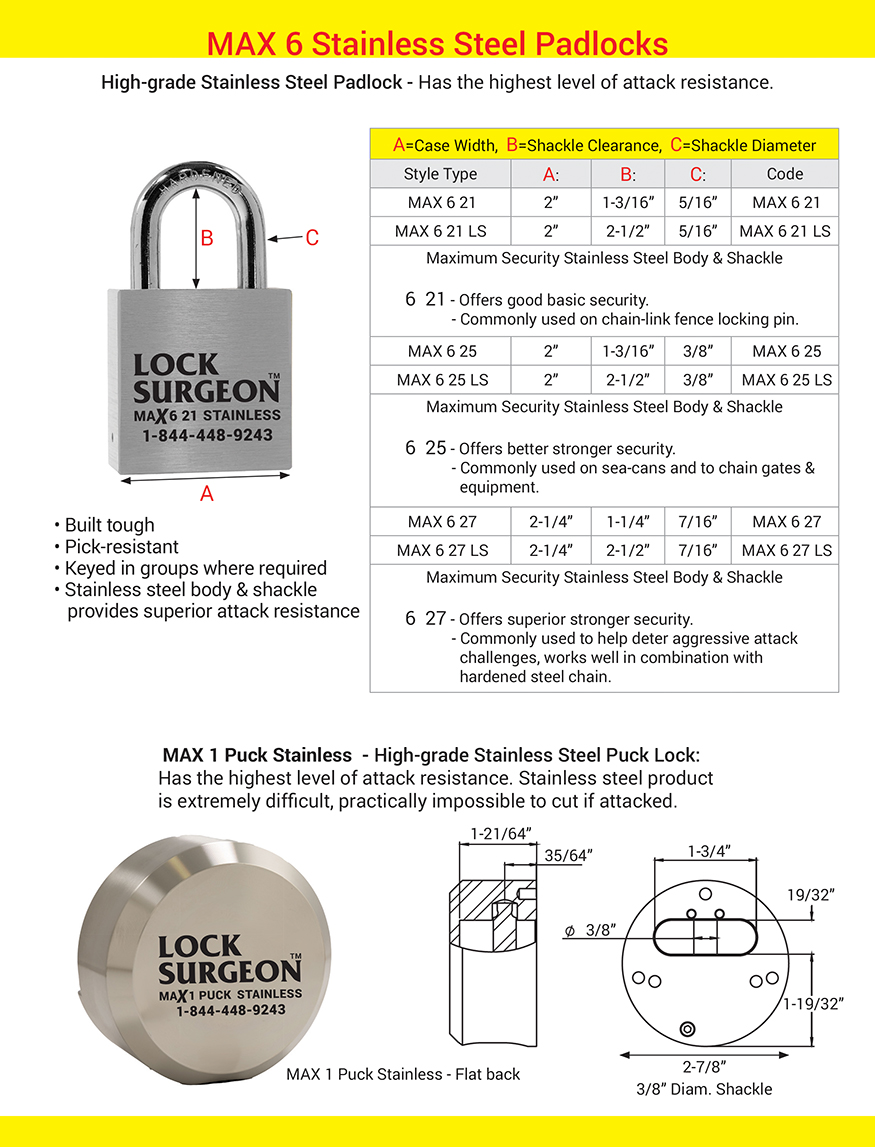

The Best of Our High-grade Stainless Steel Padlocks

High-grade Stainless Steel Padlocks:
- Built tough.
- Pick resistant.
- Keyed in groups where required.
- Stainles steel body & hardened steel shackle provides superior attack resistance.

Part Numbers:
- MAX 6 21, (2" case width), (1-3/16" shackle clearance), (5/16" shackle diameter).
- MAX 6 21 LS, (2" case width), (2-1/2" shackle clearance), (5/16" shackle diameter).
- Offers good basic security.
- Commonly used on chain-link fence locking pins.

- MAX 6 25, (2" case width), (1-3/16" shackle clearance), (3/8" shackle diameter).
- MAX 6 25 LS, (2" case width), (2-1/2" shackle clearance), (3/8" shackle diameter).
- Offers better, stronger security.
- Commonly used on sea-cans and to chain gates & equipment.

- MAX 6 27, (2-1/4" case width), (1-3/16" shackle clearance), (7/16" shackle diameter).
- MAX 6 27 LS, (2-1/4" case width), (2-1/2" shackle clearance), (7/16" shackle diameter).
- Offers superior, stronger security.
- Commonly used to help deter aggressive attack challenges, works well in combination with hardened steel chain.

MAX 1 Puck Stainless - High-grade Stainless Steel Puck Lock:
- Has the highest level of attack resistance. Stainless steel product is extremely difficult, practically impossible to cut if attacked.
- Flat back.

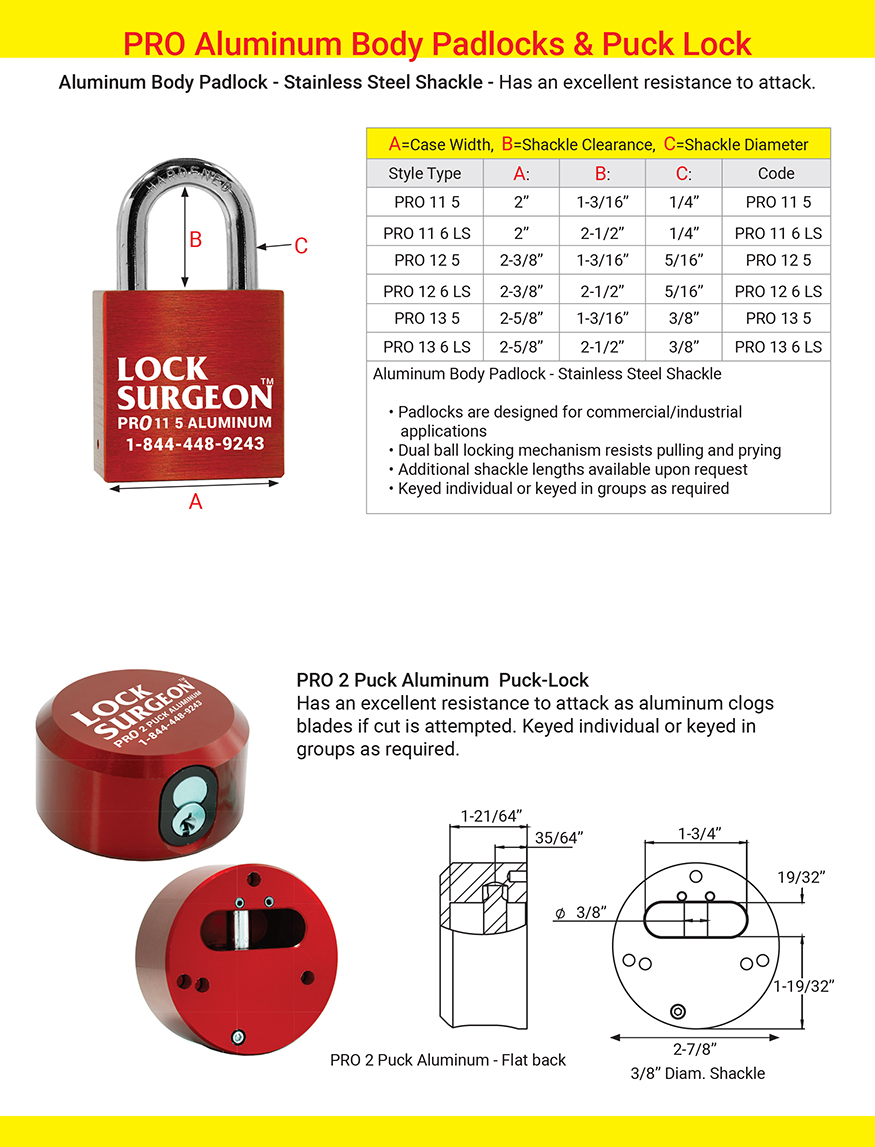

High-grade Aluminum Padlocks With Hardened Stainless Steel Shackle

Aluminum Body Padlock - Hardened Stainless Steel Shackle:
- Padlocks are designed for commercial/industrial applications.
- Dual ball locking mechanism resists pulling and prying.
- Additional shackle lengths available upon request.
- Keyed individual or keyed in groups as required.
Part Numbers:
- PRO 11 5, (2" case width), (1-3/16" shackle clearance), (1/4" shackle diameter).
- PRO 11 6 LS, (2" case width), (2-1/2" shackle clearance), (1/4" shackle diameter).
- PRO 12 5, (2-3/8" case width), (1-3/16" shackle clearance), (5/16" shackle diameter).
- PRO 12 6 LS, (2-3/8" case width), (2-1/2" shackle clearance), (5/16" shackle diameter).
- PRO 13 5, (2-5/8" case width), (1-3/16" shackle clearance), (3/8" shackle diameter).
- PRO 13 6 LS, (2-5/8" case width), (2-1/2" shackle clearance), (3/8" shackle diameter).

PRO 2 Puck Aluminum - Puck Lock:
- Has an excellent resistance to attack as aluminum clogs blades if cut is attempted. Keyed individual or keyed in groups as required.
- See chart above for measurments.

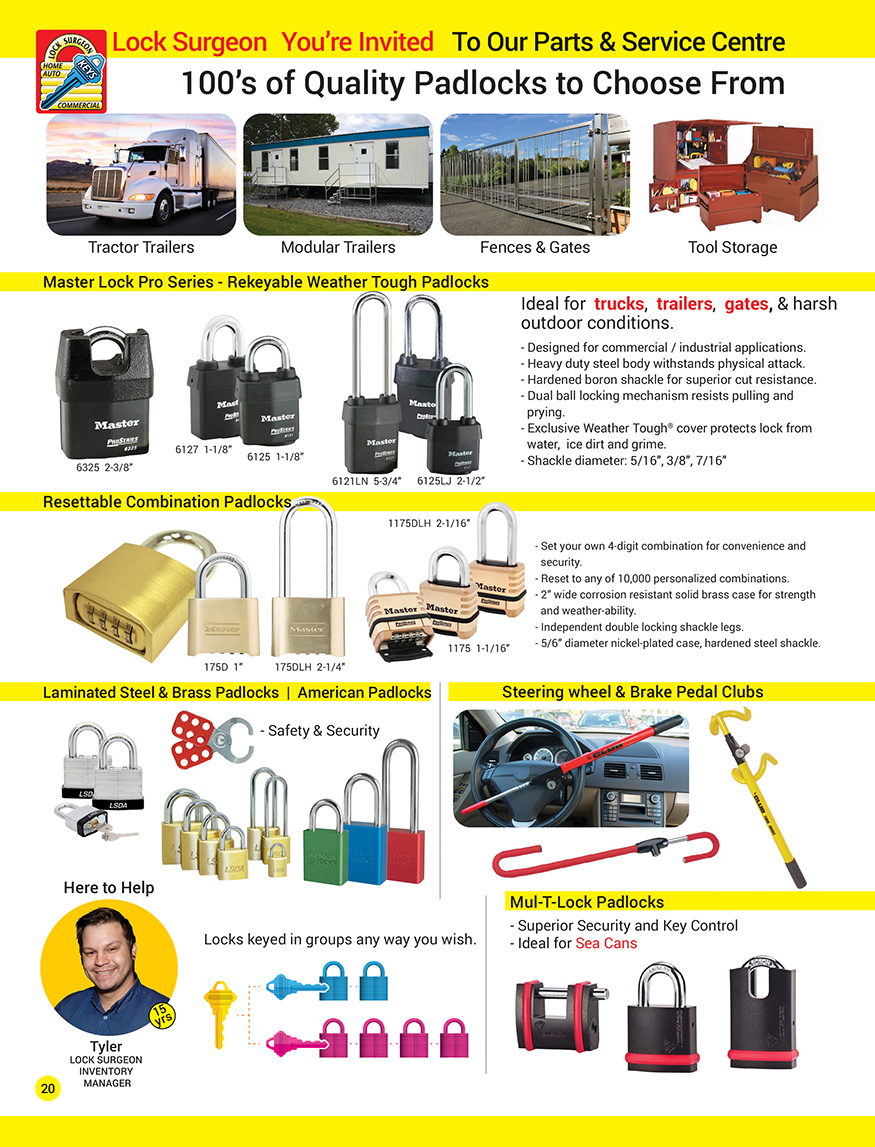

REKEYABLE, RESETTABLE, LAMINATED STEEL & BRASS PADLOCKS:
- Padlocks for tractor trailers, modular trailers, fences, gates & tool storage.
Master Lock ProSeries® - Rekeyable Weather Tough Padlocks:
- Ideal for trucks, trailers, gates & harsh weather conditions.
- Designed for commercial / industrial applications.
- Heavy duty steel body withstands physical attack.
- Dual-ball locking mechanism resists pulling and prying.
- Exclusive weather-tough® cover protects lock from water, ice, dirt and grime.
- Shackle diameter: 5/16", 3/8" & 7/16".
Part Number:
- 6325, (2-3/8" shackle height).
- 6127, (1-1/8" shackle height).
- 6125, (1-1/8" shackle height).
- 6121LN, (5-3/4" shackle height).
- 66125LJ, (2-1/2" shackle height).

Resettable Combination Padlocks:
- Set your own 4-digit combination for convenience and security.
- Reset to any of 10,000 personalized combinations.
- 2” wide corrosion resistant solid brass case for strength and weather-ability.
- Independent double locking shackle legs.
- 5/6” diameter nickel-plated case, hardened steel shackle.
Part Number:
- 175D, (1" shackle height).
- 175DLH, (2-1/4" shackle height).
- 1175, (1-1/16" shackle height).
- 1175DLH, (2-1/16" shackle height).

Laminated Steel & Brass Padlocks:
- Safety and security.
- Locks keyed in groups any way you wish.

Steering Wheel & Brake Pedal Clubs.

Mul-T-Lock Padlocks:
- Superior security and key control.
- Ideal for sea-cans.

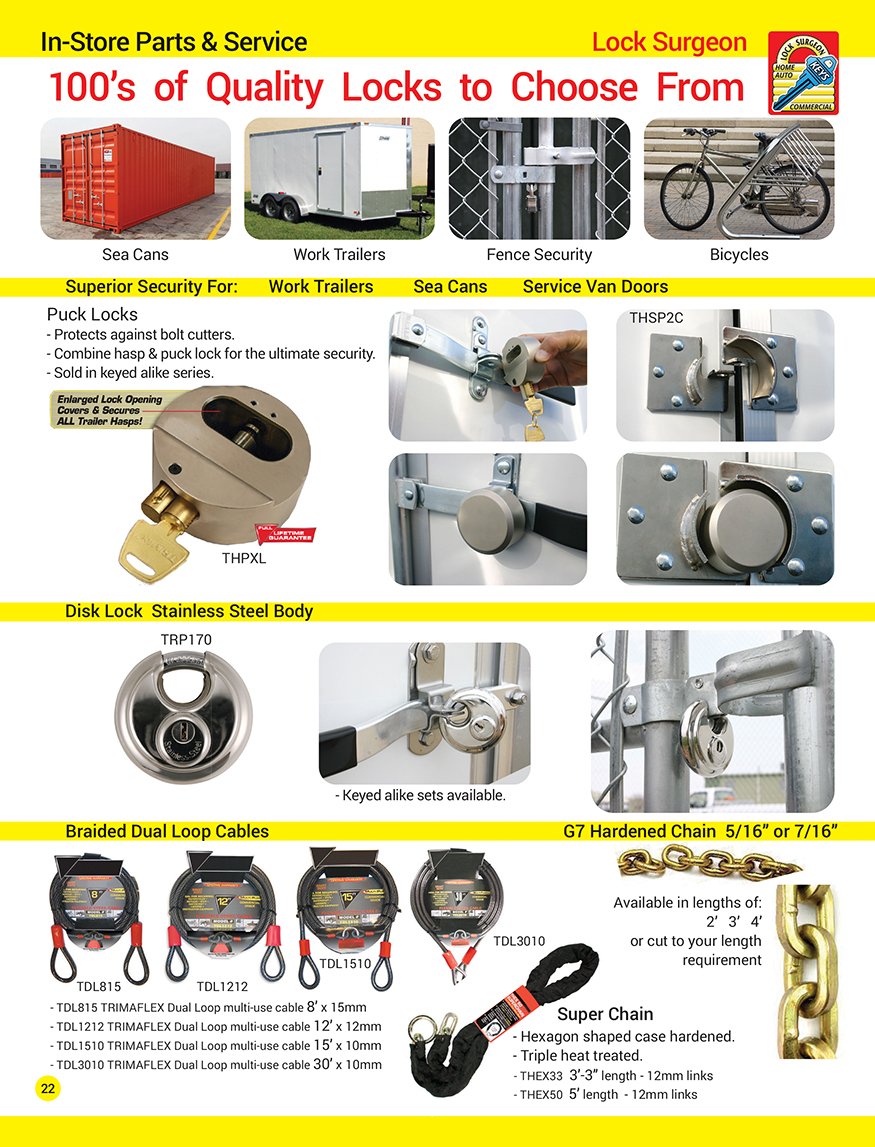

SUPERIOR SECURITY PADLOCK SOLUTIONS FOR WORK TRAILERS, SEA-CANS & SERVICE VAN DOORS:
Puck Locks:
- Protect against bolt-cutters.
- Combine hasp & puck lock for the ultimate security.
- Sold in keyed alike series.
- Enlarged lock opening covers & secures all trailer hasps.
Part Number:
- THPXL.
- THSP2C.

Disk Lock Stainless Steel Body:
- Keyed alike sets available.
Part Number:
- TRP170.

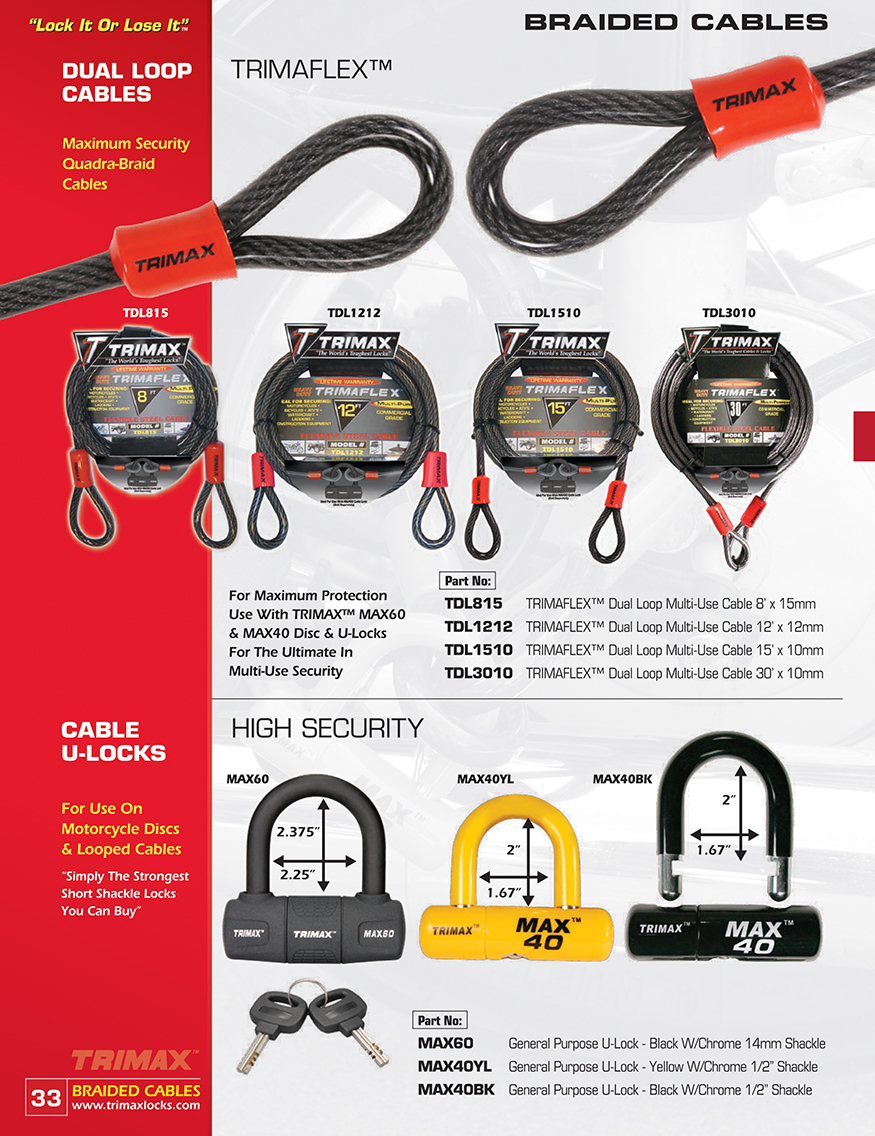

Braided Dual Loop Cables:
Part Number:
- TDL815 - TRIMAFLEX dual-loop multi-use cable (8' x 15mm).
- TDL1212 - TRIMAFLEX dual-loop multi-use cable (12' x 12mm).
- TDL1510 - TRIMAFLEX dual-loop multi-use cable (15' x 10mm).
- TDL3010 - TRIMAFLEX dual-loop multi-use cable (30' x 10mm).

G7 Hardened Chain - 5/16" or 7/16":
- Available in lengths of 2', 3' or 4' or cut to your length requirements.

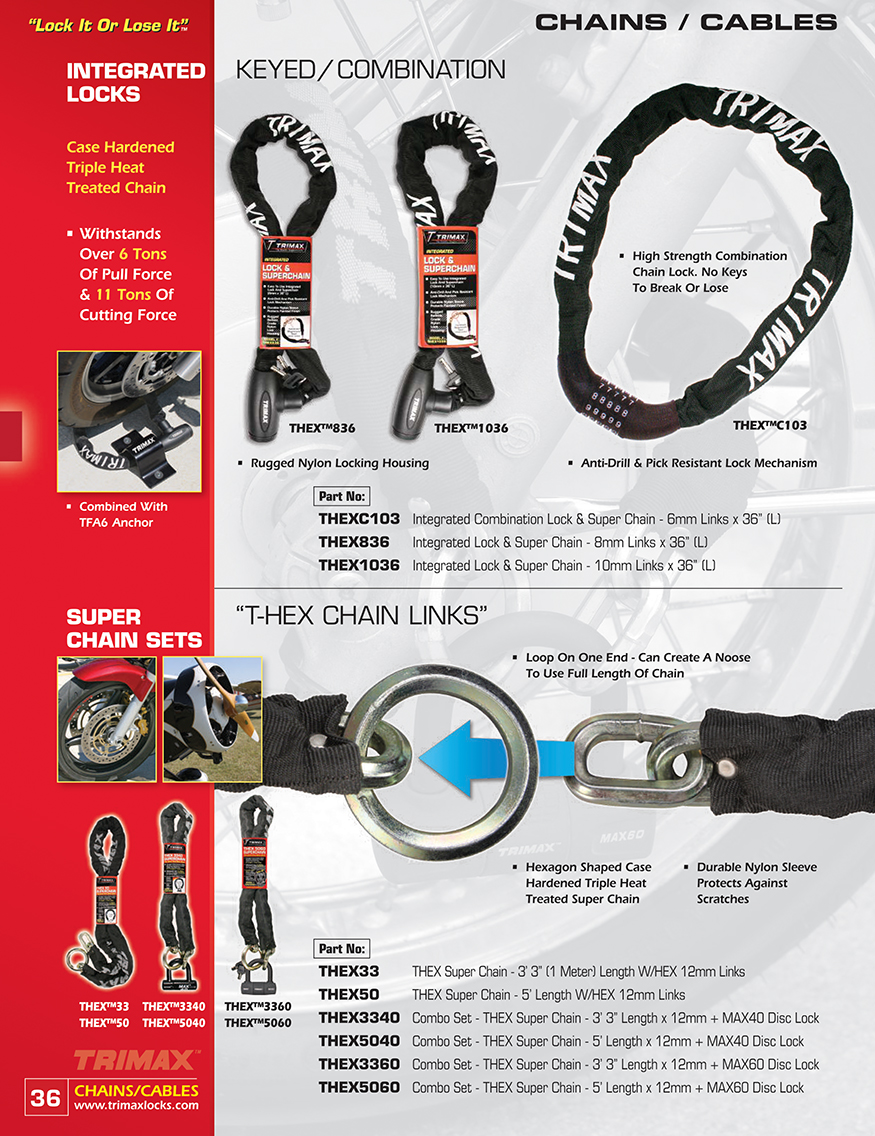

Super Chain:
- Hexagon shaped case hardened chain.
- Triple heat treated chain.
Part Number:
- THEX33 3'-3" length (12mm links).
- THEX50 5' length (12mm links).

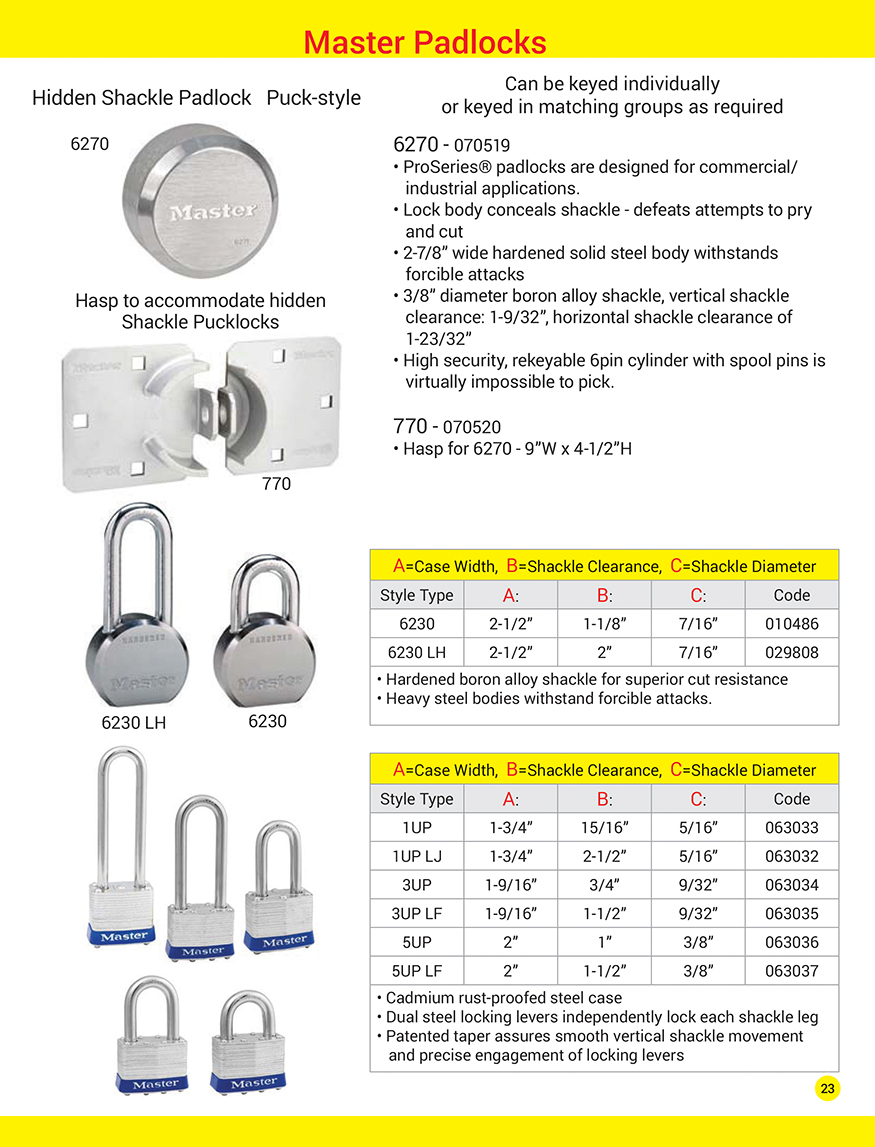

Our favorite master padlock & puck lock Solutions
several other padlock size options are available:

- Can be keyed individually or keyed in matching groups as required.

Hidden Shackle Padlock Puck-style:
- 6270.

Hasps:
- accommodates hidden shackle puck locks.
- 770 (070520) (9"W x 4-1/2"H) for item 6270.

Part Number:
- 6270 (070519) - ProSeries® padlocks are designed for commercial / industrial applications.
- Lock body conceals shackle - defeats attempts to pry and cut.
- 2-7/8" wide hardened solid steel body withstands forcible attacks.
- 3/8" diameter boron alloy shackle, vertical shackle clearance: 1-9/32", horizontal shackle clearance of 1-23/32".
- High security, rekeyable 6pin cylinder with spool pins is virtually impossible to pick.

Part Numbers:
- 6230 (2-1/2" case width), (1-1/8" shackle clearance), (7/16" shackle diamter), (010486).
- 6230LH (2-1/2" case width), (2" shackle clearance), (7/16" shackle diamter), (029808).
- Hardened boron alloy shackle for superior cut resistance.
- Heavy steel bodies withstand forcible attacks.

Part Numbers:
- 1UP (1-3/4" case width), (15/16" shackle clearance), (5/16" shackle diamter), (063033).
- 1UPLJ (1-3/4" case width), (2-1/2" shackle clearance), (5/16" shackle diamter), (063032).
- 3UP (1-9/16" case width), (3/4" shackle clearance), (9/32" shackle diamter), (063034).
- 3UPLF (1-9/16" case width), (1-1/2" shackle clearance), (9/32" shackle diamter), (063035).
- 5UP (2" case width), (1" shackle clearance), (3/8" shackle diamter), (063036).
- 5UPLF (2" case width), (1-1/2"" shackle clearance), (3/8" shackle diamter), (063037).
- Cadmium rust-proofed steel case.
- Dual-steel locking levers independently lock each shackle leg.
- Patented taper assures smooth vertical shackle movement and precise engagement of locking levers.

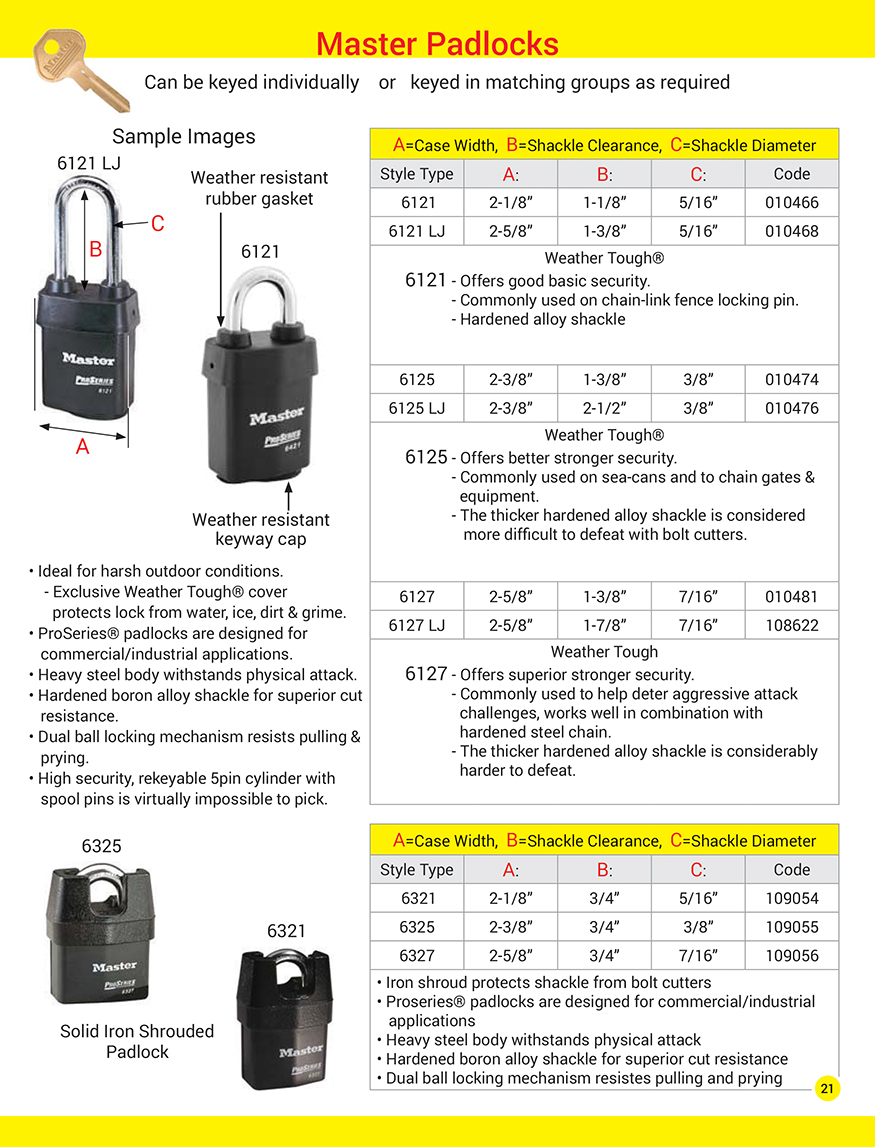

Weather Resistant Master Padlocks: Additional Sizes Available Keyed Individually or in Matching Groups as Required:

- Weather resistant rubber gasket.
- Weather resistant keyway cap.
- Ideal for harsh outdoor conditions. Exclusive Weather-tough® cover protects lock from water, ice, dirt & grime.
- ProSeries® padlocks are designed for commercial / industrial applications.
- Heavy steel body withstands physical attack.
- Hardened boron alloy shackle for superior cut resistance.
- Dual-ball locking mechanism resists pulling and prying.
- High security, rekeyable 5-pin cylinder with spool pin is virtually impossible to pick.

Part Number:
- 6121 (2-1/8" case width), (1-1/8" shackle clearance), (5/16" shackle diamter), (010466).
- 6121LJ (2-5/8" case width), (1-3/8" shackle clearance), (5/16" shackle diamter), (010468).
- Weather-tough® 6121 style offers good basic security. Commonly used on chain-link fence locking pin. Hardened alloy shackle.

Part Number:
- 6125 (2-3/8" case width), (1-3/8" shackle clearance), (3/8" shackle diamter), (010474).
- 6125LJ (2-3/8" case width), (2-1/2" shackle clearance), (3/8" shackle diamter), (010476).
- Weather-tough® 6125 style offers better stronger security. Commonly used on sea-cans and to chain gates and equipment. The thicker hardened alloy shackle is considered more difficult to defeat with bolt cutters.

Part Number:
- 6127 (2-5/8" case width), (1-3/8" shackle clearance), (7/16" shackle diamter), (010481).
- 6127LJ (2-5/8" case width), (1-7/8" shackle clearance), (7/16" shackle diamter), (108622).
- Weather-tough® 6127 style offers superior stronger security. Commonly used to help deter aggressive attack challenges, works well in combination with hardened steel chain. The thicker hardened alloy shackle is considerably harder to defeat.

Solid Iron Shrouded Padlocks:
- Iron shroud protects shackle from bolt cutters.
- ProSeries® padlocks are designed for commercial / industrial applications.
- Heavy steel body withstands physical attack.
- Hardened boron alloy shackle for superior cut resistance.
- Dual-ball locking mechanism resists pulling and prying.

Part Number:
- 6321 (2-1/8" case width), (3/4" shackle clearance), (5/16" shackle diamter), (109054).
- 6325 (2-3/8" case width), (3/4" shackle clearance), (3/8" shackle diamter), (109055).
- 6327 (2-5/8" case width), (3/4" shackle clearance), (7/16" shackle diamter), (109056).

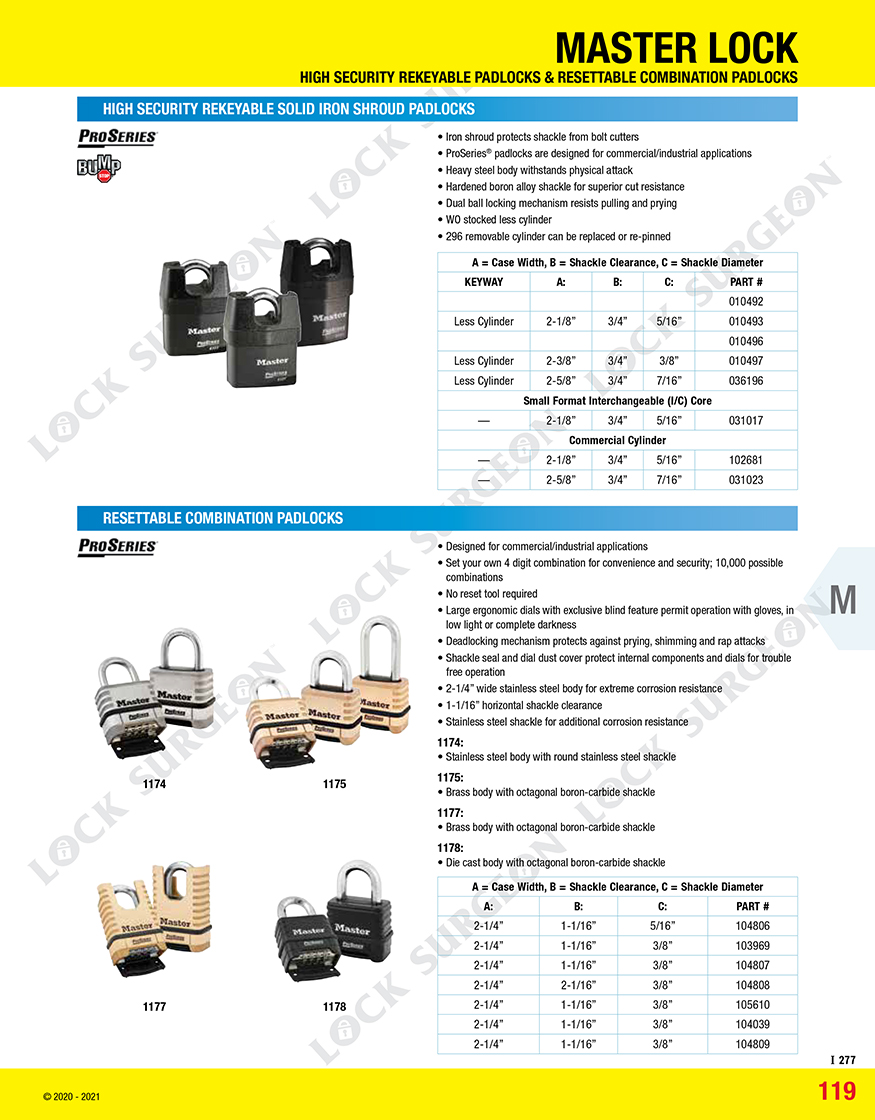

HIGH SECURITY REKEYABLE SOLID IRON SHROUD PADLOCKS
- Iron shroud protects shackle from bolt cutters.
- ProSeries® padlocks are designed for commercial/industrial applications.
- Heavy steel body withstands physical attack.
- Hardened boron alloy shackle for superior cut resistance.
- Dual ball locking mechanism resists pulling and prying.
- WO stocked less cylinder.
- 296 removable cylinder can be replaced or re-pinned.

KEYWAY - CASE WIDTH - SHACKLE CLEARANCE - SHACKLE DIAMETER
- Less Cylinder 2-1/8” 3/4” 5/16”.
- Less Cylinder 2-3/8” 3/4” 3/8”.
- Less Cylinder 2-5/8” 3/4” 7/16”.

SMALL FORMAT INTERCHANGEABLE (I/C) CORE
- 2-1/8” 3/4” 5/16”.

COMMERCIAL CYLINDER
- 2-1/8” 3/4” 5/16”.
- 2-5/8” 3/4” 7/16”.

RESETTABLE COMBINATION PADLOCKS
- Designed for commercial/industrial applications.
- Set your own 4 digit combination for convenience and security; 10,000 possible combinations.
- No reset tool required.
- Large ergonomic dials with exclusive blind feature permit operation with gloves, in low light or complete darkness.
- Deadlocking mechanism protects against prying, shimming and rap attacks.
- Shackle seal and dial dust cover protect internal components and dials for trouble free operation.
- 2-1/4” wide stainless steel body for extreme corrosion resistance.
- 1-1/16” horizontal shackle clearance.
- Hardened Stainless steel shackle for additional corrosion resistance.

1174:
- Stainless steel body with round hardened stainless steel shackle.

1175:
- Brass body with octagonal boron-carbide shackle.

1177:
- Brass body with octagonal boron-carbide shackle.

1178:
- Die cast body with octagonal boron-carbide shackle.

KEYWAY - CASE WIDTH - SHACKLE LENGTH - SHACKLE DIAMETER
- 2-1/4” - 1-1/16” - 5/16”.
- 2-1/4” - 1-1/16” - 3/8”.
- 2-1/4” - 1-1/16” - 3/8”.
- 2-1/4” - 2-1/16” - 3/8”.
- 2-1/4” - 1-1/16” - 3/8”.
- 2-1/4” - 1-1/16” - 3/8”.
- 2-1/4” - 1-1/16” - 3/8”.

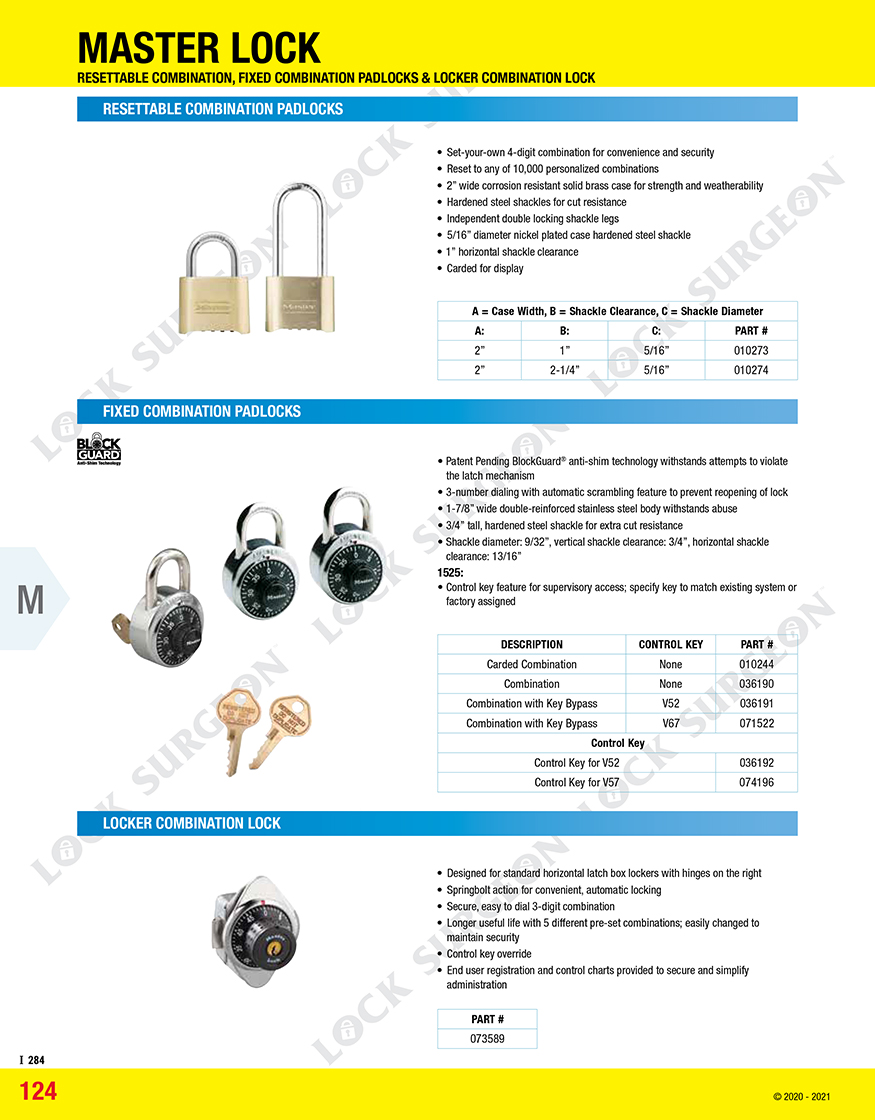

RESETTABLE COMBINATION PADLOCKS
- Set your own 4-digit combination for convenience and security.
- Reset to any of 10,000 personalized combinations.
- 2" wide corrosion resistant solid brass case for strength and weatherability.
- Hardened steel shackles for cut resistance.
- Independent double locking shackle legs.
- 5/16" diameter nickel plated case hardened steel shackle.
- 1" horizontal shackle clearance.
- Carded for display.
Part Numbers:
- 010273 (2" case width), (1" shackle clearance), (5/16" shackle diameter).
- 010274 (2" case width), (2-1/4" shackle clearance), (5/16" shackle diameter).

Fixed Combination Padlocks:
- Patent pending BlockGuard® anti-shim technology withstands attempts to violate the latch mechanism.
- 3-number dialing with automatic scrambling feature to prevent reopening of lock.
- 1-7/8" wide double-reinforced stainless steel body withstands abuse.
- 3/4" tall, hardened steel shackle for extra cut resistance.
- Shackle diameter: 9/32", vertical shackle clearance: 3/4", horizontal shackle clearance: 13/16".

1525:
- Control key feature for supervisory access; specify key to match existing system or factory assigned.
Part Numbers:
- 010244 (carded combination), (control key: none).
- 036190 (combination), (control key: none).
- 036191 (combination with key bypass) (control key: V52).
- 071522 (combination with key bypass) (control key: V67).
- 036192 (control key for V52).
- 074196 (control key for V67).

Locker Combination Lock:
- Designed for standard horizontal latch box lockers with hinges on the right.
- Spring-bolt action for convenient, automatic locking.
- Secure, easy to dial 3-digit combination.
- Longer useful life with 5 different pre-set combinations; easily changed to maintain security.
- Control key override.
- End-user registration and control charts provided to secure and simplify administration.
Part Number:
- 073589.

Our Favorite    Sizes & Styles of American Padlocks
Additional Sizes & Colours Available

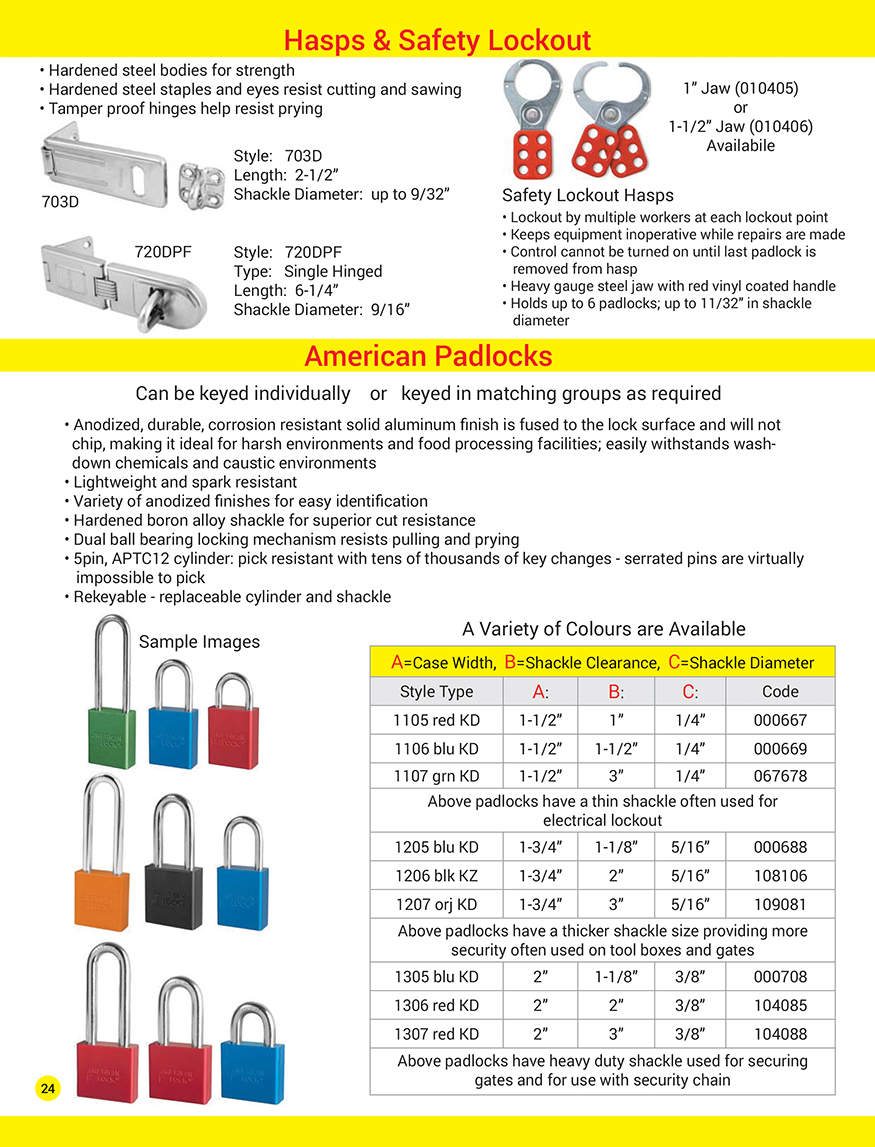

Hasps:
- Hardened steel bodies for strength.
- Hardened steel staples and eyes resist cutting and sawing.
- Tamper proof hinges help resist prying.
Part Number:
- 703D (2-1/2" length), (up to 9/32" shackle diameter).
- 720DPF (single hinge), (6-1/4" length), (9/16" shackle diameter).

Safety Lockout Hasps:
- Lockout by multiple workers at each lockout point.
- Keeps equipment inoperative while repairs are made.
- Control cannot be turned on until last padlock is removed from hasp.
- Heavy gauge steel jaw with red vinyl coated handle.
- Holds up to 6 padlocks; up to 11/32" in shackle diameter.
Part Number:
- 1" Jaw (010405).
- 1-1/2" Jaw (010406).

American Padlocks:
- Can be keyed individually or keyed in matching groups as required.
- Anodized, durable, corrosion resistant solid aluminum is fused to the lock surface and will not chip, making it ideal for harsh environments and food processing facilities; easily withstands washdown chemicals and caustic environments.
- Lightweight and spark resistant.
- Variety of anodized finishes for easy identification.
- Hardened boron alloy shackle for superior cut resistance.
- Dual-ball bearing locking mechanism resists pulling and prying.
- 5-pin, APTC12 cylinder: pick-resistant with tens of thousands of key changes - serrated pins are virtually impossible to pick.
- Rekeyable - repaceable cylinder and shackle.

Part Numbers:
- 1105 red KD - 000667 (1-1/2" case width), (1" shackle clearance), (1/4" shackle diameter).
- 1106 blu KD - 000669 (1-1/2" case width), (1-1/2" shackle clearance), (1/4" shackle diameter).
- 1107 grn KD - 067678 (1-1/2" case width), (3" shackle clearance), (1/4" shackle diameter).
- Above padlocks have a thin shackle often used for electrical lockout.

- 1205 blu KD - 000688 (1-3/4" case width), (1-1/8" shackle clearance), (5/16" shackle diameter).
- 1206 blk KZ - 108106 (1-3/4" case width), (2" shackle clearance), (5/16" shackle diameter).
- 1207 orj KD - 109081 (1-3/4" case width), (3" shackle clearance), (5/16" shackle diameter).
- Above padlocks have a thicker shackle size providing more security often used on tool boxes and gates.

- 1305 blu KD - 000708 (2" case width), (1-1/8" shackle clearance), (3/8" shackle diameter).
- 1306 red KD - 104085 (2" case width), (2" shackle clearance), (3/8" shackle diameter).
- 1307 red KD - 104088 (2" case width), (3" shackle clearance), (3/8" shackle diameter).
- Above padlocks have a heavy duty shackle used for securing gates and for use with security chain.

HIGH SECURITY HINGED HASPS:
- Secure hard to lock property applications.
- Hardened steel body for added strength.
- Hardened boron alloy staples resist cutting and sawing.
- Single and double hinge styles with hidden hinge pins.
- Ideal for reaching around corners and angles.
- Accepts shackles up to 9/16” in diameter.

PART# - TYPE - LENGTH:
- 036185 Single Hinged - 6-1/4”.
- 036186 Single Hinged - 8”.
- 029238 Double Hinged - 7-3/4”.

GENERAL USE HASPS
- Hard steel bodies for strength.
- Hardened steel staples and eyes resist cutting and sawing.
- Tamper proof hinges help resist prying.

PART# - LENGTH - SHACKLE DIAMETER:
- 010533 2-1/2” - Up to 9/32”.
- 010534 3-1/2” - Up to 11/32”.
- 010535 4-1/2” - Up to 1/2”.
- 010536 6” - Up to 9/16”.

PADLOCK EYES
- 2-1/8” wide cadmium plated hard wrought 1/8” diameter steel padlock eyes with large diameter 5/8”H x 3/4”W oval shackle hole.
- Ideal for gates and shed door.
- Sold in pairs, mounting screws included.

PART# - TYPE:
- 010460 Flat.
- 010461 Right Angle.

SAFETY LOCKOUT HASP
- Lockout by multiple workers at each lockout point.
- Keeps equipment inoperative while repairs or adjustments are made.
- Control cannot be turned on until last worker’s padlock is removed from hasp.
- Heavy gauge steel jaw with red vinyl coated handle.
- Holds up to 6 padlocks; up to 11/32” in shackle diameter.

PART# - DIMENSIONS - JAW SIZE
- 010405 1-3/4” x 4-1/2” - 1”.
- 010406 2-3/8” x 5” - 1-1/2”.

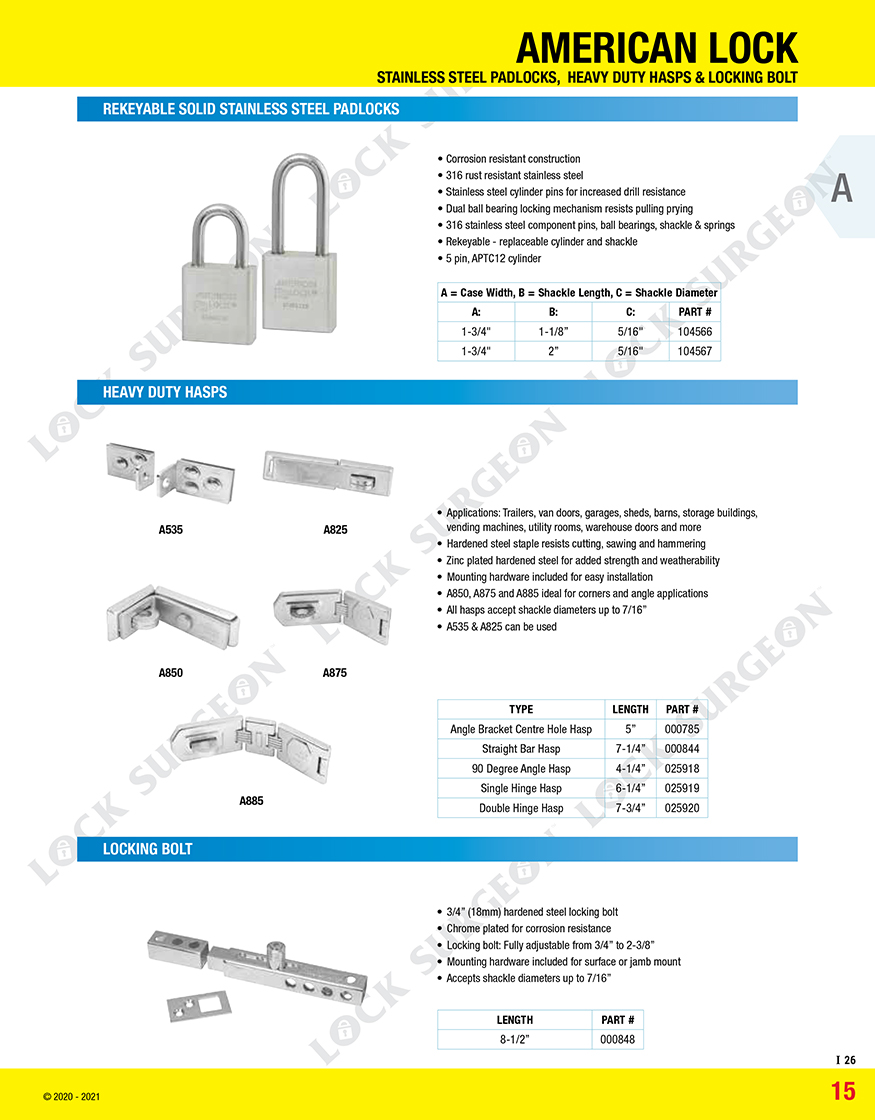

REKEYABLE SOLID STAINLESS STEEL PADLOCKS
- Corrosion resistant construction.
- 316 rust resistant stainless steel.
- Stainless steel cylinder pins for increased drill resistance.
- Dual ball bearing locking mechanism resists pulling prying.
- 316 stainless steel component pins, ball bearings, shackle & springs.
- Rekeyable - replaceable cylinder and shackle.
- 5 pin, APTC12 cylinder.

PART# - CASE WIDTH - SHACKLE LENGTH - SHACKLE DIAMETER
- 104566, 1-3/4", 1-1/8”, 5/16".
- 104567, 1-3/4", 2”, 5/16".

HEAVY DUTY HASPS
- Applications: Trailers, van doors, garages, sheds, barns, storage buildings, vending machines, utility rooms, warehouse doors and more.
- Hardened steel staple resists cutting, sawing and hammering.
- Zinc plated hardened steel for added strength and weatherability.
- Mounting hardware included for easy installation.
- A850, A875 and A885 ideal for corners and angle applications.
- All hasps accept shackle diameters up to 7/16”.
- A535 & A825 can be used.

PART# - TYPE - LENGTH:
- 000785, Angle Bracket Centre Hole Hasp 5”.
- 000844, Straight Bar Hasp 7-1/4”.
- 025918, 90 Degree Angle Hasp 4-1/4”.
- 025919, Single Hinge Hasp 6-1/4”.
- 025920, Double Hinge Hasp 7-3/4”.

LOCKING BOLT
- 3/4” (18mm) hardened steel locking bolt.
- Chrome plated for corrosion resistance.
- Locking bolt: Fully adjustable from 3/4” to 2-3/8”.
- Mounting hardware included for surface or jamb mount.
- Accepts shackle diameters up to 7/16”.

PART# - LENGTH
- 000848, 8-1/2”.

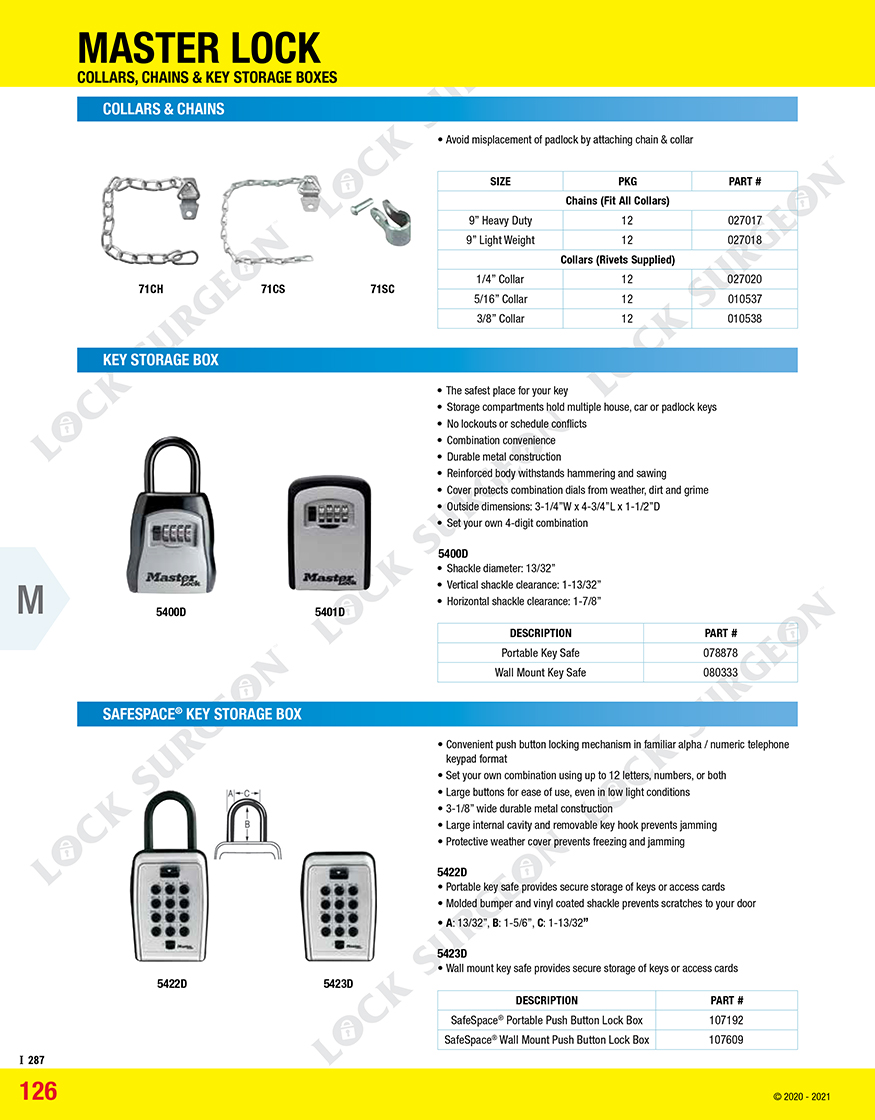

COLLARS & CHAINS
- Avoid misplacement of padlock by attaching chain & collar.

PART# - SIZE - PKG:
CHAINS (FIT ALL COLLARS)
- 027017, 9” Heavy Duty - 12.
- 027018, 9” Light Weight - 12.

COLLARS (RIVETS SUPPLIED)
- 027020, 1/4” Collar - 12.
- 010537, 5/16” Collar - 12.
- 010538, 3/8” Collar - 12.

KEY STORAGE BOX
- The safest place for your key.
- Storage compartments hold multiple house, car or padlock keys.
- No lockouts or schedule conflicts.
- Combination convenience.
- Durable metal construction.
- Reinforced body withstands hammering and sawing.
- Cover protects combination dials from weather, dirt and grime.
- Outside dimensions: 3-1/4”W x 4-3/4”L x 1-1/2”D.
- Set your own 4-digit combination.

5400D
- Shackle diameter: 13/32”.
- Vertical shackle clearance: 1-13/32”.
- Horizontal shackle clearance: 1-7/8”.

PART# - DESCRIPTION:
- 078878, Portable Key Safe.
- 080333, Wall Mount Key Safe.

SAFESPACE® KEY STORAGE BOX
- Convenient push button locking mechanism in familiar alpha / numeric telephone keypad format.
- Set your own combination using up to 12 letters, numbers, or both.
- Large buttons for ease of use, even in low light conditions.
- 3-1/8” wide durable metal construction.
- Large internal cavity and removable key hook prevents jamming.
- Protective weather cover prevents freezing and jamming.

5422D
- Portable key safe provides secure storage of keys or access cards.
- Molded bumper and vinyl coated shackle prevents scratches to your door.
- A: 13/32”, B: 1-5/6”, C: 1-13/32”.

5423D
- Wall mount key safe provides secure storage of keys or access cards.

PART# - DESCRIPTION:
- 107192, SafeSpace® Portable Push Button Lock Box.
- 107609, SafeSpace® Wall Mount Push Button Lock Box.

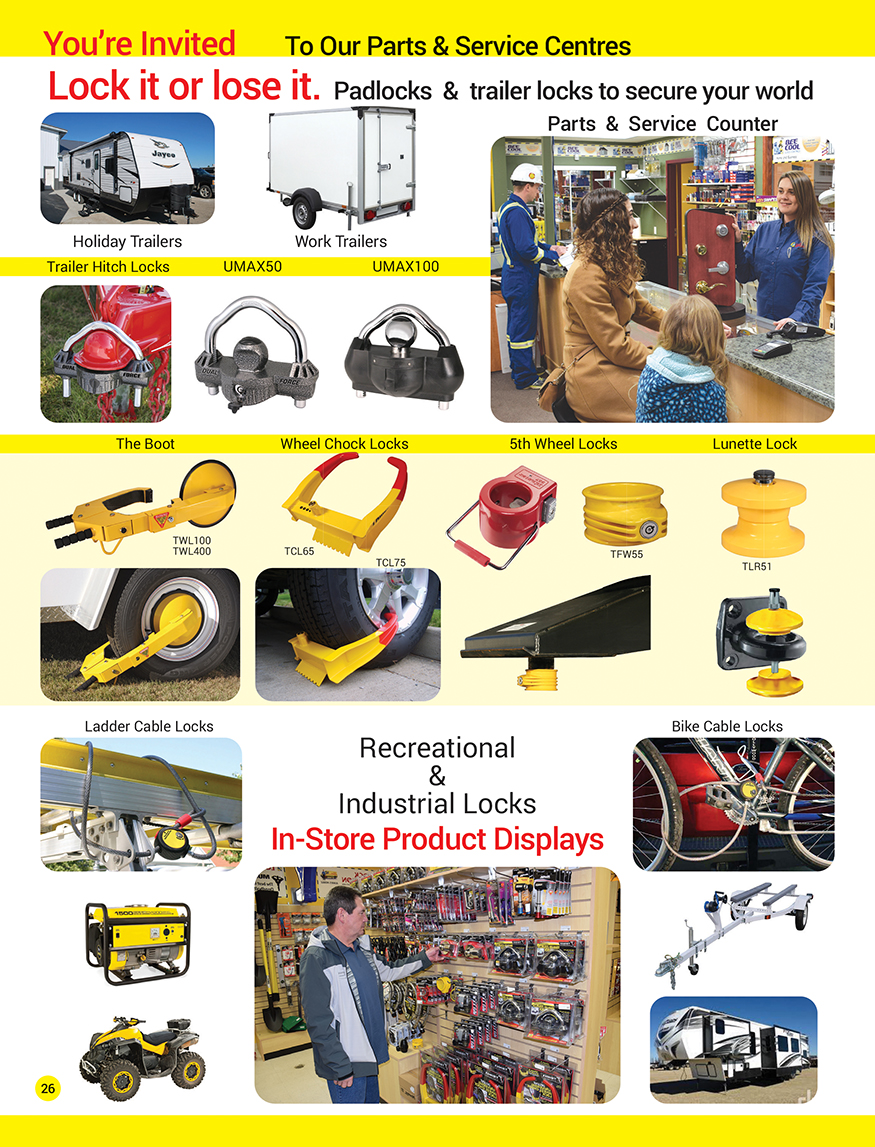

Our Favorite    Trailer Hitch Locks & Wheel Locks

Trailer hitch locks:
- UMAX50.
- UMAX100.

The Boot Wheel Lock:
- TWL100.
- TWL400.

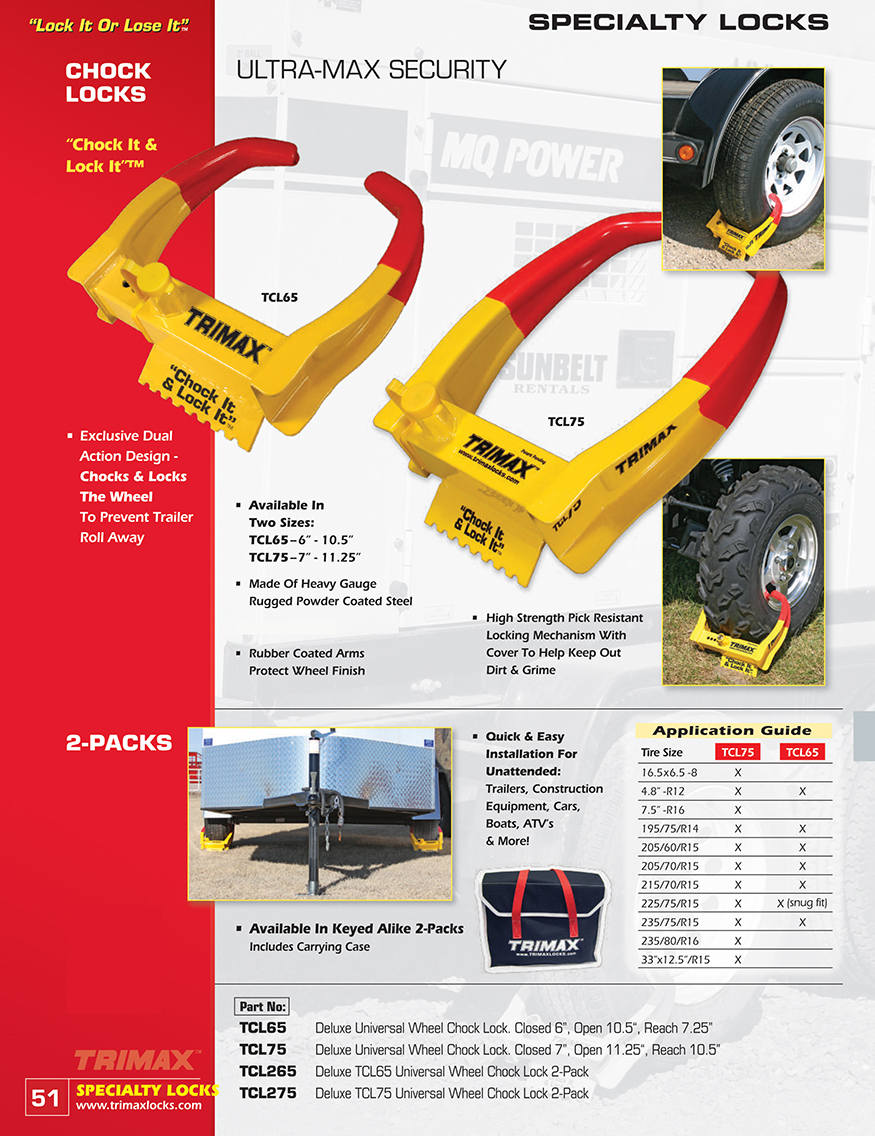

Wheel Chock locks:
- TCL65.
- TCL75.

5th Wheel Locks:
- TFW55.

Lunette Hitch Lock:
- TLR51.

Recreational & Industrial Locks:
- Ladder cable locks.
- Bike cable locks.

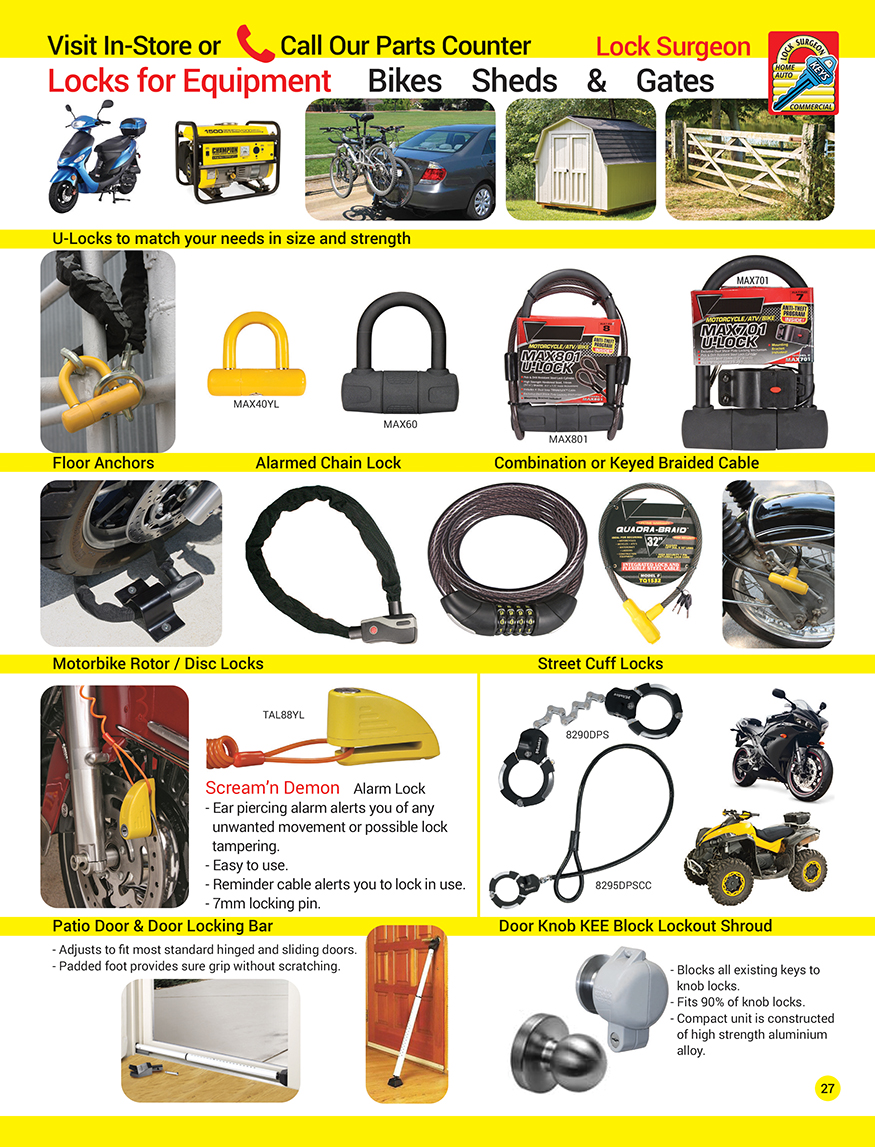

LOCKS FOR BIKES, SHEDS & GATES:
U-locks to match your needs in size and strength:
- MAX40YL.
- MAX60.
- MAX801.
- MAX701.

- Floor anchors.
- Alarmed chain lock.
- Combination or keyed braided cable.

Motorbike Rotor / Disc Locks:
- Scream'n Demon alarm lock.
- Ear piercing alarm alerts you of any unwanted movement or possible lock tampering.
- Easy to use.
- Reminder cable alerts you to lock in use.
- 7mm locking pin.
- TAL88YL.

Street Cuff Locks:
- 8290DPS.
- 8295DPSCC.

Patio Door & Door Locking Bar:
- Adjusts to most standard hinged and sliding doors.
- Padded foot provides sure grip without scratching.

Door Knob KEE Block Lockout Shroud:
- Blocks all existing keys to knob locks.
- Fits 90% of knob locks.
- Compact unit is constructed of high strength aluminum alloy.

Our Favorite    Trailer Hitch Tongue Locks

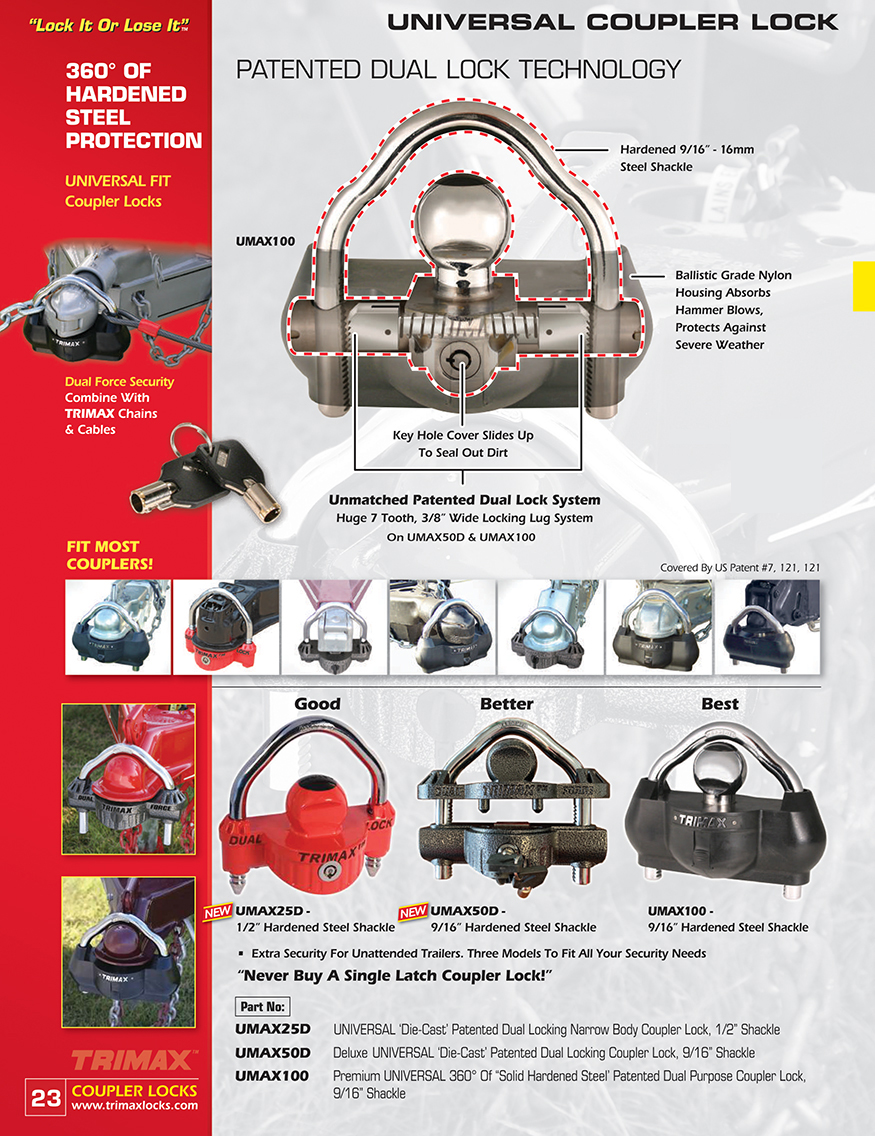

LOCK IT OR LOSE IT TRAILER HITCH COUPLER LOCKS:
- 360º of hardened steel protection.
- Universal fit coupler locks.
- Dual force security, combine with Trimax chains & cables.
- Fit most couplers.

Extra security for unattended trailers. Three models to fit all your security needs:

UMAX25D: GOOD
- Universal die-cast patented dual locking narrow body coupler lock, 1/2" shackle.

UMAX50D: BETTER
- Deluxe Universal die-cast patented dual locking coupler lock, 9/16" shackle.
- hardened steel.

UMAX100: BEST TRAILER HITCH COUPLER LOCK
- Hardened 9/16" - 16mm steel shackle.
- Ballistic grade nylon housing absorbs hammer blows, protects against sever weather.
- Key hole cover slides up to seal out dirt.
- Unmatched patented dual lock system.
- Huge 7 tooth, 3/8" wide locking lug system.
- Premium Universal 360º of solid hardened steel patented dual purpose coupler lock, 9/16" shackle.

Trailer Hitch Coupler Locks Can Be Keyed Alike, Complete With Universal Receiver Lock & Adjustable Coupler Pin Lock

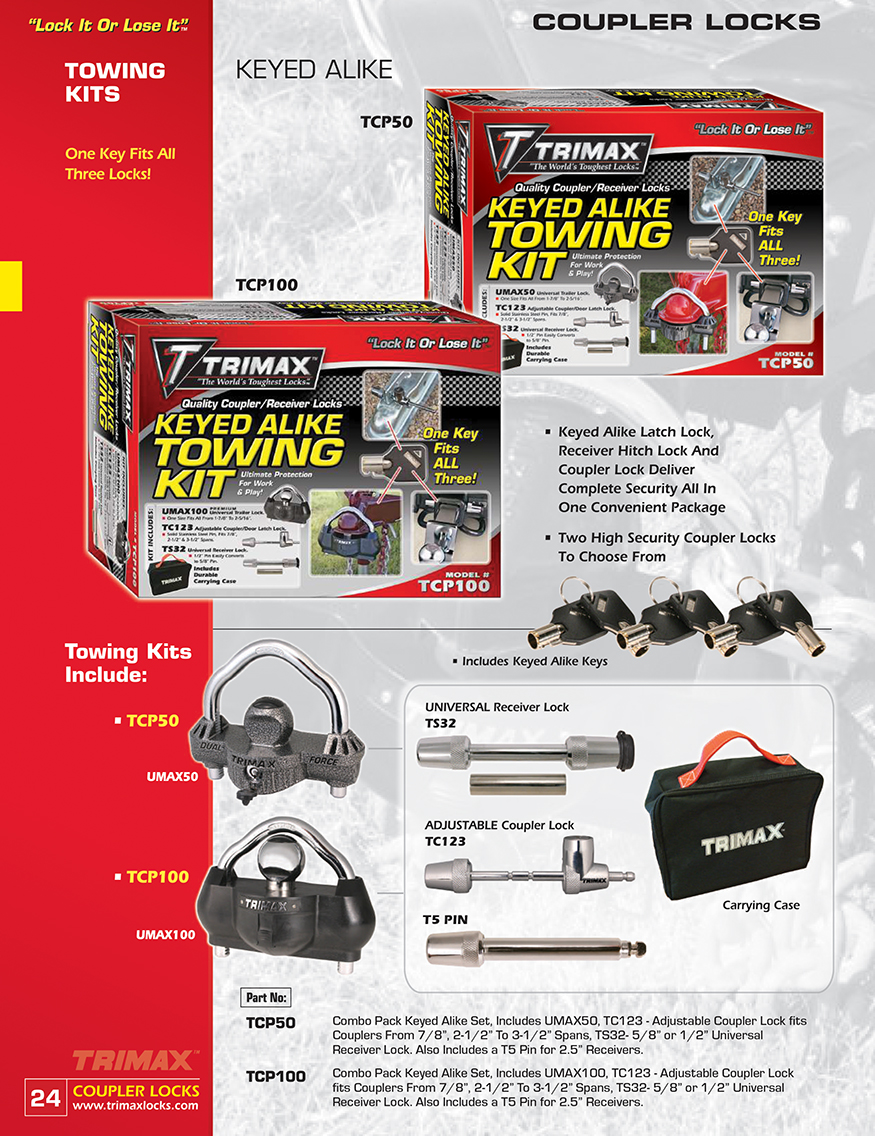

LOCK IT OR LOSE IT - TOWING KITS:
Towing Kits:
- One key fits all locks.
- Keyed alike latch lock, receiver hitch lock and coupler lock deliver complete security all in one convenient package.
- Two high security coupler locks to choose from.

Part Numbers:
TCP50.
- Combo pack keyed alike set, includes UMAX50, TC123 - adjustable coupler lock fits couplers from 7/8", 2-1/2" to 3-1/2" spans, TS32-5/8" or 1/2" universal receiver lock. Also includes a T5 pin for 2.5" receivers.

TCP100. Our Favorite Trailer Hitch Combination Package:
- Combo pack keyed alike set, includes UMAX100, TC123 - adjustable coupler lock fits couplers from 7/8", 2-1/2" to 3-1/2" spans, TS32-5/8" or 1/2" universal receiver lock. Also includes a T5 pin for 2.5" receivers.

Our Favorite    Wheel Locks, 5th Wheel & Pintle Hook Locks

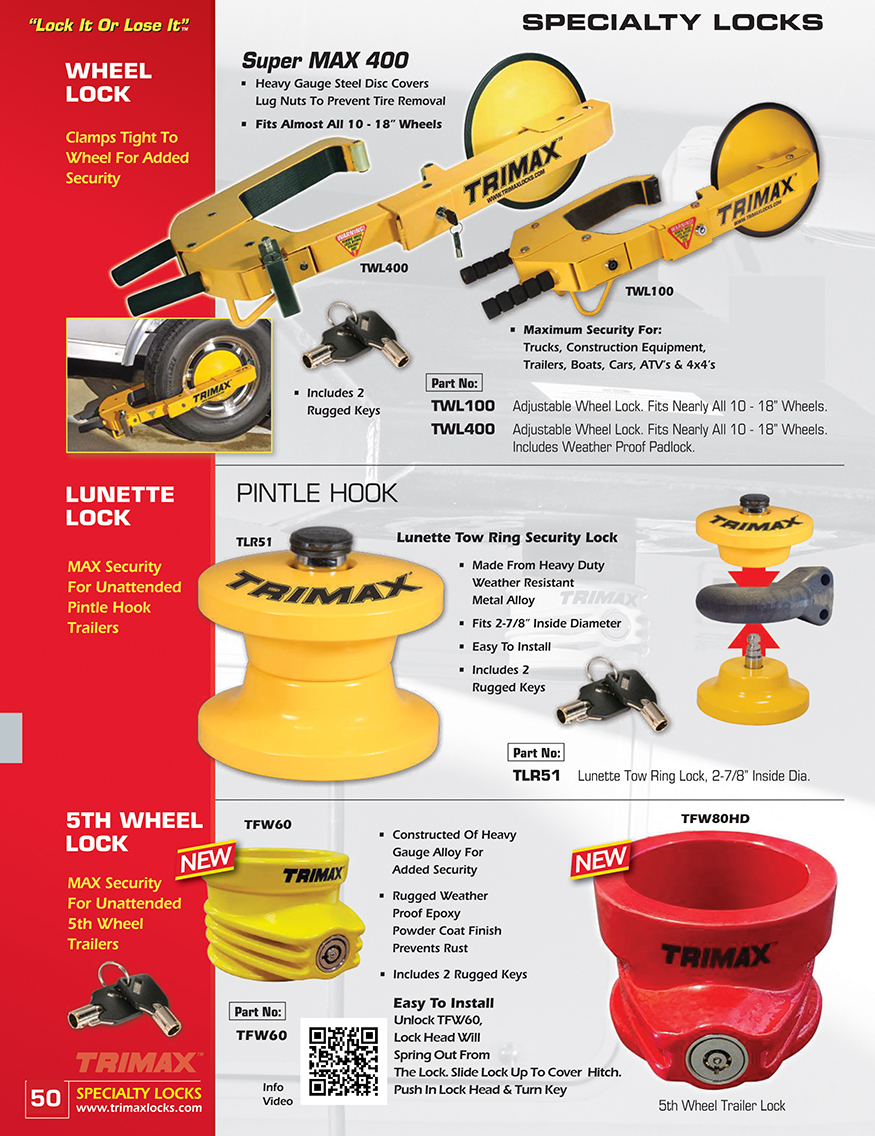

LOCK IT OR LOSE IT - SPECIALTY LOCKS:
Wheel Lock:
- Super MAX 400.
- Clamps tight to wheel for added security.
- Heavy gauge steel disc covers lug nuts to prevent tire removal.
- Fits almost all 10 - 18" wheels.
- Maximum security for: trucks, construction equipment, trailers, boats, cars, atv's & 4x4's.
- Includes 2 rugged keys.
Part Numbers:
- TWL100, Adjustable wheel lock, fits nearly all 10 - 18" wheels.
- TWL400, Adjustable wheel lock, fits nearly all 10 - 18" wheels includes weather proof padlock.

Lunette Lock for Pintle Hooks:
- Max security for unattended pintle hook trailers.
- Lunette tow ring security lock.
- Made from heavy duty weather resistant metal alloy.
- Fit 2-7/8" inside diameter.
- Easy to install.
- Includes 2 rugged keys.
Part Number:
- TLR51, Lunette tow ring lock, 2-7/8" inside diameter.

5th Wheel Lock:
- Max security for unattended 5th wheel trailers.
- Constructed of heavy gauge alloy for added security.
- Rugged weather proof epoxy powder coat finish prevents rust.
- Includes 2 rugged keys.
- Easy to install, unlock lock head will spring out from the lock. Slide lock up to cover hitch. Push in lock head & turn key.
Part Number:
- TFW60.
- TFW80HD.

Basic Wheel Lock Security Sold Individually Or Keyed In Groups

ULTRA-MAX SECURITY CHOCK LOCKS:
Chock Locks:
- Dual action chocks & locks the wheel to prevent trailer roll away.
- Made of heavy gauge rugged powder coated steel.
- Rubber coated arms protect wheel finish.
- High strength pick resistant locking mechanism with cover to help keep out dirt & grime.
- Quick & easy installation for unattended: trailers, construction equipment, cars, boats, ATV's and more.
- Available in keyed alike 2-packs.
Part Numbers:
- TCL65, Deluxe universal wheel chock lock, closed 6", open 10.5", reach 7.25".
- TCL75, Deluxe universal wheel chock lock, closed 7", open 11.25", reach 10.5".
- TCL265, Deluxe TCL65 universal wheel chock lock 2-pack.
- TCL275, Universal wheel chock lock 2-pack.

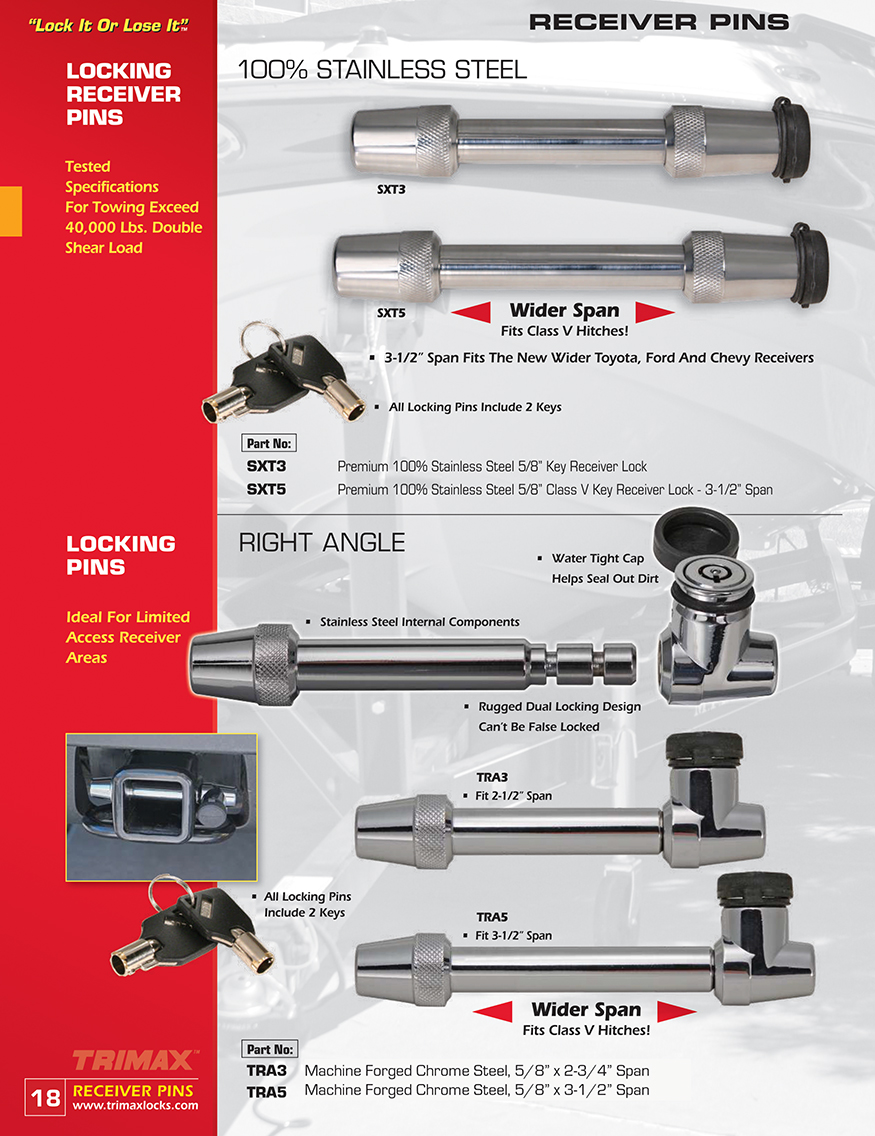

LOCK IT OR LOSE IT RECEIVER PINS:
100% Stainless Steel Locking Receiver Pins:
- Tested specefications for towing exceed 40,000 lbs.
- Double-shear Load.
- Fits Class V hitches.

Part Numbers:
- SXT3, Premium 100% stainless steel 5/8" key receiver lock.
- SXT5, Premium 100% stainless steel 5/8" V key receiver lock. 3-1/2" span.

Right Angle Locking Pins:
- Ideal for limited access receiver areas.
- Stainless steel internal components.
- Water tight cap helps seal out dirt.
- Rugged dual locking design can't be false locked.
- All locking pins include 2 keys.

Part Numbers:
- TRA3, Machine forged chrome steel, 5/8" x 2-3/4" span.
- TRA5, Machine forged chrome steel, 5/8" x 3-1/2" span.

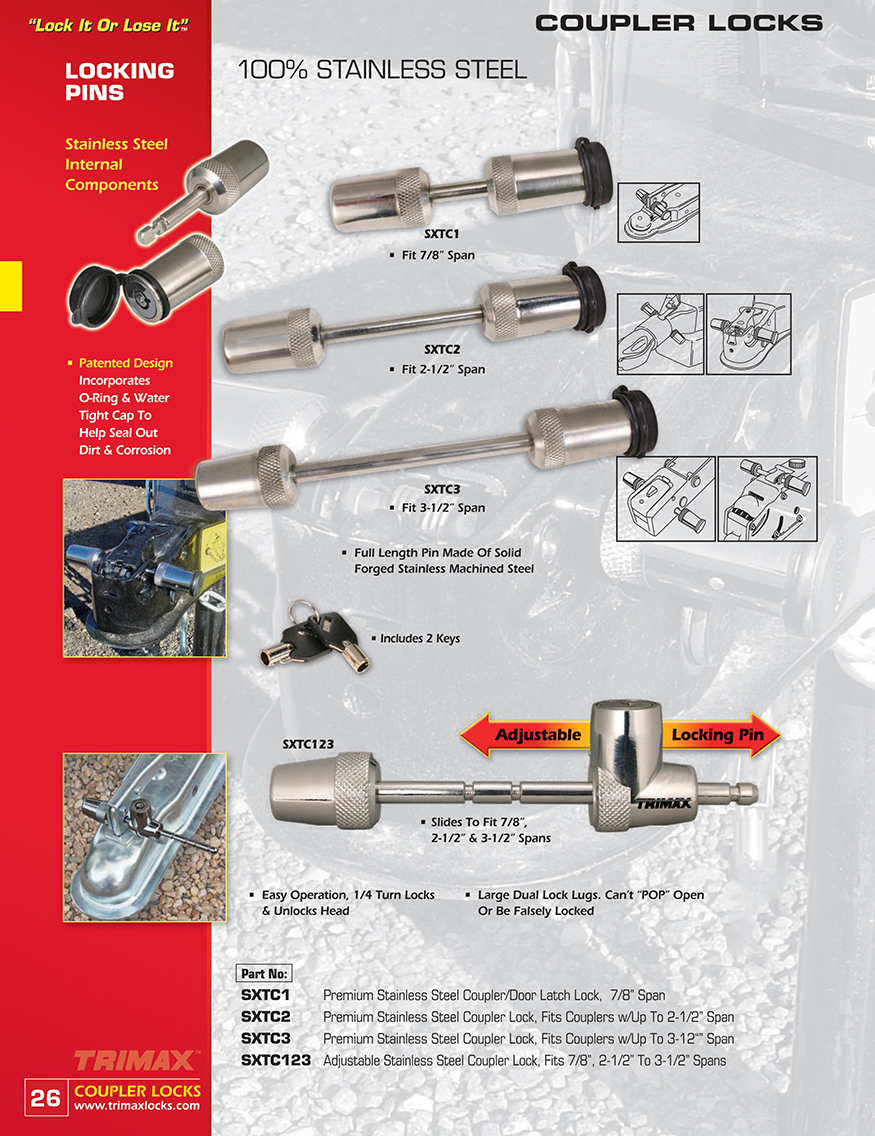

LOCKING PINS STAINLESS STEEL INTERNAL COMPONENTS:
- Patented design incorporates O-ring & water tight cap to help seal out dirt & corrosion.
- Full length pin made of solid forged stainless machined steel.
- Includes 2 keys.

Part Numbers:
- SXTC1, Premium stainless steel coupler/door latch lock, 7/8" span.
- SXTC2, Premium stainless steel coupler lock, fits couplers with up to 2-1/2" span.
- SXTC3, Premium stainless steel coupler lock, fits couplers with up to 3-1/2" span.
- SXTC123, Adjustable stainless steel coupler lock, fits 7/8", 2-1/2" to 3-1/2" spans.

LOCK IT OR LOSE IT COUPLER LOCK SETS:
Polished chrome steel.
- Keyed alike sets.
- One key operates both locks, multiple sets available.
- All sets include 4 keys.

Part Numbers:
- TM31, T3 - 5/8" receiver lock & TC1 - 7/8" span coupler lock.
- TM32, T3 - 5/8" receiver lock & TC2 - 2-1/2" span coupler lock.
- TM33, T3 - 5/8" receiver lock & TC3 - 3-1/2" span coupler lock.
- TM3123, TS32 - Universal fit locking pin & TC123 - adjustable coupler lock.
- TM5123, T5 - 5/8" receiver lock - 3-1/2" span & TC123 - adjustable coupler lock.
- TMC3310, (2) T3's - 5/8" receiver lock & TMC10 - 3/4" span coupler lock.

100% Stainless Steel:
- Keyed alike sets.
- Polished stainless steel.
- Unmatched beauty, strength & rust resistance.

Part Numbers:
- SXTM31, Stainless steel SXT3 - 5/8" receiver lock & SXTC1 - 7/8" span coupler lock.
- SXTM32, Stainless steel SXT3 - 5/8" receiver lock & SXTC2 - 2-1/2" span coupler lock.
- SXTM33, Stainless steel SXT3 - 5/8" receiver lock & SXTC3 - 3-1/2" span coupler lock.
- SXTM3123, Stainless steel SXTS32 - Universal fit locking pin & SXTC123 - adjustable coupler lock.

LOCK IT OR LOSE IT VERSA CABLE LOCK:
- 10mm locking tip fits through small openings.
- 10mm Trimaflex™ vinyl coated cable.
- Moveable, cinchable lock head adapts to many applications.
- Interchangeable cables available in 12' and 30' lengths.

Recommended Uses:
- Bicycles.
- Power tools.
- Patio furniture.
- BBQ grills.
- Sports equipment.
- Firearms.
- Power sports.
- Marine toys: wakeboards, towables, jet-skis, coolers & more.

Part Numbers:
- VMAX6, Multi-use versa-cable lock, 6' x 10mm Trimaflext™ cable.
- VMAX9C, Multi-use versa-cable camo lock, 9' x 10mm Trimaflex™ cable.
- VMAX12CBL, Trimaflex™ replacement cable, 12'(L) x 10mm (cable only).
- VMAX30CBL, Trimaflex™ replacment cable, 30'(L) x 10mm (cable only).
- VMAXHD, Multi-use versa-cable lock head.

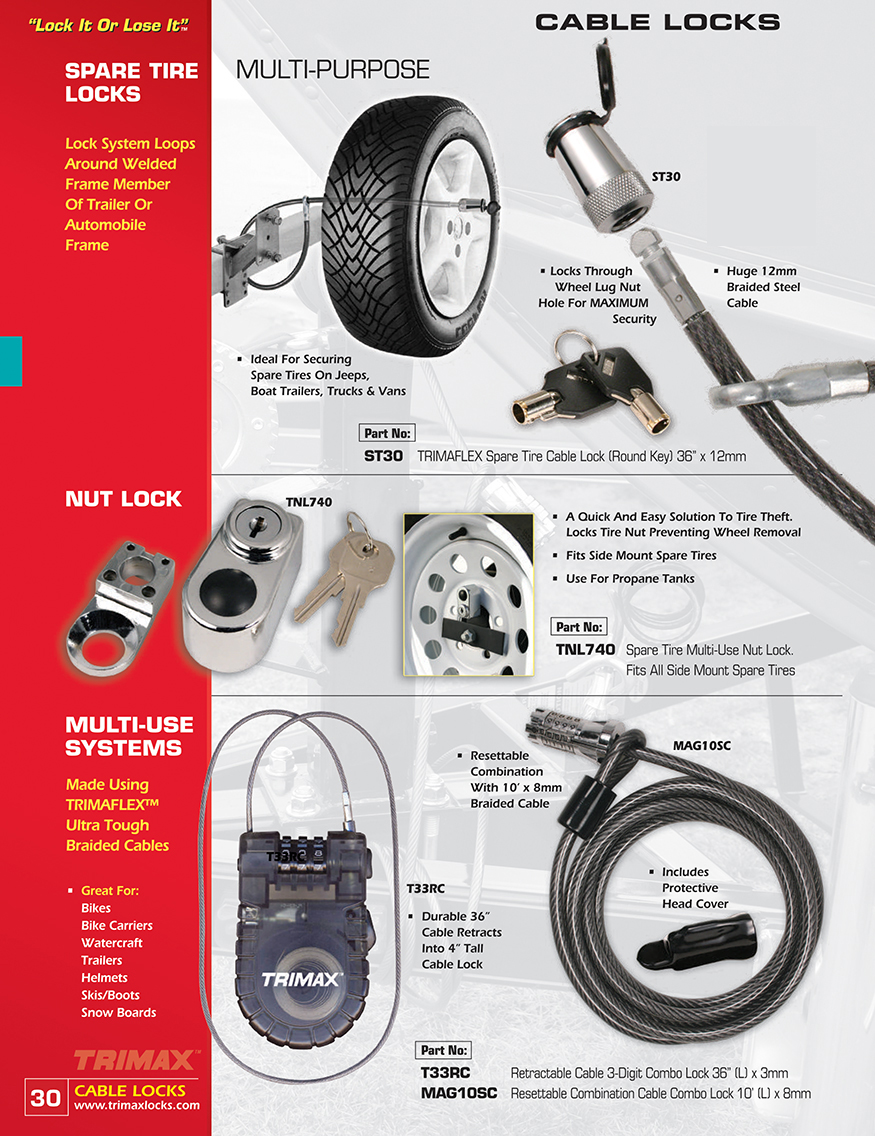

SPARE TIRE CABLE LOCKS MULTI-PURPOSE:
- Lock system loops around welded frame member of trailer or automobile frame.
- Ideal for securing spare tires on jeeps, boat trailers, trucks & vans.
- Locks through wheel lug nut hole for maximum security.
- Huge 12mm braided steel cable.

Part Number:
- ST30, Trimaflex™ spare tire cable lock (round key), 36" x 12mm.

Nut Lock:
- A quick and easy solution to tire theft locks tire nut preventing wheel removal.
- Fits side mount spare tires.
- Use for propane tanks.

Part Number:
- TNL740, Spare tire multi-use nut lock. Fits all side mount spare tires.

Multi-use Systems:
- Made using Trimaflex™ ultra tough braided cables.
- Great for: bikes, bike carriers, watercraft, trailers, helmets, skis/boots, snow boards.

Part Number:
- T33RC, Retractable cable 3-digit combo lock 36"(L) x 3mm.
- Durable 36" cable retracts into 4" tall cable lock.
- MAG10SC, Retractable combination cable combo lock 10'(L) x 8mm.
- Resettable combination with 10' x 8mm braided cable. Includes protective head cover.

TRIMAFLEX™ DUAL LOOP CABLES & U-LOCKS:
Dual-loop cables:
- Maximum security quadra-braid cables.
- For maximum protection use with Trimax™ MAX60 & MAX40 discs & U-locks for the ultimate in multi-use security.

Part Numbers:
- TDL815, Trimaflex™ dual-loop multi-use cable 8' x 15mm.
- TDL1212, Trimaflex™ dual-loop multi-use cable 12' x 12mm.
- TDL1510, Trimaflex™ dual-loop multi-use cable 15' x 10mm.
- TDL3010, Trimaflex™ dual-loop multi-use cable 30' x 10mm.

Cable U-locks:
- For use on motorcycle discs & looped cables.
- Simply the strongest short shackle locks you can buy.
- High Security.

Part Numbers:
- MAX60, General purpose U-lock, black with chrome, 14mm shackle.
- MAX40YL, General purpose U-lock, yellow with chrome, 1/2" shackle.
- MAX40BK, General purpose U-lock, black with chrome, 1/2" shackle.

LOCK IT OR LOSE IT INTEGRATED CABLE & CHAIN LOCKS:
Integrated Locks:
- keyed or combination.
- Case hardened triple heat treated chain.
- Withstands over 6 tons of pull force & 11 tons of cutting force.
- Rugged nylon locking housing.
- Anti-drill & pick resistant lock mechanism.

Part Number:
- THEXC103, Integrated combination lock & super chain - 6mm links x 36"(L).
- THEX836, Integrated lock & super chain - 8mm links x 36"(L).
- THEX1036, Integrated lock & super chain - 10mm links x 36"(L).

Super Chain Sets T-Hex Chain Links:
- Loop on one end - can create a noose to use full length of chain.
- Hexagon shaped case hardened triplet heat treated super chain.
- Durable nylon sleeve protects against scratches.

Part Numbers:
- THEX33, THEX super chain - 3' 3"(1 meter) length with HEX 12mm links.
- THEX50, THEX super chain - 5' length with HEX 12mm links.
- THEX3340, Combo set - THEX super chain - 3' 3" length x 12mm + MAX40 disc lock.
- THEX5040, Combo set - THEX super chain - 5' length x 12mm + MAX40 disc lock.
- THEX3360, Combo set - THEX super chain - 3' 3" length x 12mm + MAX60 disc lock.
- THEX5060, Combo set - THEX super chain - 5' length x 12mm + MAX60 disc lock.

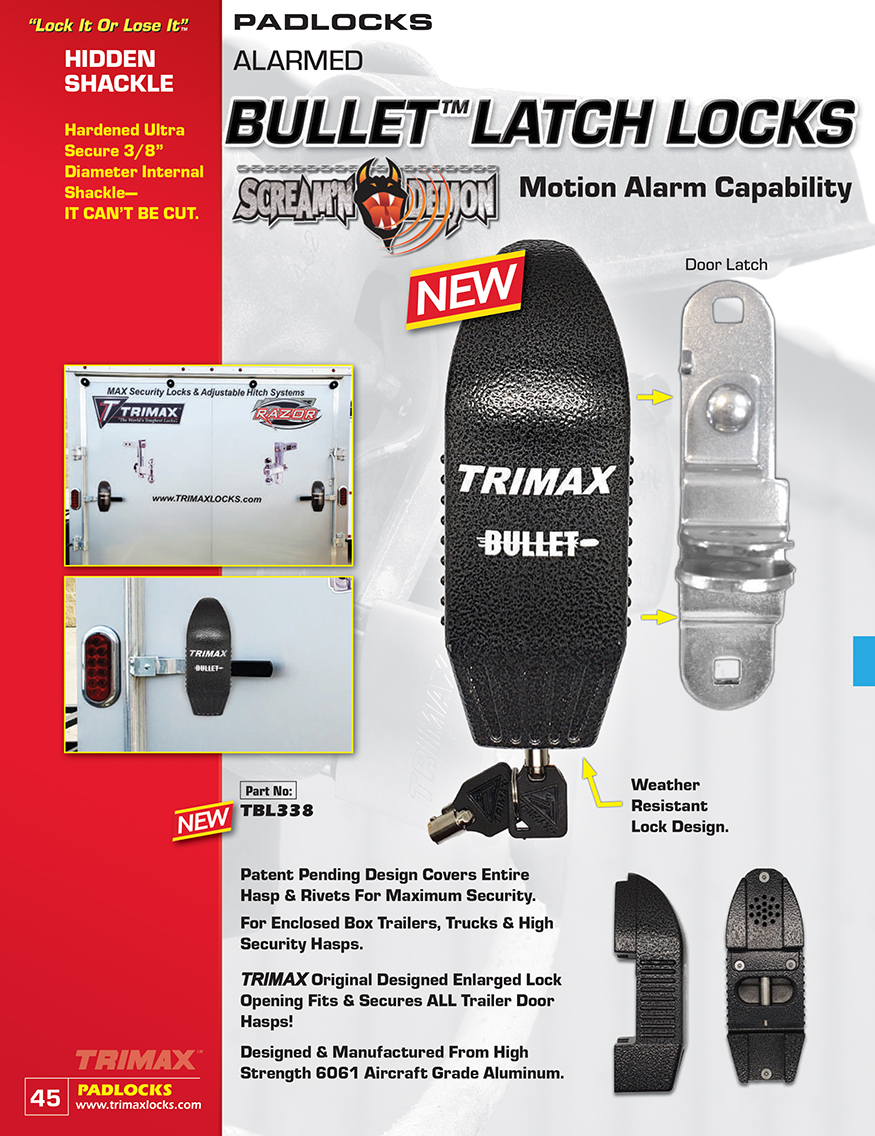

HIDDEN SHACKLE ALARMED PADLOCKS & MOTION ALARM CAPABILITY:
- Hardened ultra secure 3/8" diameter internal shackle - can't be cut.
- Motion alarm capability.
- Design covers entire hasp & rivets for maximum security.
- For enclosed box trailers, trucks & high security hasps.
- Trimax original designed enlarged lock opening fits & secures all trailer door hasps.
- Designed & manufactured from high strength 6061 aircraft grade aluminum.
- Water resistant lock design.

Part Number:
- TBL338.

If you need installation or repair services, one of our affiliate companies below will be glad to help

Installation or repair services provided by:

Click any one of the below logos for direct access to one of our service repair and installation providers.

Not all areas have local mobile service. Service call travel charges may apply.
