Lock Surgeon parts supply carries a large variety of residential home window bars as well as commercial security window bars that can be used to protect vulnerable window areas. Often residential bars are used to secure basement windows in homes. Commercial window bars can be used to protect the glass areas in a variety of storefront and warehouse glass areas.
The expandable security gates that secure glass areas in both home and or storefront applications can retract and fold out of the way during the day and secure glass areas at night or when on vacation. Our team of window bar supply counter service personnel can help determine the appropriate and cost effective solution for you to use when securing window areas.
We also carry a variety of door security parts that can be used to reinforce access points that can discourage break-and-enter attempts.
Our team looks forward to helping you with your window bar and folding gate security challenges.
Window bar and folding gate security can be shipped direct to you. Lock Surgeon's window bar and folding gate security service counter technicians are able to help advise you on the correct window bar and folding gate security selection that you may need to complete your window bar and folding gate security. Lock Surgeon's easy to use window bar and folding gate security E-commerce site and this webpage has an excellent display of common window bar and folding gate security.
You can view a large variety of the window bar and folding gate security available on this page and call to discuss your needs with one of our shop window bar and folding gate security service counter technicians. It is possible to communicate with the window bar and folding gate security service counter technicians by texting pictures using that technician's direct phone number. This will help confirm the window bar and folding gate security that you may require and confirm that you are being sent the correct window bar and folding gate security to meet your needs.
Going forward you can shop the E-commerce window bar and folding gate security site 24hrs a day, placing your order and having the window bar and folding gate security shipped as needed. Shop the window bar and folding gate security E-commerce site independently by clicking the above red "Click here to order online" button. You may also click the above yellow "Complete Product Listing" link to view an extensive catalogue of garage door and door security that can be shipped to you.

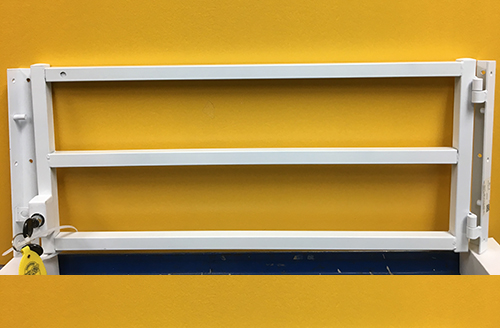

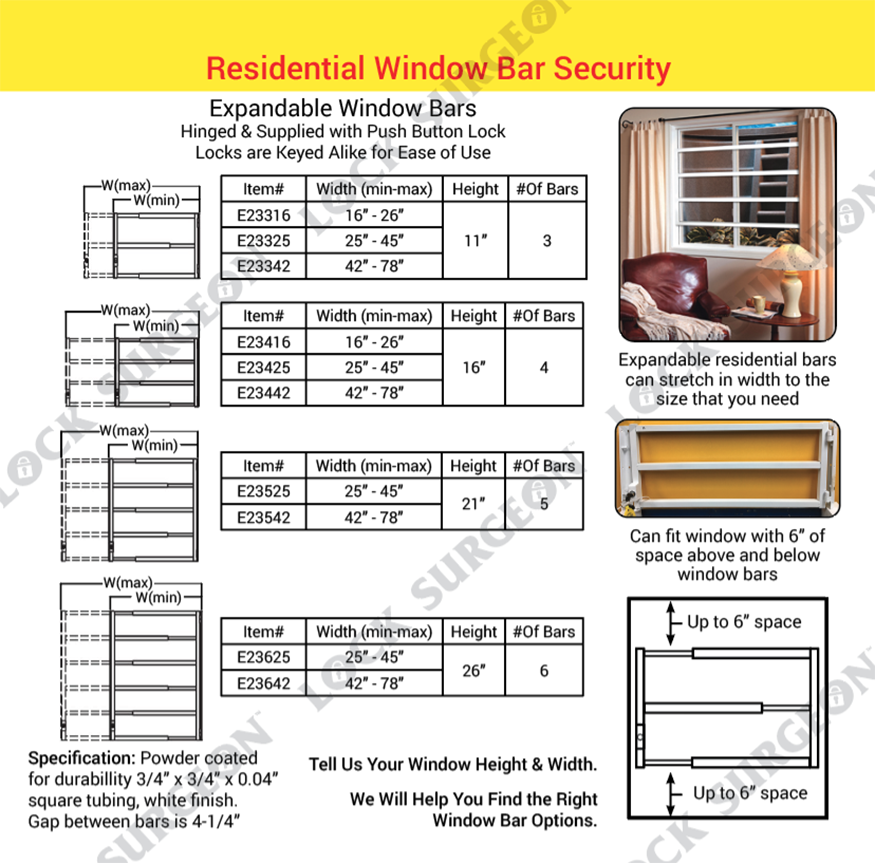

Residential Window Security Bars, Hinged, Comes Complete With Lock
EXPANDABLE RESIDENTIAL WINDOW BARS:
- Residential window bars are hinged and supplied with push button lock.
- Window bar locks are keyed alike for ease of use.
Part Number:
- E23316 (width min-max - 16"-26") (height 11") (bars 3) window bar.
- E23325 (width min-max - 25"-45") (height 11") (bars 3) window bar.
- E23342 (width min-max - 42"-78") (height 11") (bars 3) window bar.
- E23416 (width min-max - 16"-26") (height 16") (bars 4) window bar.
- E23425 (width min-max - 25"-45") (height 16") (bars 4) window bar.
- E23442 (width min-max - 42"-78") (height 16") (bars 4) window bar.
- E23525 (width min-max - 25"-45") (height 21") (bars 5) window bar.
- E23542 (width min-max - 42"-78") (height 21") (bars 5) window bar.
- E23625 (width min-max - 25"-45") (height 26") (bars 6) window bar.
- E23642 (width min-max - 42"-78") (height 26") (bars 6) window bar.
Specification:
- Window bars are Powder coated for durability 3/4" x 3/4" x 0.04" square tubing, white finish.
- Gap between window security bars is 4-1/4".
- Expandable residential window bars can stretch in width to the size that you need within the parameters of above graphs.
- Residential security window bars can fit windows remember you can allow up to 6" of space above and below the window bars.
- Basement window bars are an effective way to deter unwanted entry.
* Tell us your window height and width and we will help you find the right residential security window bar option.

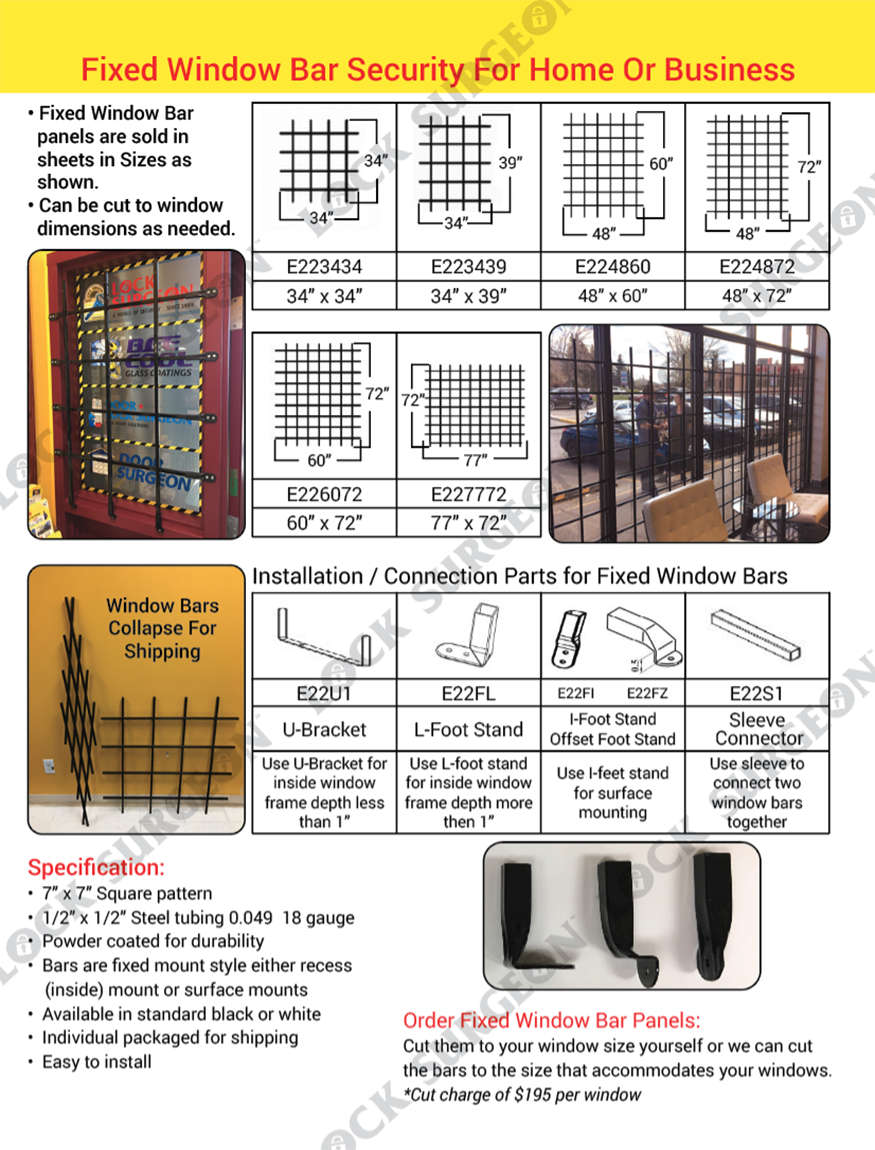

Fixed Window Security Bars for Home or Business
FIXED WINDOW SECURITY BARS:
- Fixed window bar panels are sold in sheets in sizes as listed below.
- Fixed window bars for residential or commercial can be cut to dimensions needed.
Part Number:
- E223434 (34" x 34") solid window bar panel can be trimmed to accommodate your actual window size.
- E223439 (34" x 39") solid window bar panel can be trimmed to accommodate your actual window size.
- E224860 (48" x 60") solid window bar panel can be trimmed to accommodate your actual window size.
- E224860 (48" x 60") solid window bar panel can be trimmed to accommodate your actual window size.
- E224872 (48" x 72") solid window bar panel can be trimmed to accommodate your actual window size.
- E226072 (60" x 72") solid window bar panel can be trimmed to accommodate your actual window size.
- E227772 (77" x 72") solid window bar panel can be trimmed to accommodate your actual window size.
Installation / Connection Parts For Fixed Commercial Window Bars:
Part Number:
- E22U1 (U-Bracket) - Use U-bracket for inside window frame depth less than 1".
- E22FL (L-Foot Stand) - Use L-foot stand for inside window frame depth more than 1".
- E22FI (I-Foot Stand) & E22FZ (Offset Foot Stand) - Use I-feet stand for surface mounting.
- E22S1 (Sleeve Connector) - Use sleeve to connect two window bars together.
Specifications:
- 7" x 7" square pattern window bar.
- 1/2" x 1/2" steel tubing 0.049 18 gauge.
- Window bars are powder coated for durability.
- Window security bars are fixed mount syle either recess (inside) mount or surface mounted.
- Window security bars are available in standard black or white.
- Solid window bars are individually packaged for shipping.
- Window bars are folded as in above photo for easy shipping.
- Window bars are easy to install.
Order Fixed Window Bar Panels:
- Cut them to your window size yourself or we can cut the fixed window bars to the size that accommodates your windows. *Cut charge of $195 per window*.

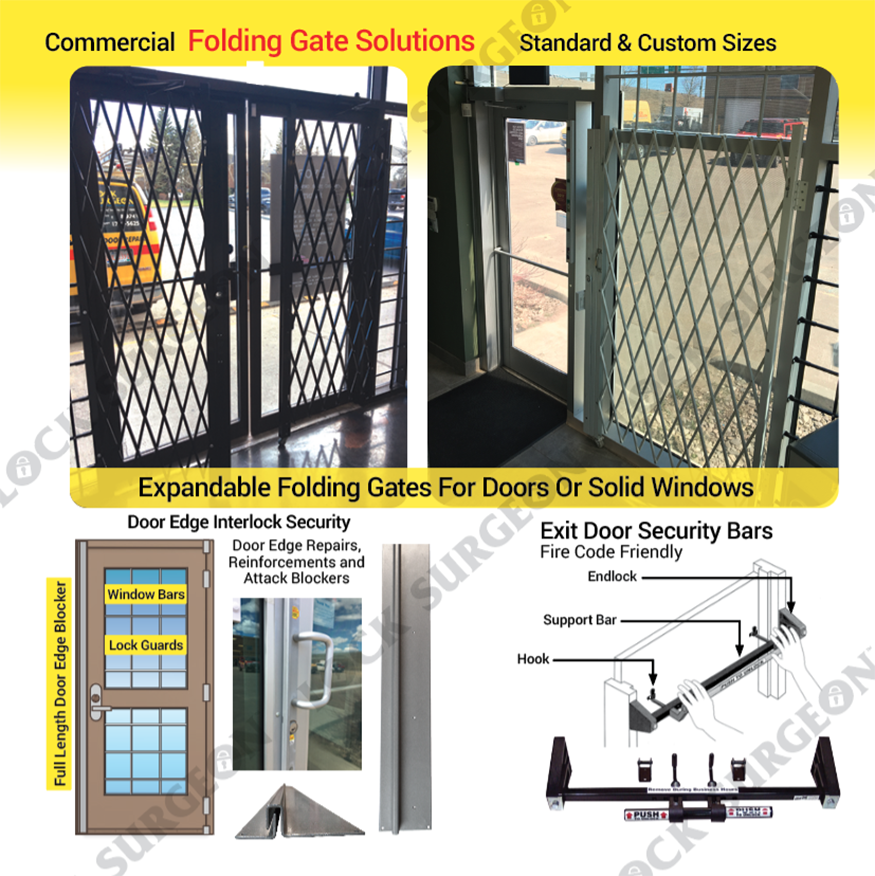

Commercial Folding Gate Window Security Bars
COMMERCIAL DOOR & WINDOW SECURITY SOLUTIONS - STANDARD AND CUSTOM SIZES:
- Expandable folding gates for doors or solid windows.
- Door edge interlock security.
- Door edge repairs, reinforcements & attack blockers.
- Full-length door edge blockers.
- Exit door security bars.
- Fire code friendly.

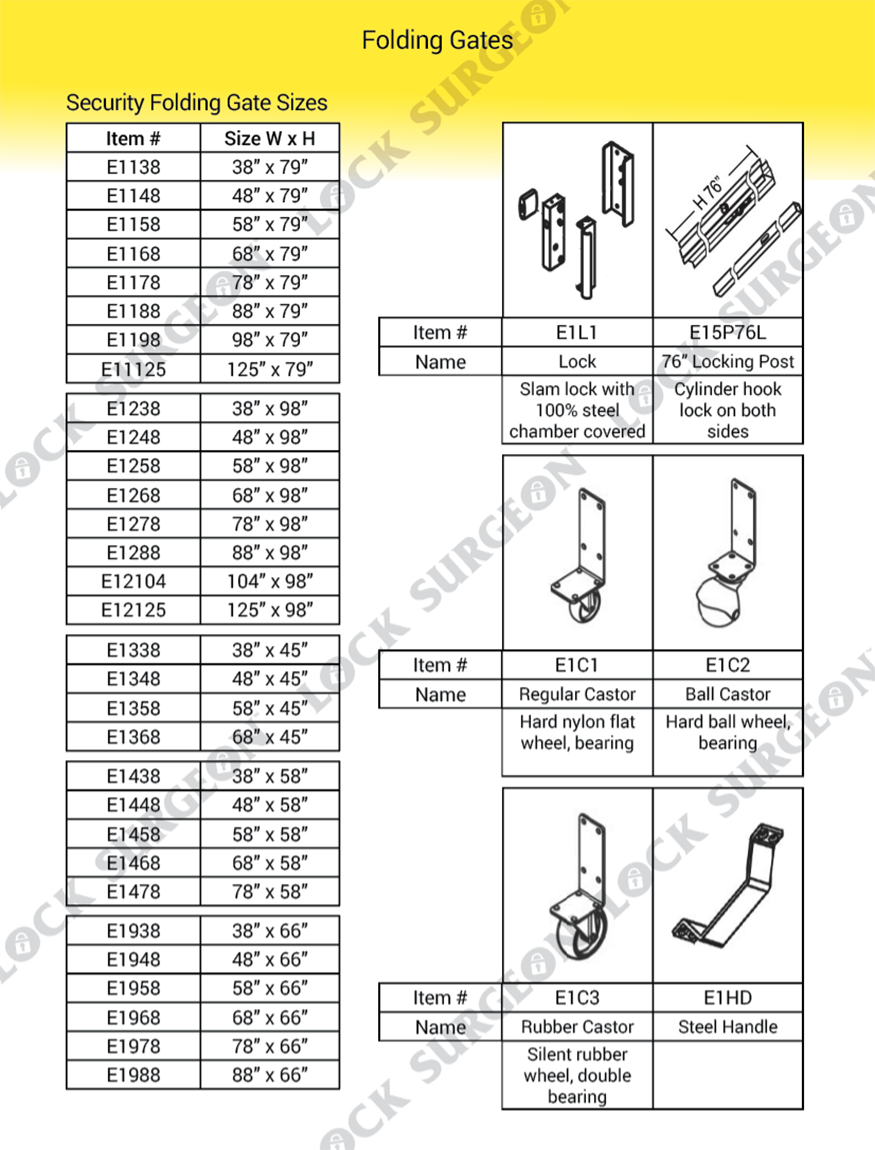

Folding Gate Window Security Bars Listed in Sizes Available
SECURITY FOLDING GATES IN VARIOUS SIZES:
Part Number:
- E1138 (38" x 79") / E1148 (48" x 79").
- E1158 (58" x 79") / E1168 (68" x 79").
- E1178 (78" x 79") / E1188 (88" x 79").
- E1198 (98" x 79") / E11125 (125" x 79").
- E1238 (38" x 98") / E1248 (48" x 98").
- E1258 (58" x 98") / E1268 (68" x 98").
- E1278 (78" x 98") / E1288 (88" x 98").
- E1204 (104" x 98") / E12125 (125" x 98").
- E1338 (38" x 45") / E1348 (48" x 45").
- E1358 (58" x 45") / E1368 (68" x 45").
- E1438 (38" x 58") / E1448 (48" x 58").
- E1458 (58" x 58") / E1468 (68" x 58").
- E1478 (78" x 58").
- E1938 (38" x 66") / E1948 (48" x 66").
- E1958 (58" x 66") / E1968 (68" x 66").
- E1978 (78" x 66") / E1988 (88" x 66").
- E1L1 (Lock) - Slam lock with 100% steel chamber, covered.
- E15P76L (76" Locking Post) - Cylinder hook lock on both sides.
- E1C1 (Regular Castor) - Hard nylon flat wheel, bearing.
- E1C2 (Ball Castor) - Hard ball wheel, bearing.
- E1C3 (Rubber Castor) - Silent rubber wheel, double bearing.
- E1HD (Steel Handle).
Folding gate security bars for windows are convenient evening security and can be easily removed from view during operating hours. Folding gate security bars are often used on glass entryways to reduce the likelihood of break-in events. They can be closed and locked during no operating hours and swung open to allow for easy access and egress.
