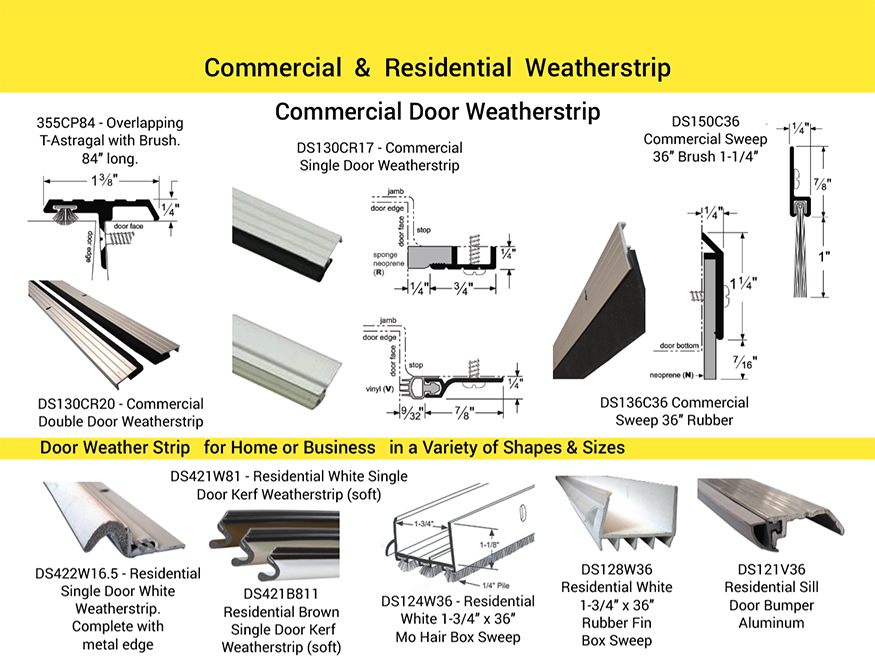

Man Door Weatherstrip

Overlapping T-Astragal with brush - 84" long.
- 355CP84
Commercial single door weatherstrip.
- DS130CR17
Commercial sweep 36" brush 1-1/4".
- DS150C36
Commercial double-door weatherstrip.
- DS130CR20
Commercial sweep 36" rubber.
- DS136C36
Residential single door white weatherstrip. Complete with metal edge.
- DS422W16.5
Residential white single door kerf weatherstrip (soft).
- DS421W81
Residential brown single door kerf weatherstrip (soft).
- DS421B811
Residential white 1-3/4"x36" Mo-hair box sweep.
- DS124W36
Residential white 1-3/4"x36" rubber fin box sweep.
- DS128W36
Residential sill door bumper aluminum.
- DS121V36

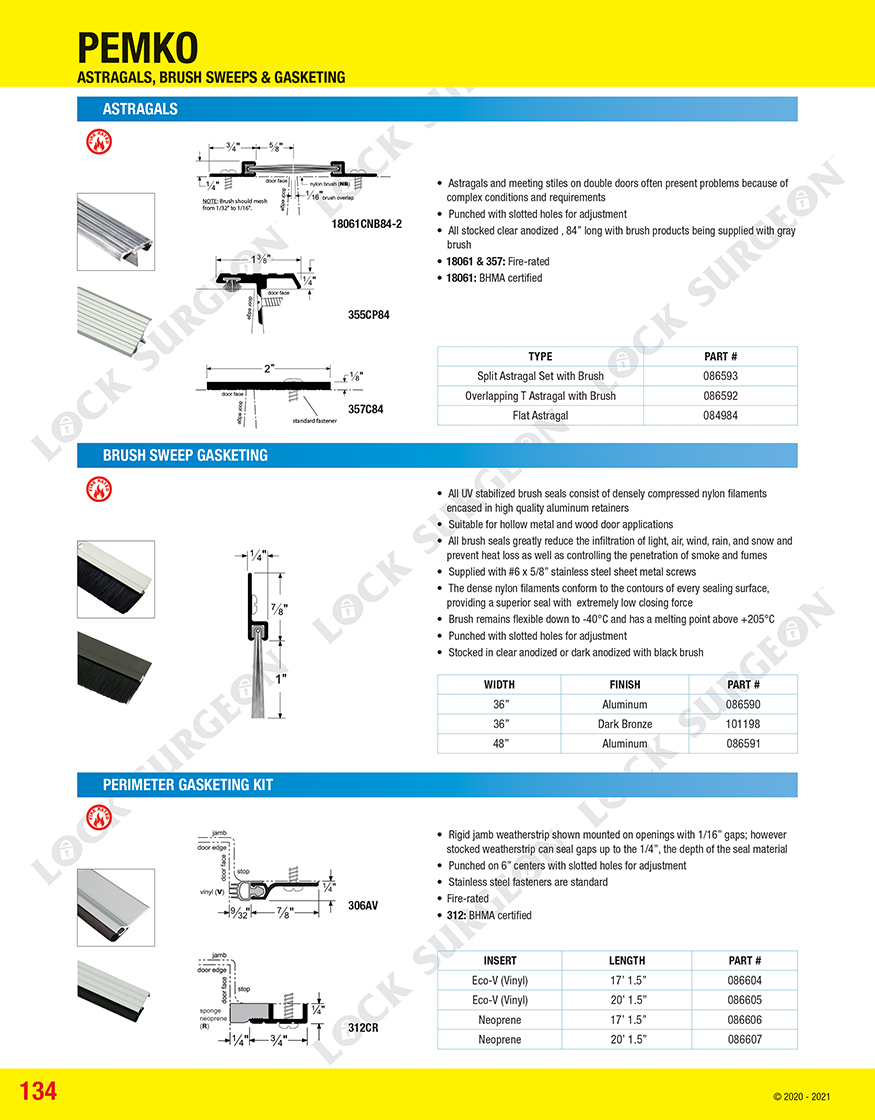

ASTRAGALS
- Astragals and meeting stiles on double doors often present problems because of complex conditions and requirements.
- Punched with slotted holes for adjustment.
- All stocked clear anodized , 84” long with brush products being supplied with gray brush.
- 18061 & 357: Fire-rated.
- 18061: BHMA certified.

BRUSH SWEEP GASKETING
- All UV stabilized brush seals consist of densely compressed nylon filaments encased in high quality aluminum retainers.
- Suitable for hollow metal and wood door applications.
- All brush seals greatly reduce the infiltration of light, air, wind, rain, and snow and prevent heat loss as well as controlling the penetration of smoke and fumes.
- Supplied with #6 x 5/8” stainless steel sheet metal screws.
- The dense nylon filaments conform to the contours of every sealing surface, providing a superior seal with extremely low closing force.
- Brush remains flexible down to -40°C and has a melting point above +205°C.
- Punched with slotted holes for adjustment.
- Stocked in clear anodized or dark anodized with black brush.

WIDTHS:
36” - 36” - 48”.

PERIMETER GASKETING KIT
- Ridgid jamb weatherstrip shown mounted on openings with 1/16” gaps; however stocked weatherstrip can seal gaps up to the 1/4”, the depth of the seal material.
- Punched on 6” centers with slotted holes for adjustment.
- Stainless steel fasteners are standard.
- Fire-rated.
- 312: BHMA certified.

INSERTS:
- Eco-V (Vinyl) 17’ 1.5”.
- Eco-V (Vinyl) 20’ 1.5”.
- Neoprene 17’ 1.5”.
- Neoprene 20’ 1.5”.

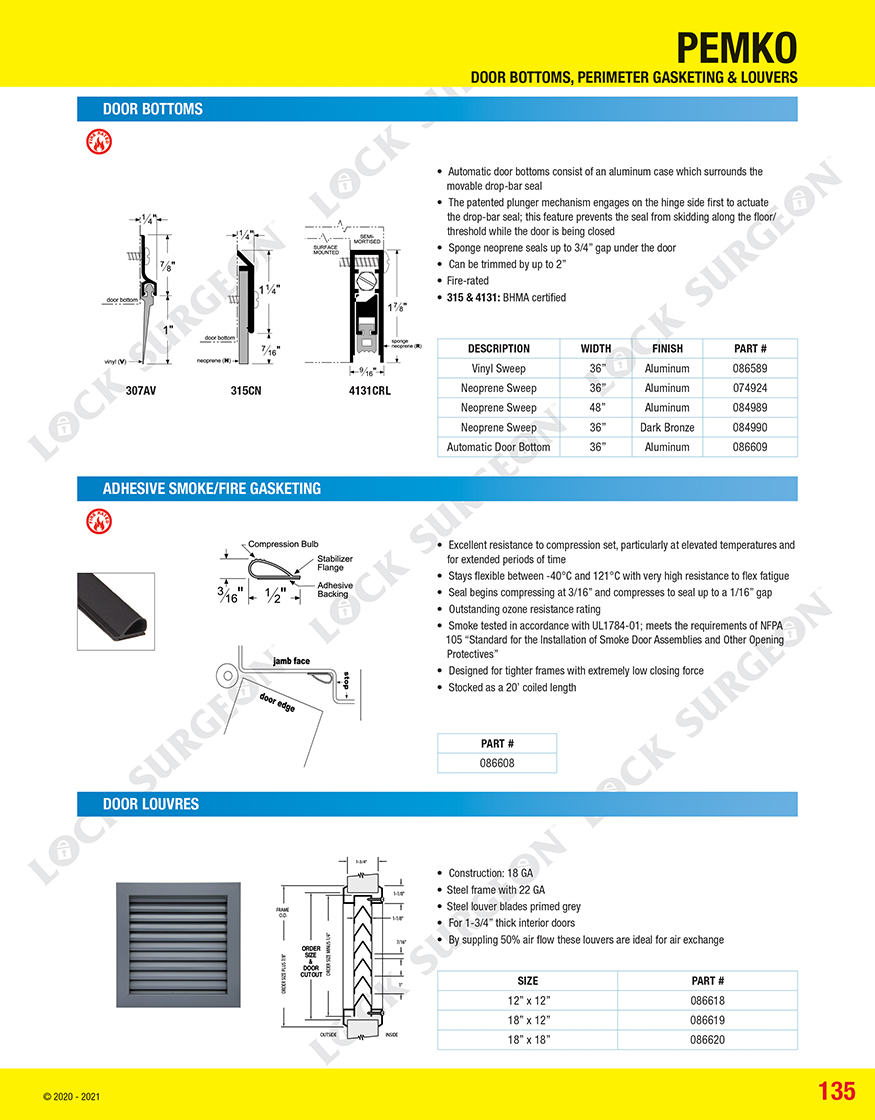

DOOR BOTTOMS
- Automatic door bottoms consist of an aluminum case which surrounds the movable drop-bar seal.
- The patented plunger mechanism engages on the hinge side first to actuate the drop-bar seal; this feature prevents the seal from skidding along the floor threshold while the door is being closed.
- Sponge neoprene seals up to 3/4” gap under the door.
- Can be trimmed by up to 2”.
- Fire-rated.
- 315 & 4131: BHMA certified.
- Vinyl Sweep 36”.
- Neoprene Sweep 36”.
- Neoprene Sweep 48”.
- Automatic Door Bottom 36”.

ADHESIVE SMOKE/FIRE GASKETING
- Excellent resistance to compression set, particularly at elevated temperatures and for extended periods of time.
- Stays flexible between -40°C and 121°C with very high resistance to flex fatigue.
- Seal begins compressing at 3/16” and compresses to seal up to a 1/16” gap.
- Outstanding ozone resistance rating.
- Smoke tested in accordance with UL1784-01; meets the requirements of NFPA 105 “Standard for the Installation of Smoke Door Assemblies and Other Opening Protectives”.
- Designed for tighter frames with extremely low closing force.
- Stocked as a 20’ coiled length.

DOOR LOUVRES
- Construction: 18 GA.
- Steel frame with 22 GA.
- Steel louver blades primed grey.
- For 1-3/4” thick interior doors.
- By suppling 50% air flow these louvers are ideal for air exchange.
- 12” x 12”.
- 18” x 12”.
- 18” x 18”.

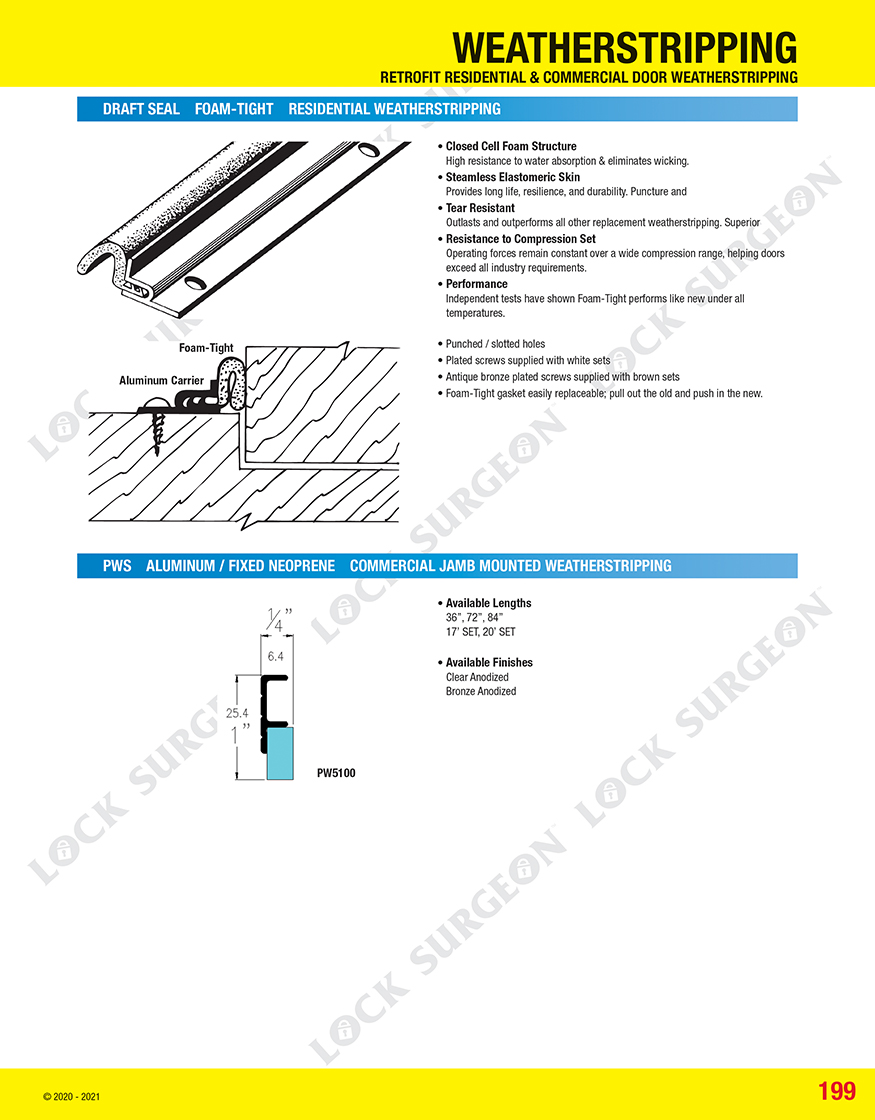

DRAFT SEAL FOAM-TIGHT RESIDENTIAL WEATHERSTRIPPING
CLOSED CELL FOAM STRUCTURE
- High resistance to water absorption & eliminates wicking.

STEAMLESS ELASTOMERIC SKIN
- Provides long life, resilience, durability and puncture/tear resistance.

OUTLASTS AND OUTPERFORMS ALL OTHER REPLACEMENT WEATHERSTRIPPING
- Superior resistance to compression set.

OPERATING FORCES REMAIN CONSTANT
- Tested over a wide compression range, helping doors exceed all industry requirements.

PERFORMANCE
- Independent tests have shown Foam-Tight performs like new under all temperatures.
- Punched / slotted holes.
- Plated screws supplied with white sets.
- Antique bronze plated screws supplied with brown sets.
- Foam-Tight gasket easily replaceable; pull out the old and push in the new.

PWS ALUMINUM / FIXED NEOPRENE COMMERCIAL JAMB MOUNTED WEATHERSTRIPPING
AVAILABLE LENGTHS
36”, 72”, 84”.
17’ SET, 20’ SET.

AVAILABLE FINISHES
- Clear Anodized.
- Bronze Anodized.

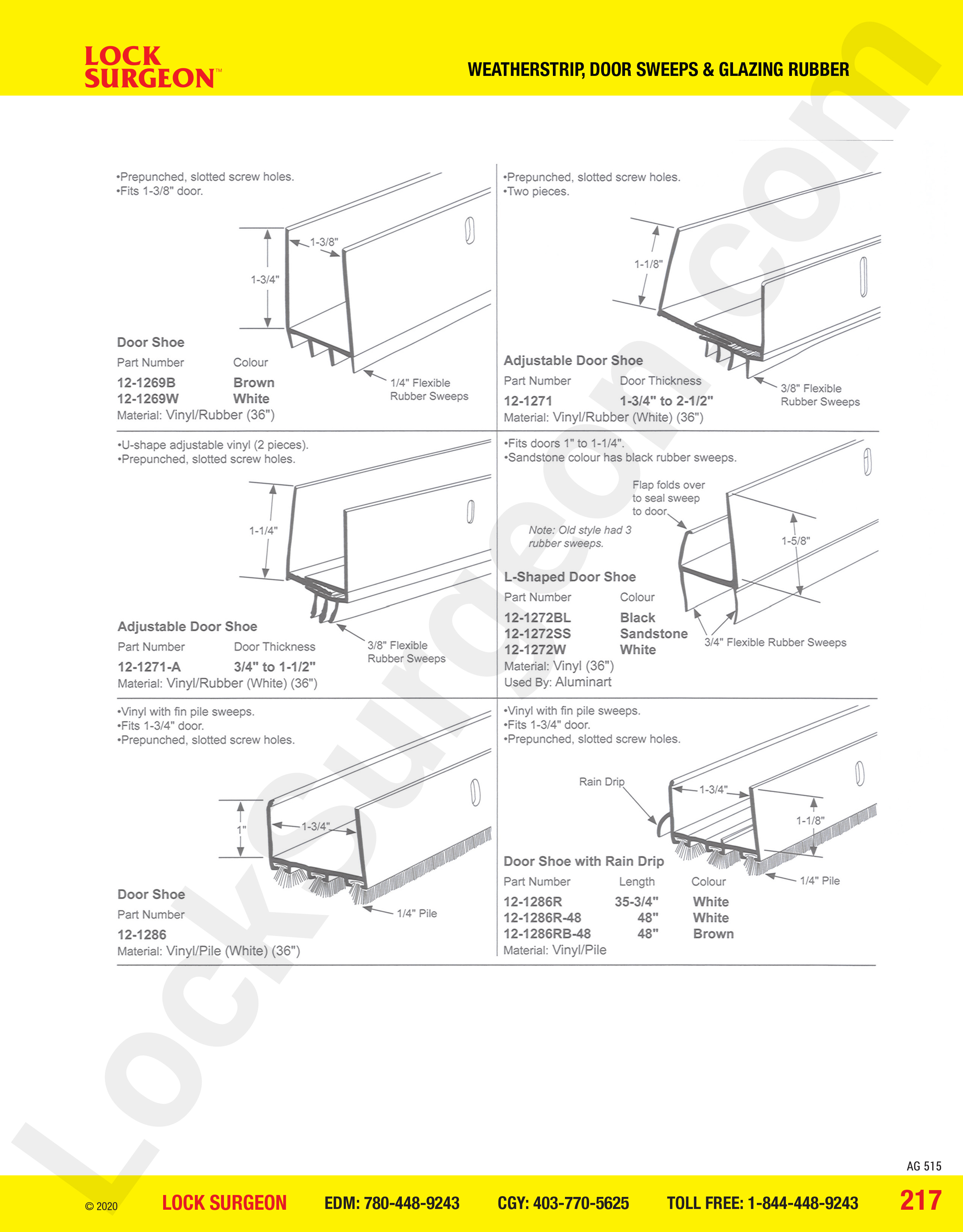

WEATHERSTRIP, DOOR SWEEPS & GLAZING RUBBER:
Door Shoe:
- Prepunched, slotted screw holes.
- Fits 1-3/8" door.
- 1/4" flexible rubber sweeps.
Part Number:
- 12-1269B (brown).
- 12-1269W (white).
Material:
- Vinyl/Rubber (36").

Adjustable Door shoe:
- Prepunched, slotted screw holes.
- Two pieces.
- 3/8" flexible rubber sweeps.
Part Number:
- 12-1271 for door thickness 1-3/4" to 2-1/2".
Material:
- Vinyl/Rubber (white)(36").

Adjustable Door Shoe:
- U-shaped adjustable vinyl (2 pieces).
- Prepunched, slotted screw holes.
- 3/8" flexible rubber sweeps.
Part Number:
- 12-1271-A for door thickness 3/4" to 1-1/2".
Material:
- Vinyl/Rubber (white)(36").

L-Shaped Door Shoe:
- Fits doors 1" to 1-1/4".
- Sandstone colour has black rubber sweeps.
- Flap folds over to seal sweep to door.
- Note: Old style had 3 rubber sweeps.
- 3/4" flexible rubber sweeps.
Part Number:
- 12-1272BL (black).
- 12-1272SS (Sandstone).
- 12-1272W (white).
Material:
- Vinyl (36") Used by Aluminart.

Door Shoe:
- Vinyl with fin pile sweeps.
- Fits 1-3/4" doors.
- Prepunched, slotted screw holes.
- 1/4" pile.
Part Number:
- 12-1286.
Material:
- Vinyl/Pile (white)(36").

Door Shoe With Rain Drip:
- Vinyl with fin pile sweeps.
- Fits 1-3/4" doors.
- Prepunched, slotted screw holes.
- 1/4" pile.
Part Number:
- 12-1286R (white) 35-3/4" length.
- 12-1286R-48 (white) 48" length.
- 12-1286RB-48 (brown) 48" length.
Material:
- Vinyl/Pile.

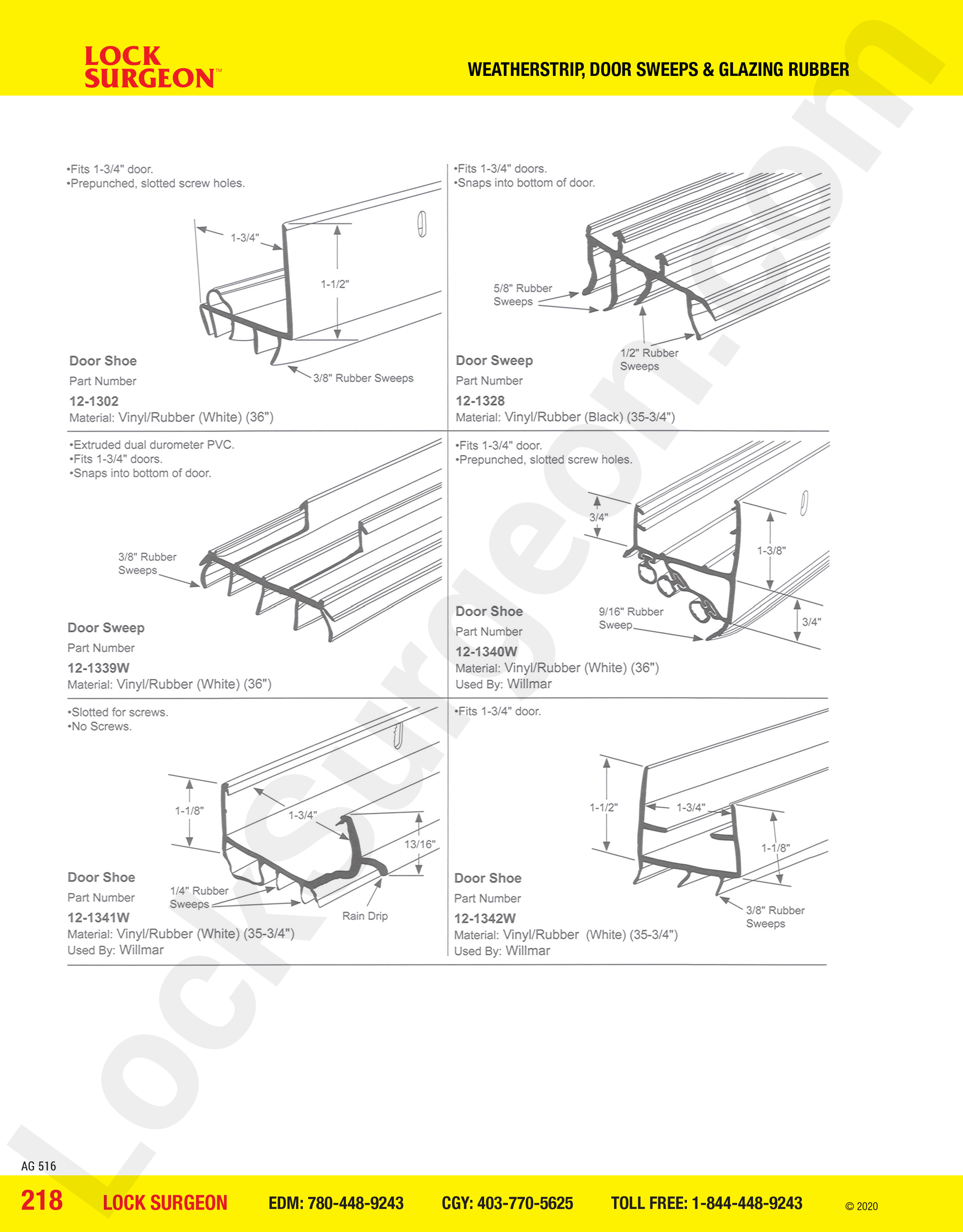

DOOR SWEEPS, SHOES & DOOR BOTTOM WEATHERSEALS:
Door Shoe:
- Fits 1-3/4" doors.
- Prepunched, slotted screw holes.
3/8" rubber sweeps.
Part Number:
- 12-1302.
Material:
- Vinyl/Rubber (white)(36").

Door Sweep:
- Fits 1-3/4" doors.
- Snaps into bottom of door.
- 1/2" rubber sweeps & 5/8" rubber sweeps.
Part Number:
- 12-1328.
Material:
- Vinyl/Rubber (black)(35-3/4").

Door Sweep:
- Extruded dual durometer PVC.
- Fits 1-3/4" doors.
- Snaps into bottom of door.
- 3/8" rubber sweeps.
Part Number:
- 12-1339W.
Material:
- Vinyl/Rubber (white)(36").

Door Shoe:
- Fits 1-3/4" door.
- Prepunched, slotted screw holes.
- 9/16" rubber sweep.
Part Number:
- 12-1340W.
Material:
- Vinyl/Rubber (black)(36"). Used by Willmar.

Door Shoe:
- Slotted for screws.
- No screws.
- 1/4" rubber sweeps.
- Rain drip.
Part Number:
- 12-1341W.
Material:
- Vinyl/Rubber (white)(35-3/4"). Used by Willmar.

Door Shoe:
- Fits 1-3/4" door.
- 3/8" rubber sweeps.
Part Number:
- 12-1342W.
Material:
- Vinyl/Rubber (white)(35-3/4"). Used by Willmar.

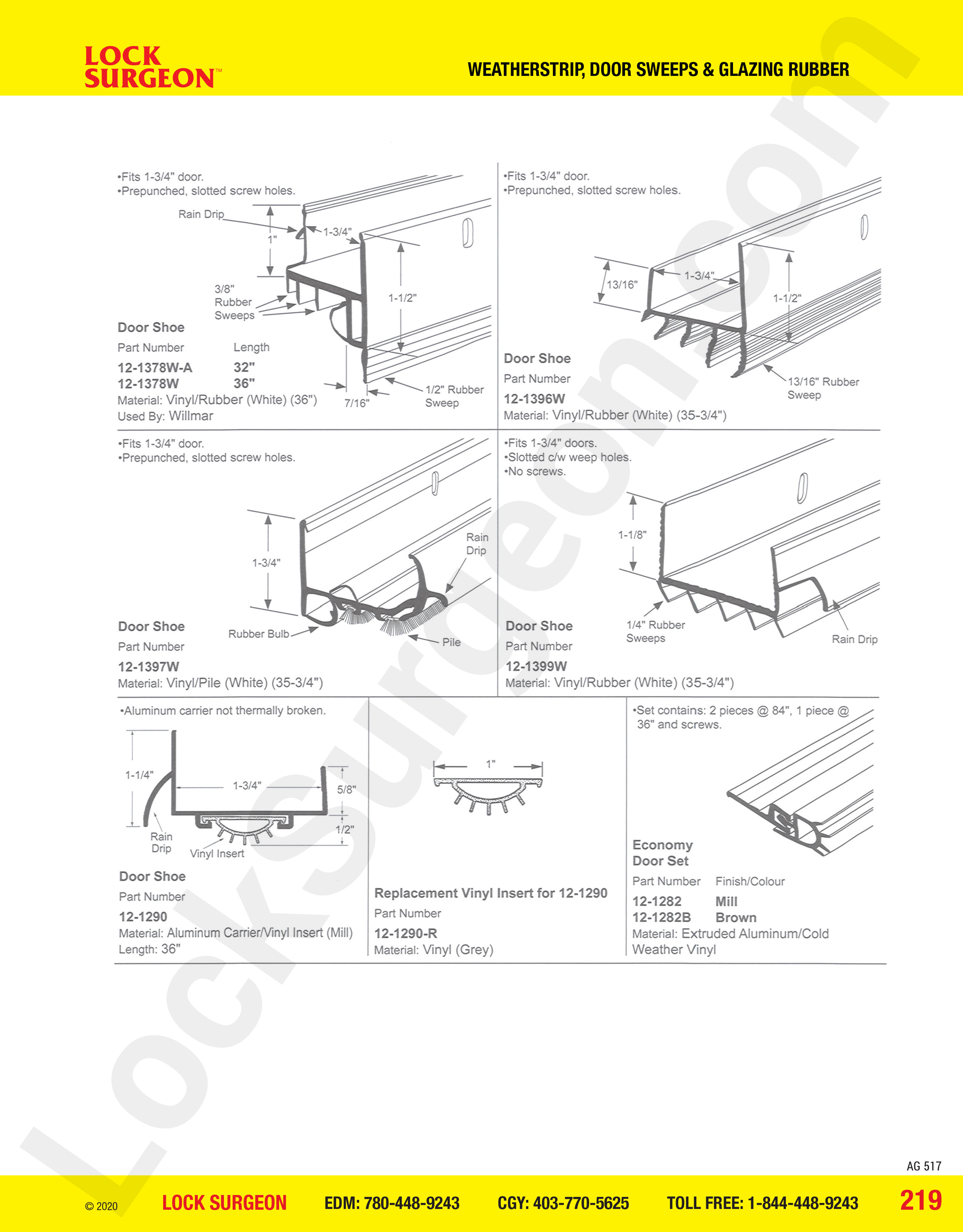

BOTTOM OF DOOR WEATHERSEAL, SWEEPS, SHOES & REPLACMENT INSERTS:
Door Shoe:
- Fits 1-3/4" doors.
- Prepunched, slotted screw holes.
- Rain Drip.
- 3/8" rubber sweep.
- 1/2" rubber sweep.
Part Number:
- 12-1378W-A (32").
- 12-1378W (36").
Material:
- Vinyl/Rubber (white)(36"). Used by Willmar.

Door Shoe:
- Fits 1-3/4" doors.
- Prepunched, slotted screw holes.
- 13/16" rubber sweep.
Part Number:
- 12-1396W.
Material:
- Vinyl/Rubber (white)(35-3/4").

Door Shoe:
- Fits 1-3/4" doors.
- Prepunched, slotted screw holes.
- Rubber Bulb.
Part Number:
- 12-1397W.
Material:
- Vinyl/Pile (white)(35-3/4").

Door Shoe:
- Fits 1-3/4" doors.
- Slotted comes with weep holes.
- No screws.
- 1/4" rubber sweeps.
- Rain drip.
Part Number:
- 12-1399W.
Material:
- Vinyl/Rubber (white)(35-3/4").

Door Shoe:
- Aluminum carrier not thermally broken.
- Rain drip.
- Vinyl insert.
Part Number:
- 12-1290.
Material:
- Aluminum carrier/Vinyl insert (mill) (36").

Replacement Vinyl Insert for 12-1290:
Part Number:
- 12-1290-R.
Material:
- Vinyl (grey).

Economy Door Set:
- Set contains 2 pieces at 84", 1 piece at 36" and screws.
Part Number:
- 12-1282 (mill).
- 12-1282B (brown).
Material:
- Extruded aluminum/Cold weather vinyl.

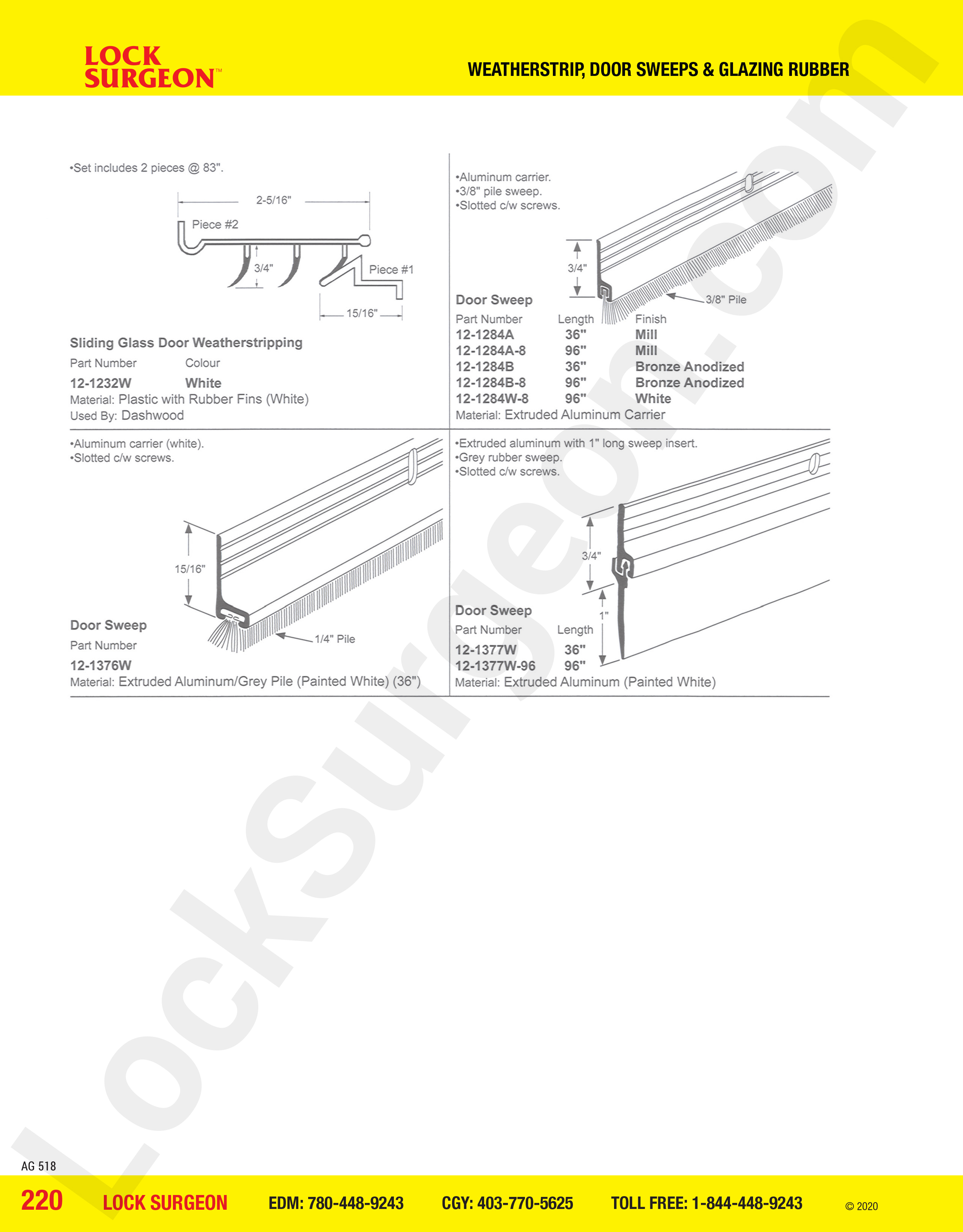

SLIDING GLASS DOOR REPLACEMENT SWEEPS & WEATHERSTRIP:
Sliding Glass Door Weatherstripping:
- Set includes 2 pieces at 83".
Part Number:
- 12-1232W (white).
Material:
- Plastic with rubber fins (white). Used by Dashwood.

Door Sweep:
- Aluminum carrier.
- 3/8" pile sweep.
- Slotted comes with screws.
Part Number:
- 12-1284A (36") (mill).
- 12-1284A-8 (96") (mill).
- 12-1284B (36") (bronze anodized).
- 12-1284B-8 (96") (bronze anodized).
- 12-1284W-8 (96") (white).
Material:
- Extruded aluminum carrier.

Door Sweep:
- Aluminum carrier (white).
- Slotted comes with screws.
- 1/4" pile.
Part Number:
- 12-1376W.
Material:
- Extruded aluminum/Grey pile (painted white) (36").

Door Sweep:
- Extruded aluminum with 1" long sweep insert.
- Grey rubber sweep.
- Slotted comes with screws.
Part Number:
- 12-1377W (36").
- 12-1377W-96 (96").
Material:
- Extruded aluminum (painted white).

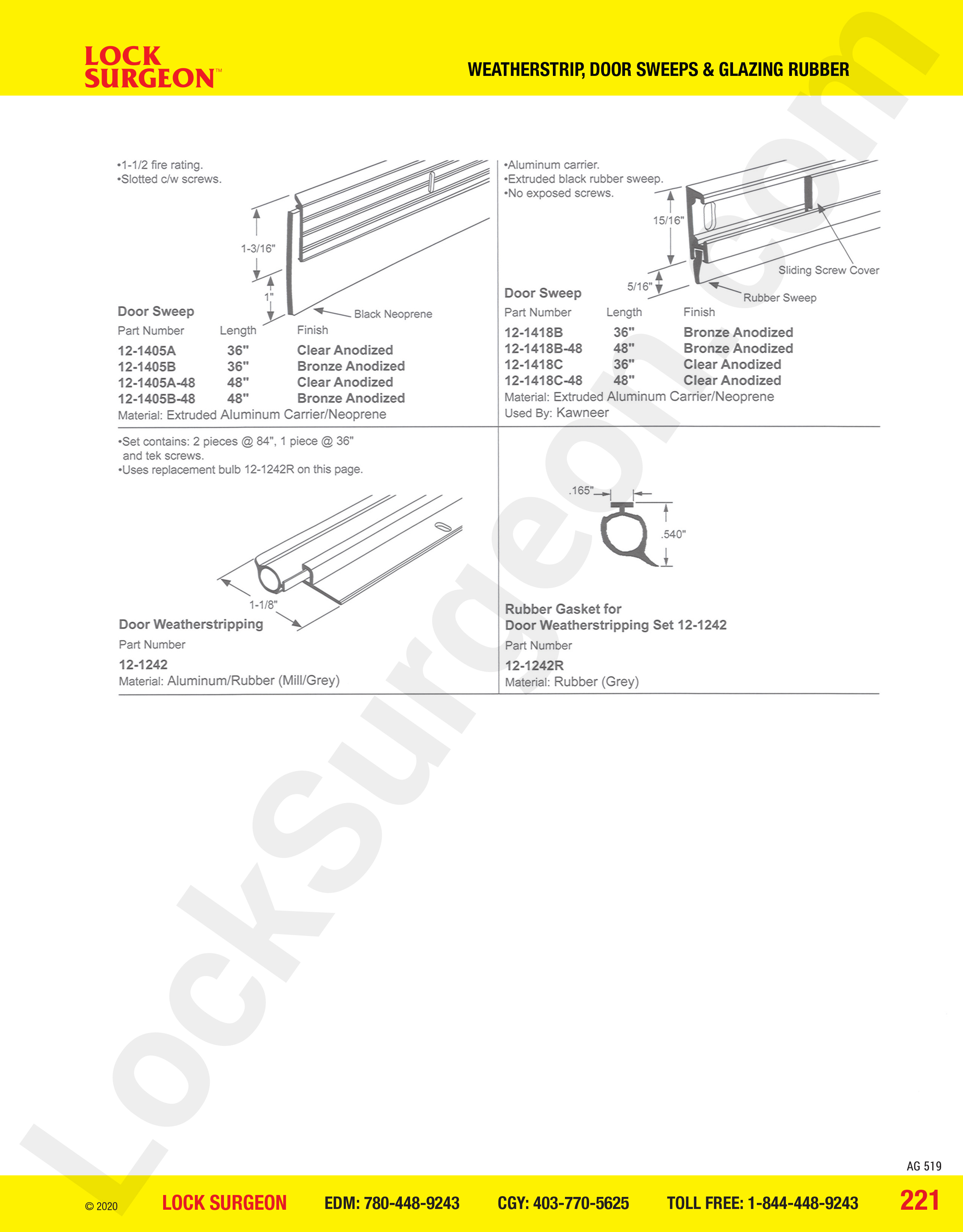

NEW DOOR SWEEP AND RUBBER GASKETS:
Door Sweep:
- 1-1/2" fire rating.
- Slotted comes with screws.
- Black neoprene.
Part Number:
- 12-1405A (36") (clear anodized).
- 12-1405B (36") (bronze anodized).
- 12-1405A-48 (48") (clear anodized).
- 12-1405B-48 (48") (bronze anodized).
Material:
- Extruded aluminum carrier/neoprene.

Door Sweep:
- Aluminum carrier.
- Extruded black rubber sweep.
- No exposed screws.
- Sliding screw cover.
- Rubber sweep.
Part Number:
- 12-1418B (36") (bronze anodized).
- 12-1418B-48 (48") (bronze anodized).
- 12-1418C (36") (clear anodized).
- 12-1418C-48 (48") (clear anodized).
Material:
- Extruded aluminum carrier/neoprene. Used by Kawneer.

Door Weatherstripping:
- Set contains 2 pieces at 84", 1 piece at 36" and tek screws.
- Black neoprene.
- Uses replacement bulb 12-1242R on this page.
Part Number:
- 12-1242.
Material:
- Aluminum/Rubber (mill/grey).

Rubber Gasket for Door Weathersripping Set 12-1242:
Part Number:
- 12-1242R.
Material:
- Rubber (grey).

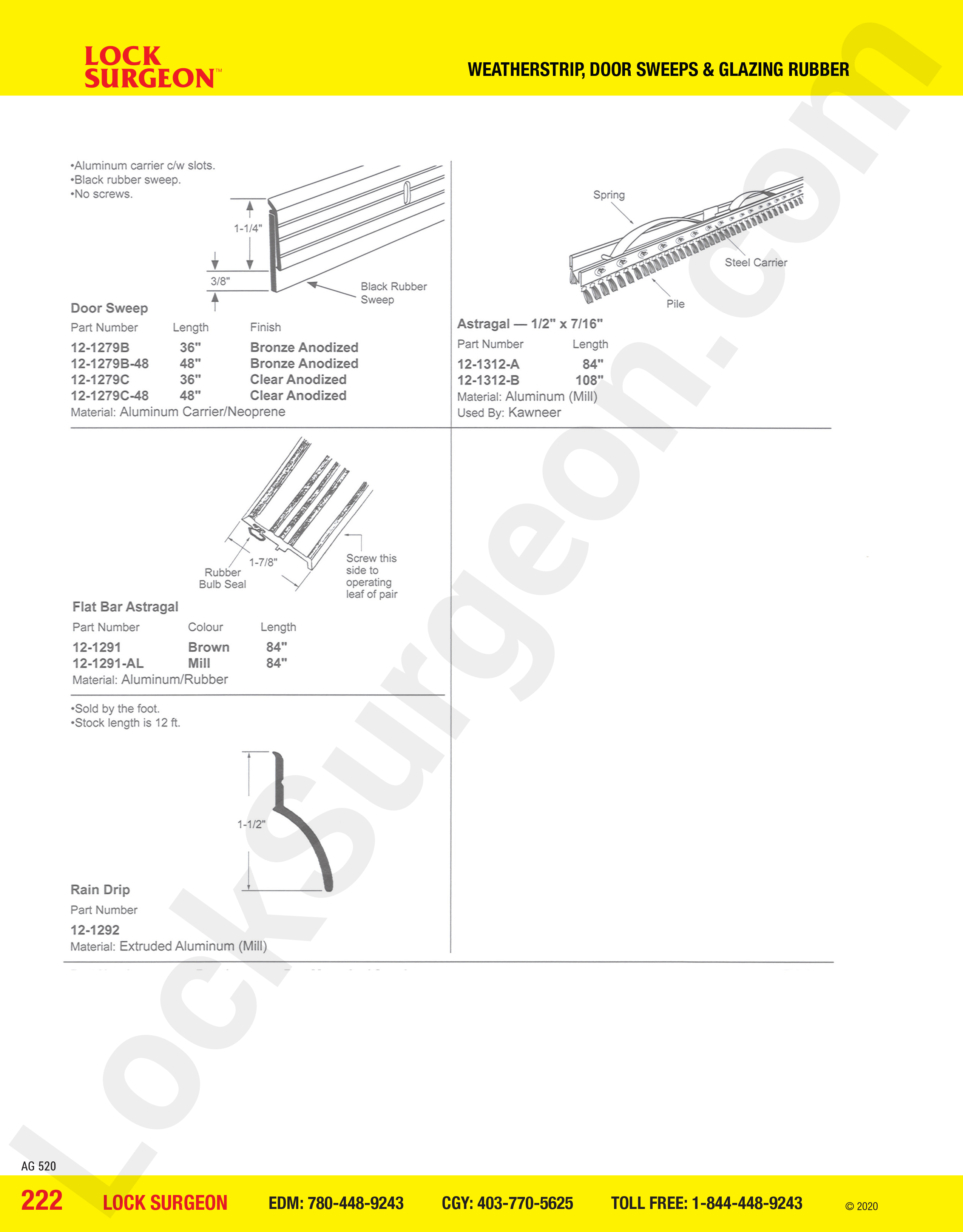

Door Sweep:
- Aluminum carrier comes with slots.
- Black rubber sweep.
- No screws.
Part Number:
- 12-1279B (36") (bronze anodized).
- 12-1279B-48 (48") (bronze anodized).
- 12-1279C (36") (clear anodized).
- 12-1279C-48 (48") (clear anodized).
Material:
- Aluminum carrier/neoprene.

Astragal - 1/2" x 7/16":
Part Number:
- 12-1312-A (84").
- 12-1312-B (108").
Material:
- Aluminum (mill). Used by Kawneer.

Flat Bar Astragal:
- Rubber bulb seal.
- Screw side to operating leaf of pair.
Part Number:
- 12-1291 (brown) (84").
- 12-1291-AL (mill) (84").
Material:
- Aluminum/Rubber.

Rain Drip:
- Sold by the foot.
- Stock length is 12 feet.
Part Number:
- 12-1292.
Material:
- Extruded aluminum (mill).

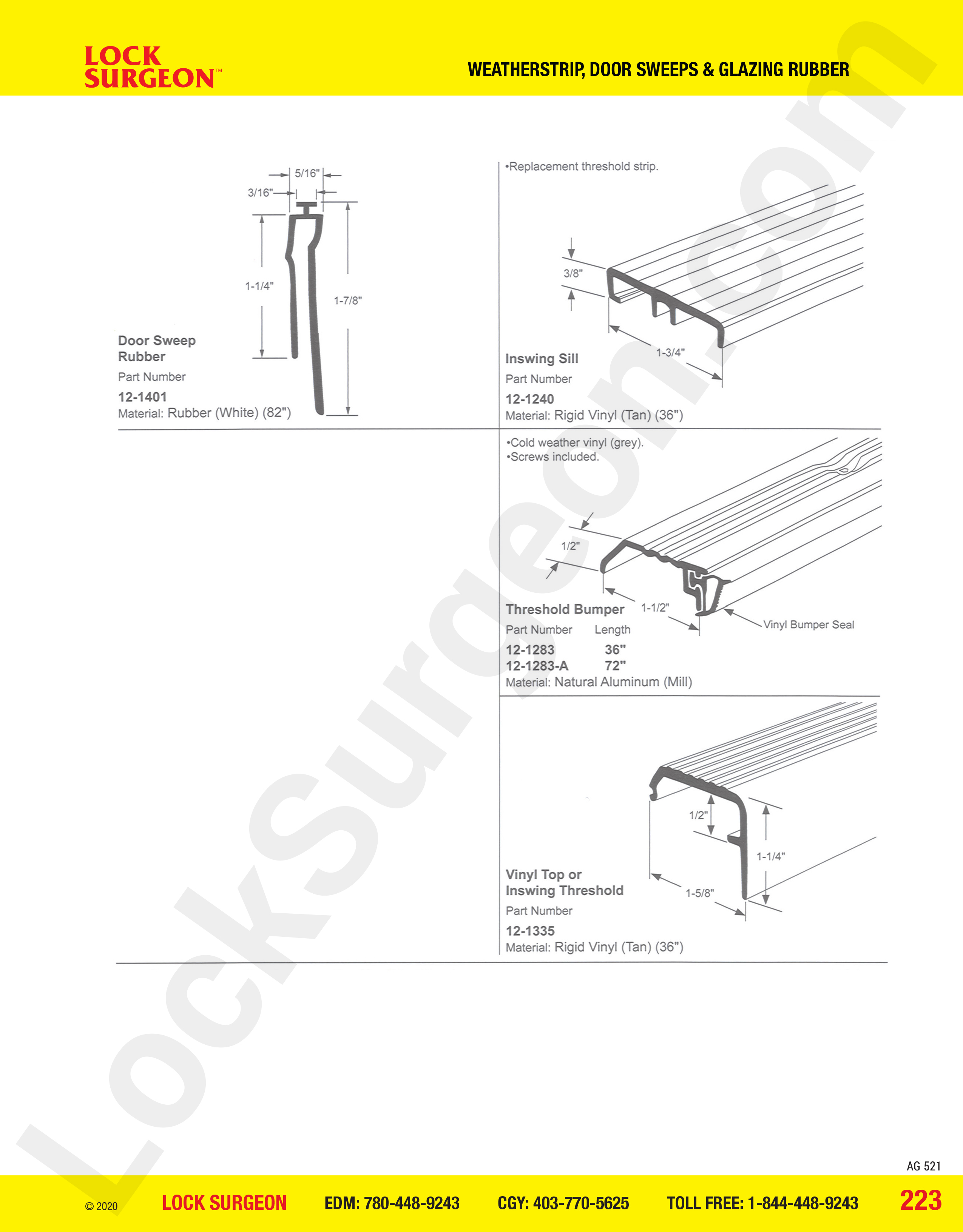

DOOR THRESHOLD, SWEEPS, SILLS AND BUMPERS:
Door Sweep Rubber:
Part Number:
- 12-1401.
Material:
- Rubber (white) (82").

Inswing Sill:
- Replacement threshold strip.
Part Number:
- 12-1240.
Material:
- Rigid vinyl (tan) (36").

Threshold Bumper:
- Cold weather vinyl (grey).
- Screws included.
- Vinyl bumper seal.
Part Number:
- 12-1283 (36").
- 12-1283-A (72").
Material:
- Natural aluminum (mill).

Vinyl Top or Inswing Threshold:
Part Number:
- 12-1335.
Material:
- Rigid vinyl (tan) (36").

FOAM-TILE® RETROFIT DOOR WEATHERSTRIP & WEATHERSEAL:

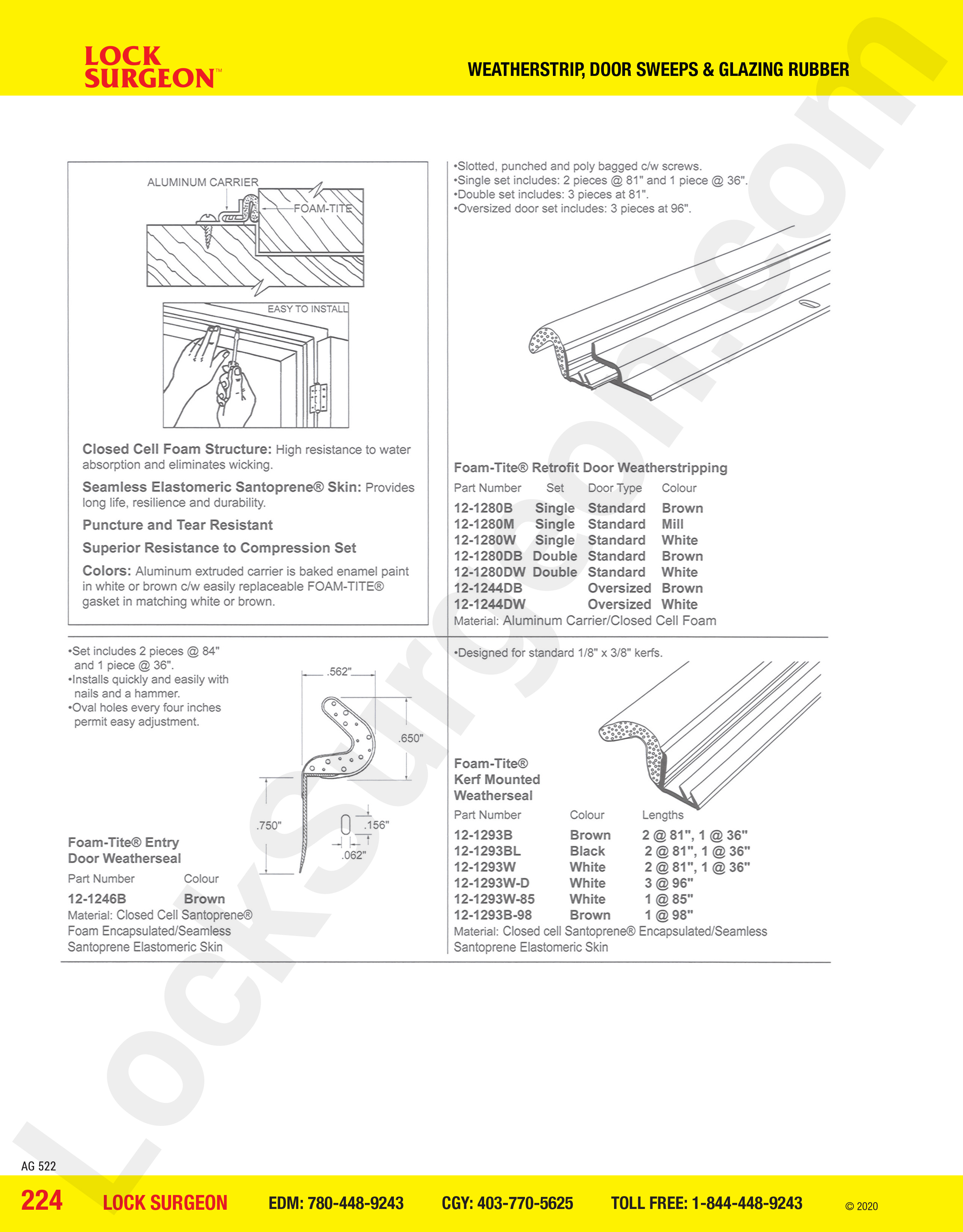

- Aluminum carrier.
- Closed cell foam structure: High resistance to water absorption and eliminates wicking.
- Seamless elastomeric Santoprene® skin: Provides long life, resilience and durability.
- Puncture and tear resistant.
- Superior resistance to compression set.
- Colours: Aluminum extruded carrier is baked enamel paint in white or brown, comes with easily replaceable FOAM-TITE® gasket in matching white or brown.

Foam-Tite® Retrofit Door Weatherstripping:
- Slotted, punched and poly-bagged, comes with screws.
- Single set includes 2 pieces at 81" and 1 piece at 36".
- Double set includes 3 pieces at 81".
- Oversized door set includes 3 pieces at 96".
Part Number:
- 12-1280B (single) (standard door) (brown).
- 12-1280M (single) (standard door) (mill).
- 12-1280W (single) (standard door) (white).
- 12-1280DB (double) (standard door) (brown).
- 12-1280DW (double) (standard door) (white).
- 12-1244DB (oversized door) (brown).
- 12-1244DW (oversized door) (white).
Material:
- Aluminum carrier/Closed cell foam.

Foam-Tite® Entry Door Weatherseal:
- Set includes 2 pieces at 84" and 1 piece at 36".
- Installs quickly and easily with nails and a hammer.
- Oval holes every four inches permit easy adjustment.
Part Number:
- 12-1246B (brown).
Material:
- Closed cell Santoprene® foam encapsulated/seamless santoprene® elastomeric skin.

Foam-Tite® Kerf Mounted Weatherseal:
- Designed for standard 1/8" x 3/8" kerfs.
Part Number:
- 12-1293B (brown) (2 at 81", 1 at 36").
- 12-1293BL (black) (2 at 81", 1 at 36").
- 12-1293W (white) (2 at 81", 1 at 36").
- 12-1293W-D (white) (3 at 96").
- 12-1293W-85 (white) (1 at 85").
- 12-1293B-98 (brown) (1 at 98").
Material:
- Closed cell Santoprene® encapsulated/seamless Santoprene® elastomeric skin.

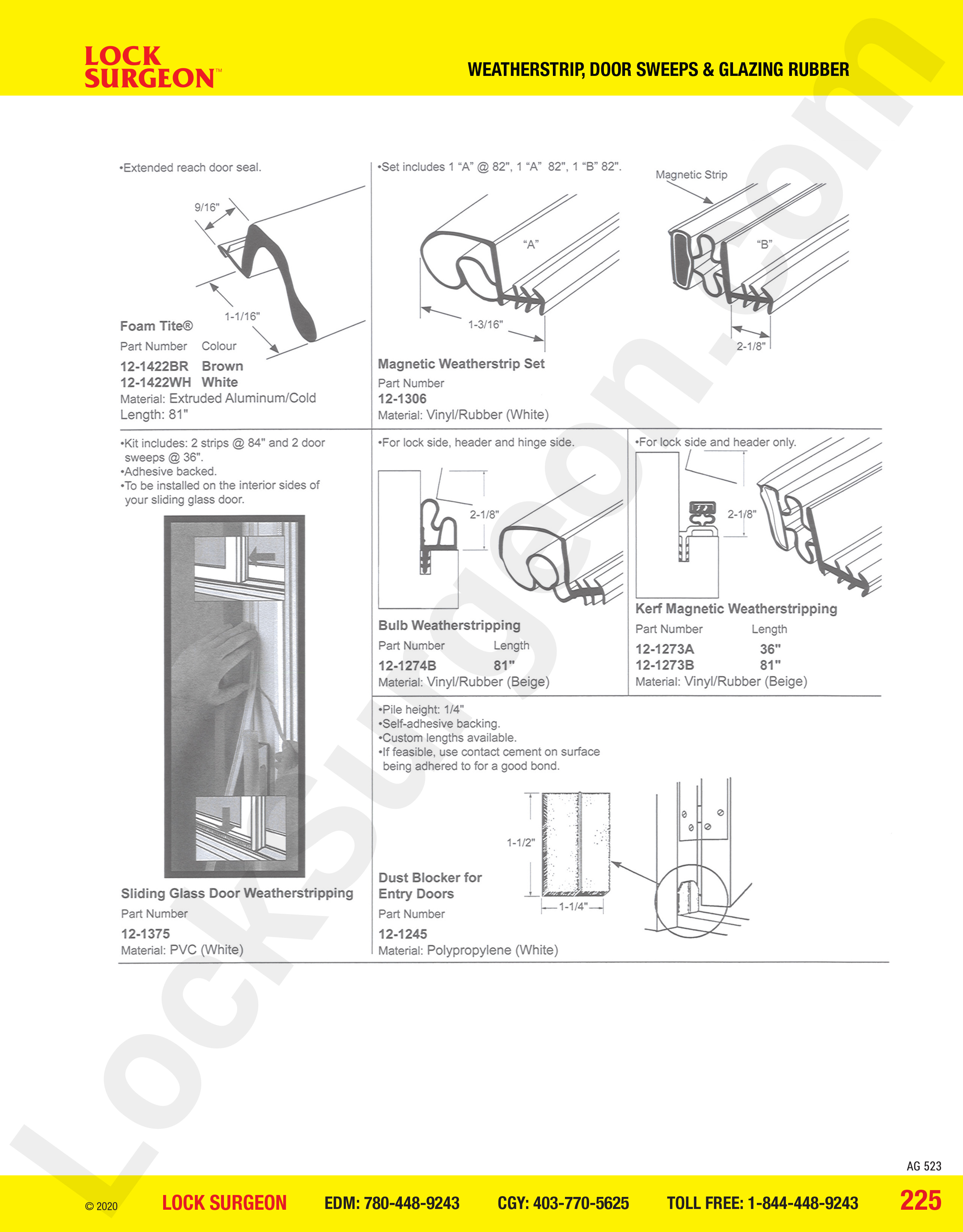

KERF MAGNETIC WEATHERSTRIP, FOAM-TITE®, SLIDING GLASS DOOR WEATHERSTRIP, BULB WEATHERSTRIP, DUST BLOCKERS:
Foam-tite®:
- Extended reach door seal.
Part Number:
- 12-1422BR (brown).
- 12-1422WH (white).
Material:
- Extruded aluminum/Cold (81")

Magnetic Weatherstrip Set:
- Set includes 1 "A" at 82", 1 "A" 82" and 1 "B" at 82".
Part Number:
- 12-1306.
Material:
- Vinyl/Rubber (white).

Sliding Glass Door Weatherstripping:
- Kit includes 2 strips at 84" and 2 door sweeps at 36".
- Adhesive backed.
- To be installed on the interior sides of your sliding glass door.
Part Number:
- 12-1375.
Material:
- PVC (white).

Bulb Weatherstripping:
- For lock side, header and hinge side.
Part Number:
- 12-1274B (81").
Material:
- Vinyl/Rubber (beige).

Kerf Magnetic Weatherstripping:
- For lock side and header only.
Part Number:
- 12-1273A (36").
- 12-1273B (81").
Material:
- Vinyl/Rubber (beige).

Dust Blocker for Entry Doors:
- Pile height 1/4".
- Self-adhesive backing.
- Custom lengths available.
- If feasible, use contact cement on surface being adhered to for a good bond.
Part Number:
- 12-1245.
Material:
- Polypropylene (white).

PILE WEATHERSTRIP FOR COMMERCIAL DOORS:
Pile Weatherstrip - Polypropylene (pile/backing) (grey):
- Phone for full roll pricing; full rolls vary from 1500 to 5000 feet.
Part Number:
- 12-1250 (pile height .130").
- 12-1265 (pile height .140").
- 12-1249 (pile height .190").
- 12-1251 (pile height .230").
- 12-1254W (white) (pile height .250").
- 12-1252 (pile height .280").
- 12-1253 (pile height .320").
- 12-1256 (pile height .440").
- 12-1260 (grey) (pile height .150").
- 12-1259 (grey) (pile height .190").
- 12-1261 (grey) (pile height .230").
- 12-1262 (grey) (pile height .300").
- 12-1263 (grey) (pile height .330").
- 12-1266 (grey) (pile height .400").
- 12-1297 (grey) (pile height .460").

Commercial Door Weatherstripping - Polypropylene (pile/backing) (grey):
- On surface being adhered to, if possible, rough up surface with sandpaper and apply coat of contact cement for maximum adhesion of weatherstrip**.
Part Number:
- 12-1275 (backing width .435") (pile height .370") (slide in).
- 12-1275A** (backing width .435") (pile height .370") (self-adhesive).
- 12-1275A-BL (black) (backing width .435") (pile height .370") (self-adhesive).
- 12-1270 (backing width .350") (pile height .350") (slide in).
- 12-1268** (backing width 1.750") (pile height .315") (self-adhesive).

Helpful Tip:
- Typical T-slot dimensions for .187" backed weatherstripping.
- Typical T-slot dimensions for .270" backed weatherstripping.

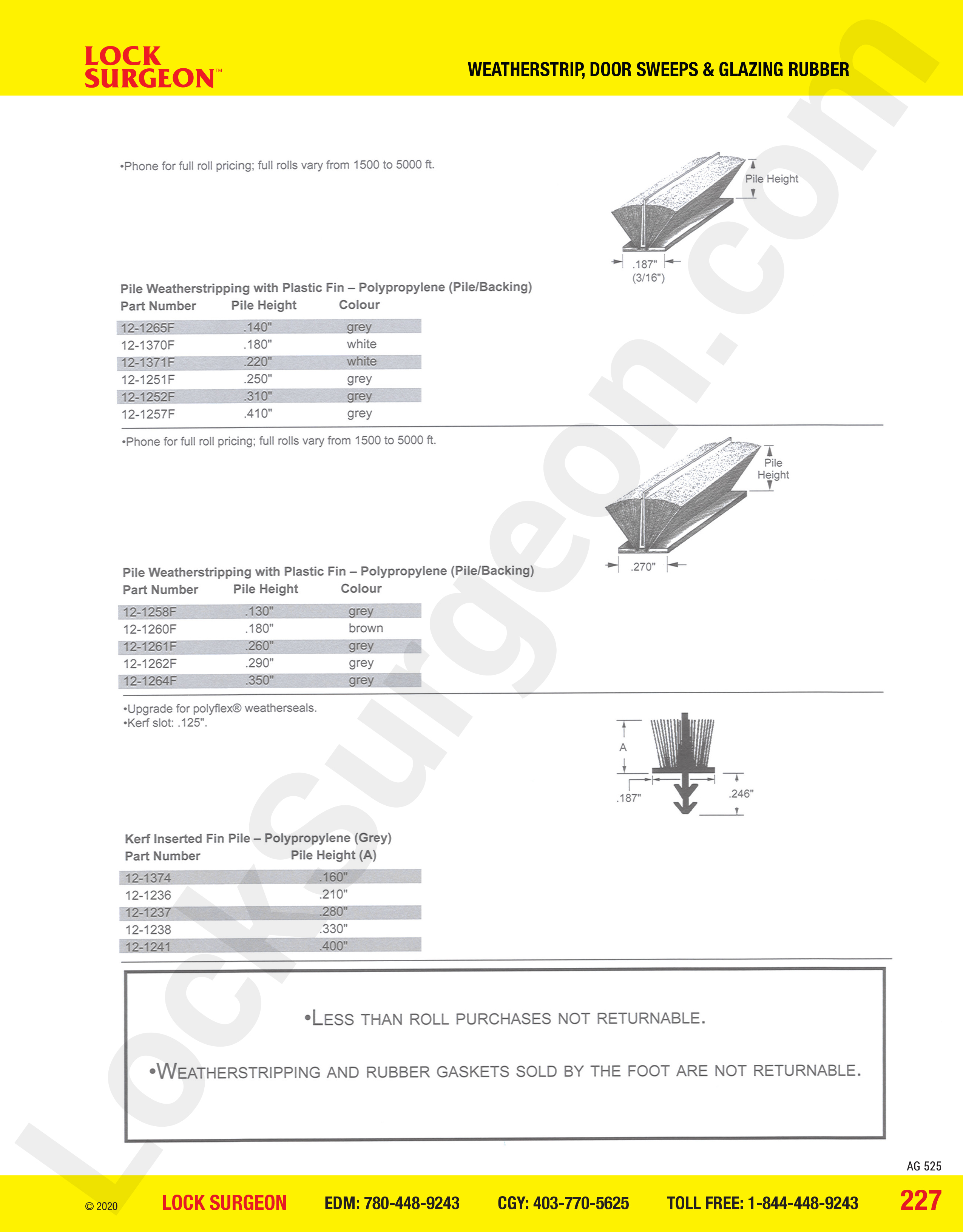

PILE WEATHERSTRIP WITH PLASTIC FIN, KERF INSERTED FIN PILE, POLYPROPYLENE:
Pile Weatherstripping With Plastic Fin - Polypropylene (pile/backing):
- Phone for full roll pricing: full rolls vary from 1500 to 5000 feet.
Part Number:
- 12-1265F (pile height .140") (grey).
- 12-1370F (pile height .180") (white).
- 12-1371F (pile height .220") (white).
- 12-1251F (pile height .250") (grey).
- 12-1252F (pile height .310") (grey).
- 12-1257F (pile height .410") (grey).

Pile Weatherstripping With Plastic Fin - Polypropylene (pile/backing):
- Phone for full roll pricing: full rolls vary from 1500 to 5000 feet.
Part Number:
- 12-1258F (pile height .130") (grey).
- 12-1260F (pile height .180") (brown).
- 12-1261F (pile height .260") (grey).
- 12-1262F (pile height .290") (grey).
- 12-1264F (pile height .350") (grey).

Kerf Inserted Fin Pile - Polypropylene (grey):
- Upgrade for polyflex® weatherseals.
- Kerf slot: .125".
Part Number:
- 12-1374 (pile height .160").
- 12-1236 (pile height .210").
- 12-1237 (pile height .280").
- 12-1238 (pile height .330").
- 12-1241 (pile height .400").

* Less than roll purchases not returnable.
* Weatherstrip and rubber gaskets sold by the foot are not returnable.

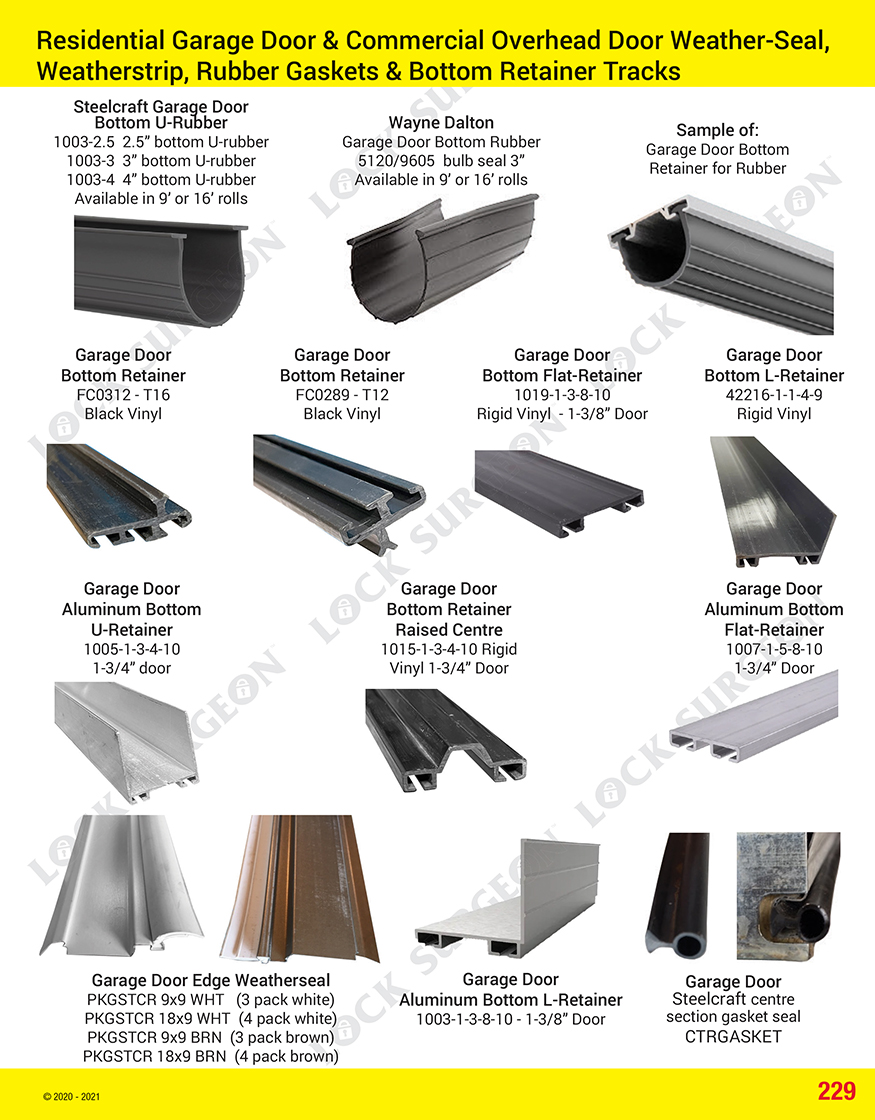

BOTTOM RUBBER:
- SteelCraft Garage Door Bottom U-Rubber:
1003-2.5 2.5" bottom U-Rubber.
1003-3 3" bottom U-Rubber.
1003-4 4" bottom U-Rubber.
Available in 9' or 16' rolls.

Wayne Dalton - Garage door bottom rubber - 5120/9605 bulb seal 3".
Available in 9' or 16' rolls.

Sample of Garage door bottom retainer for rubber.

BOTTOM RETAINER:
- Garage Door Bottom Retainer:
FC0312-T16 Black vinyl.

- Garage Door Bottom Retainer:
FC0289-T12 Black vinyl.

- Garage Door Bottom Flat-Retainer:
1019-1-3-8-10 Rigid vinyl - 1-3/8" door.
- Garage Door Bottom L-Retainer:
42216-1-1-4-9 Rigid vinyl.

- Garage Door Aluminum Bottom U-Retainer:
1005-1-3-4-10 1-3/4" door.

- Garage Door Bottom Retainer Raised Centre:
1015-1-3-4-10 Rigid vinyl 1-3/4" door.

- Garage Door Aluminum Bottom Flat-Retainer
1007-1-5-8-10 1-3/4" door.

- Garage Door Aluminum Bottom L-Retainer
1003-1-3-8-10 1-3/8" door.

GARAGE DOOR EDGE WEATHER SEAL:
- PKGSTCR 9x9 WHT (3 pack white).
- PKGSTCR 18x9 WHT (4 pack white).
- PKGSTCR 9x9 BRN (3 pack brown).
- PKGSTCR 18x9 BRN (4 pack brown).

RUBBER GASKET:
- Garage Door Gasket
CTRGASKET SteelCraft centre section gasket seal.

If you need installation or repair services, one of our affiliate companies below will be glad to help

Installation or repair services provided by:

Click any one of the below logos for direct access to one of our service repair and installation providers.

Not all areas have local mobile service. Service call travel charges may apply.
